NSN 5620-00-297-5378 ASTM C90, ASTMC90, SSC621
Product Details | HOLLOW CONCRETE MASONRY UNIT
5620-00-297-5378 A precast concrete block, basically rectangular, with one or more cells extending vertically through the block. It is used in the construction of masonry walls.
Part Alternates: ASTM C90, ASTMC90, SSC621, SS-C-621, 5620-00-297-5378, 00-297-5378, 5620002975378, 002975378
Construction and Building Materials | Tile, Brick and Block
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 JAN 1963 | 00-297-5378 | 07621 ( CONCRETE MASONRY UNIT, HOLLOW ) |

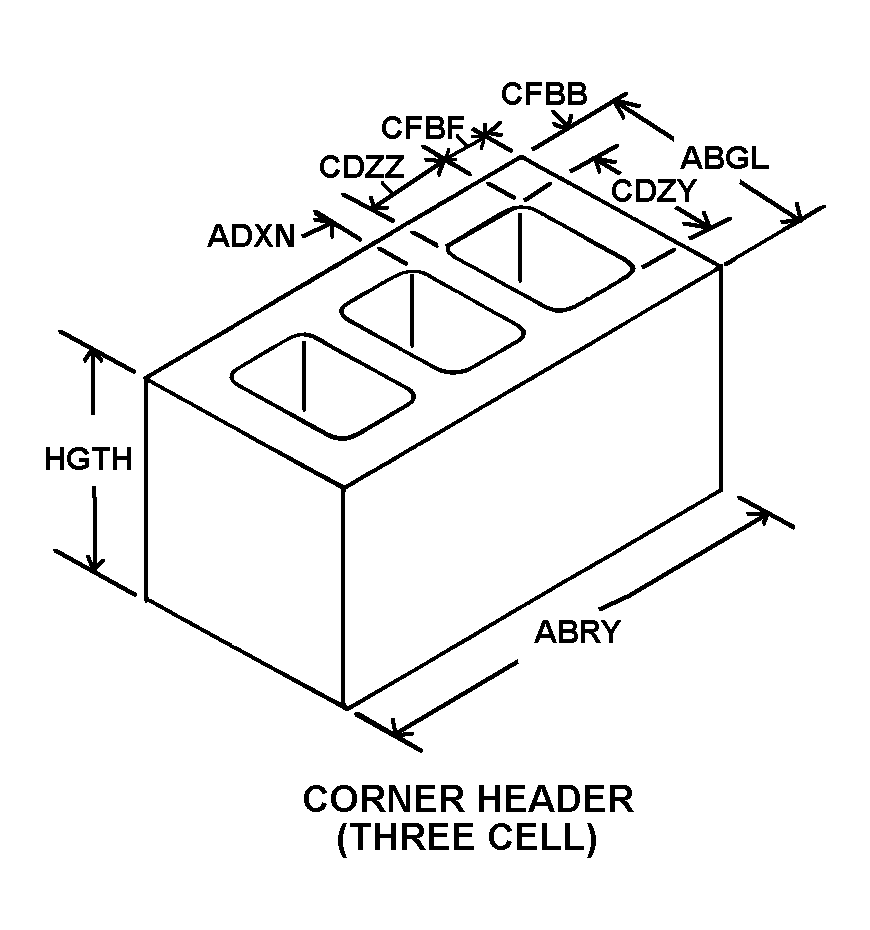

Drawings & Photos | NSN 5620-00-297-5378
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5620-00-297-5378
Technical Data | NSN 5620-00-297-5378
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 CORNER HEADER |
| WIDTH | 8.000 INCHES NOMINAL |
| LENGTH | 16.000 INCHES NOMINAL |
| WEB THICKNESS | 1.000 INCHES NOMINAL |
| CELL WIDTH | 5.125 INCHES NOMINAL |
| CELL LENGTH | 4.000 INCHES NOMINAL |
| SHELL THICKNESS AT SIDE | 1.312 INCHES NOMINAL |
| SHELL THICKNESS AT EXPOSED CORNER END | 1.312 INCHES NOMINAL |
| HEIGHT | 8.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND N GRADE |
| MANUFACTURERS CODE | 81346 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ASTM C90 |
Restrictions/Controls & Freight Information | NSN 5620-00-297-5378
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5620-00-297-5378
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
