NSN 5365-21-901-6965 10501074, 2401739905, 2401-7399-05

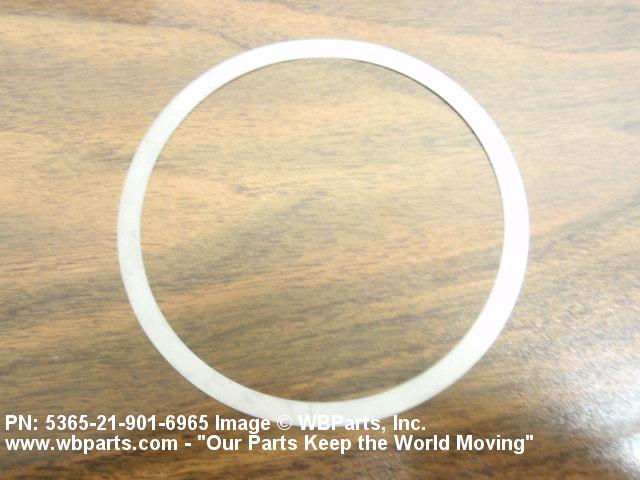

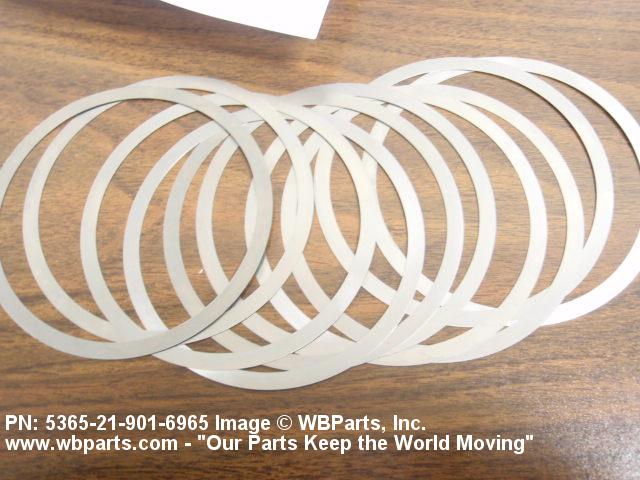

5365-21-901-6965 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.

Part Alternates: 10501074, 2401739905, 2401-7399-05, 5365-21-901-6965, 21-901-6965, 5365219016965, 219016965

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
