NSN 5365-01-457-8641 RL38SB9, RL38SB-9, 01-457-8641
Product Details | TOLERANCE RING
5365-01-457-8641 A corrugated strip of spring steel in the form of a circle. It is unattached at the ends to create a small gap and flat on the sides of the corrugations to provide rigidity. The corrugations protrude from one surface only. Excludes CLIP, SPLIT TUBULAR; CLIP, SPRING TENSION; and RING, RETAINING.
Part Alternates: RL38SB9, RL38SB-9, 5365-01-457-8641, 01-457-8641, 5365014578641, 014578641
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1998 | 01-457-8641 | 26495 ( RING, TOLERANCE ) |

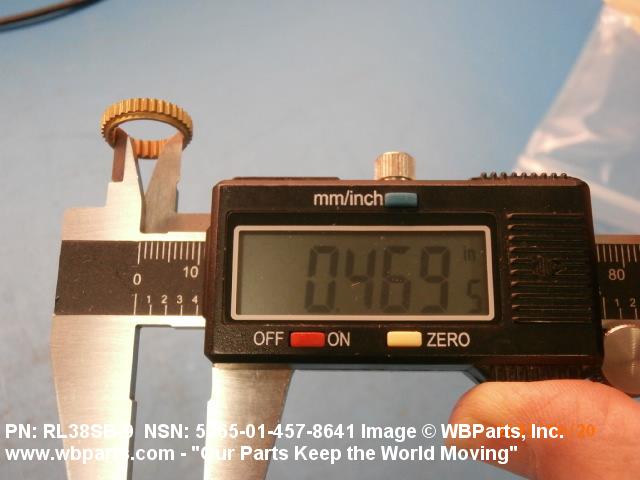

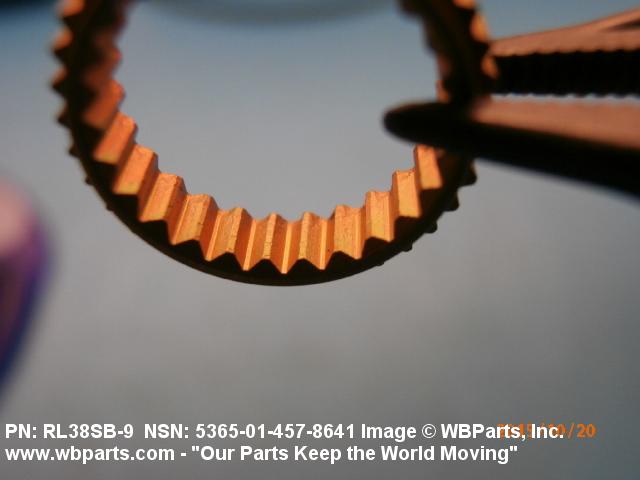

Drawings & Photos | NSN 5365-01-457-8641
Demand History | NSN 5365-01-457-8641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RL38SB9 | 2015-09-268 | 2 | United States |
| RL38SB9 | 2015-02-57 | 4 | United States |
| 5365-01-457-8641 | 2013-04-99 | 90 | United States |
| 5365-01-457-8641 | 2012-06-165 | 15 | United States |
| RL38SB9 | 2009-11-316 | 6 | US |
| 5365-01-457-8641 | 2008-08-221 | 50 | US |
| 5365-01-457-8641 | 2008-07-183 | 80 | US |
| 5365-01-457-8641 | 2008-01-09 | 12 | United States |
Cross Reference | NSN 5365-01-457-8641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RL38SB-9 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-457-8641
Technical Data | NSN 5365-01-457-8641
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1117 |
| HEIGHT | 0.200 INCHES NOMINAL |
| CORRUGATED SURFACE LOCATION | OUTSIDE SURFACE |
Restrictions/Controls & Freight Information | NSN 5365-01-457-8641
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
