NSN 5365-01-294-2152 9206M59P25, 01-294-2152, 012942152
Product Details | SPECIAL SHAPED SPACER
5365-01-294-2152 A metallic or nonmetallic item of various peripheral shapes and a solid cross-section. It is designed to maintain a predetermined distance between two surfaces. It may have flat parallel bearing surfaces. Do not use if a more specific name applies. See also SPACER, RING; SPACER, PLATE; SPACER, SLEEVE; SPACER, STEPPED; SHIM and WASHER, FLAT.
Part Alternates: 9206M59P25, 5365-01-294-2152, 01-294-2152, 5365012942152, 012942152
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 FEB 1989 | 01-294-2152 | 41013 ( SPACER, SPECIAL SHAPED ) |

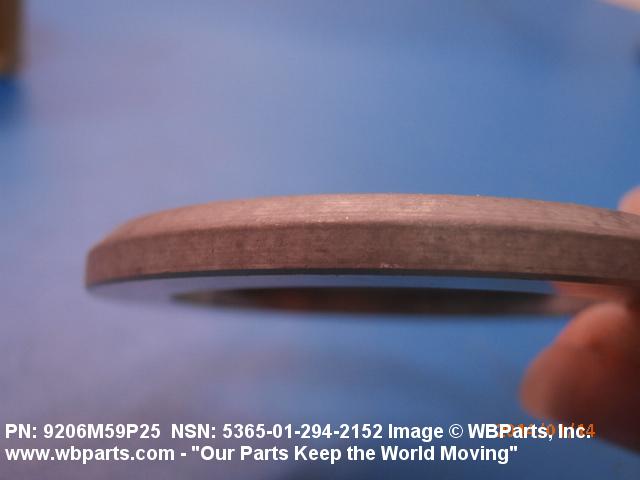

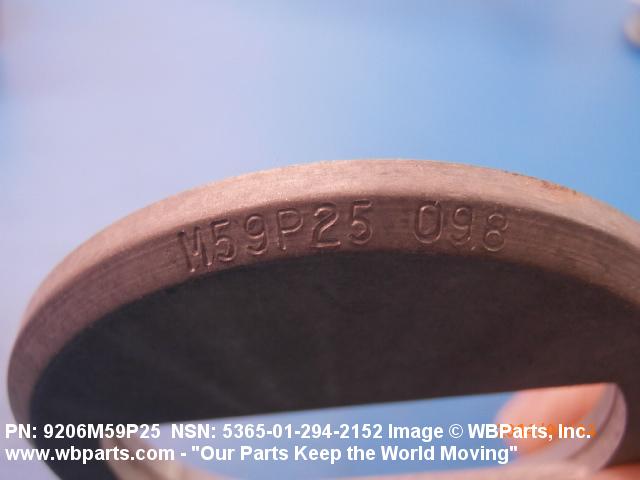

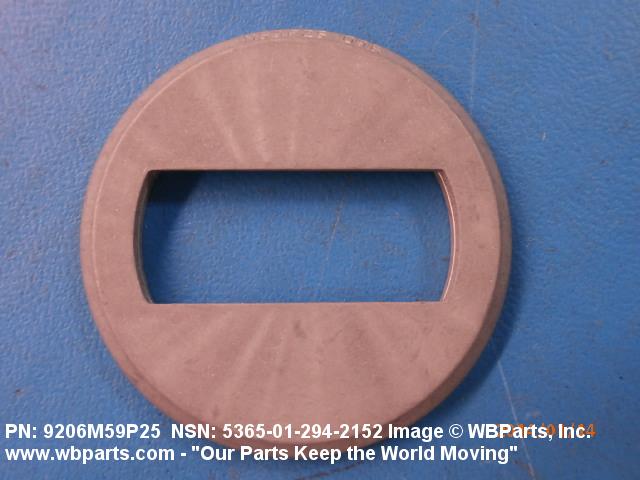

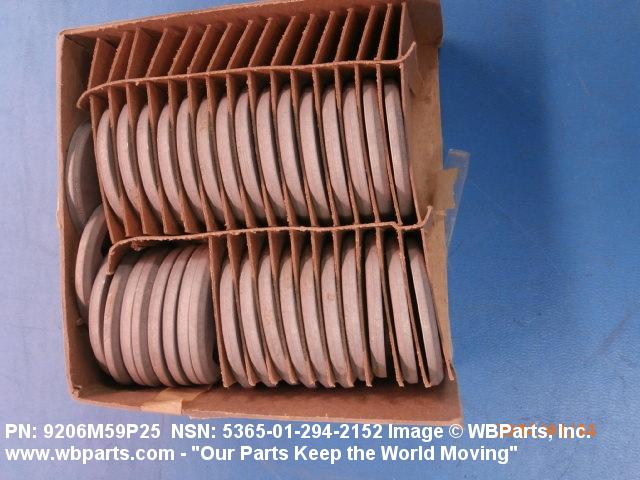

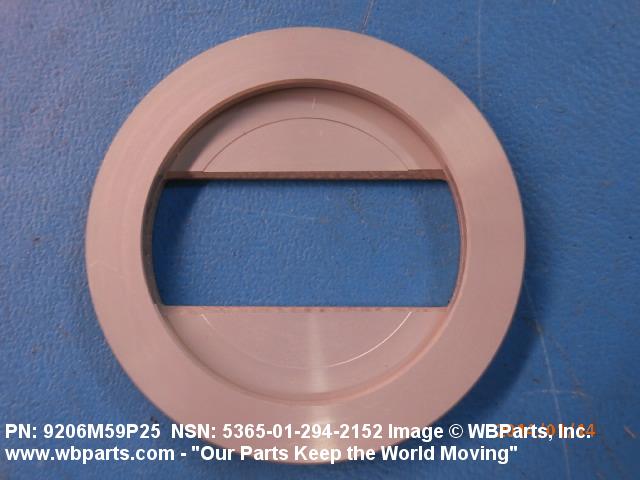

Drawings & Photos | NSN 5365-01-294-2152
Demand History | NSN 5365-01-294-2152
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-294-2152 | 2013-12-358 | 35 | United States |
| 5365-01-294-2152 | 2013-07-190 | 10 | Taiwan |
| 5365-01-294-2152 | 2013-03-72 | 631 | DIBBS |
| 5365-01-294-2152 | 2012-03-75 | 40 | DIBBS |
| 5365-01-294-2152 | 2012-02-46 | 141 | DIBBS |
| 5365-01-294-2152 | 2012-01-05 | 64 | DIBBS |
| 5365-01-294-2152 | 2011-10-279 | 66 | DIBBS |
| 5365-01-294-2152 | 2011-05-133 | 50 | DIBBS |
| 5365-01-294-2152 | 2011-03-85 | 48 | DIBBS |
| 5365-01-294-2152 | 2011-03-80 | 50 | DIBBS |
| 5365-01-294-2152 | 2010-09-266 | 5 | DIBBS |
| 5365-01-294-2152 | 2010-06-168 | 4 | DIBBS |
| 5365-01-294-2152 | 2010-03-88 | 24 | DIBBS |
| 5365-01-294-2152 | 2010-03-67 | 100 | DIBBS |
| 5365-01-294-2152 | 2009-12-365 | 660 | DIBBS |
| 5365-01-294-2152 | 2009-07-191 | 20 | DIBBS |
| 5365-01-294-2152 | 2009-03-79 | 50 | DIBBS |
| 5365-01-294-2152 | 2008-05-128 | 32 | DIBBS |
Cross Reference | NSN 5365-01-294-2152
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9206M59P25 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-294-2152
Related Products | NSN 5365-01-294-2152
Technical Data | NSN 5365-01-294-2152
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4117 ASSN STD SINGLE MATERIAL RESPONSE |

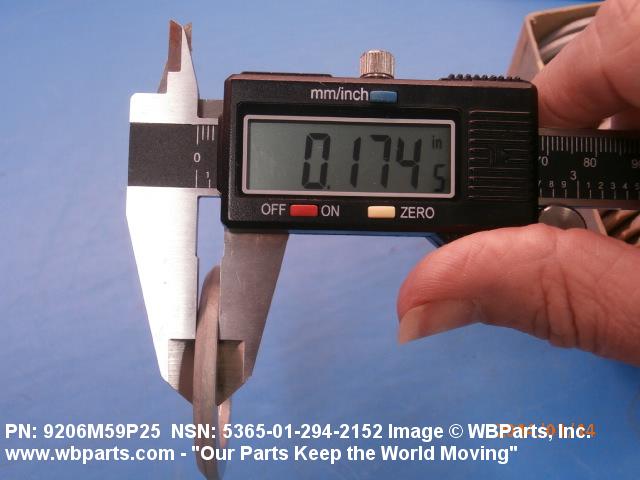

| OVERALL THICKNESS | 0.168 INCHES MINIMUM AND 0.179 INCHES MAXIMUM |

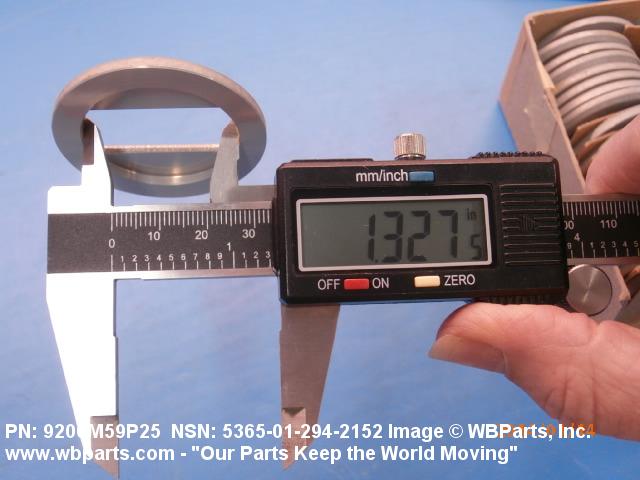

| INSIDE DIAMETER | 1.326 INCHES MINIMUM AND 1.331 INCHES MAXIMUM |

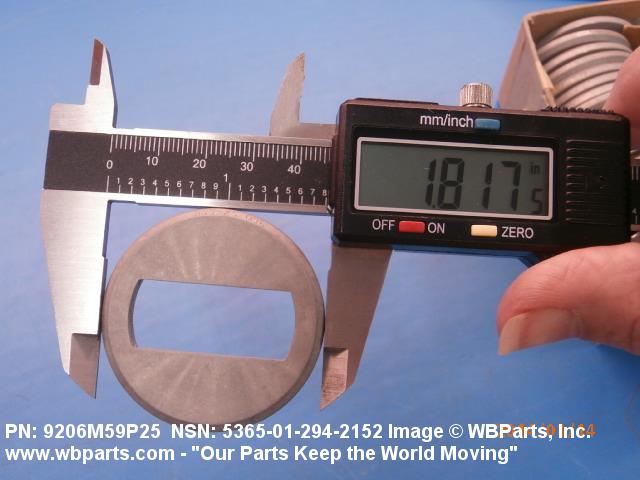

| OUTSIDE DIAMETER | 1.810 INCHES MINIMUM AND 1.820 INCHES MAXIMUM |

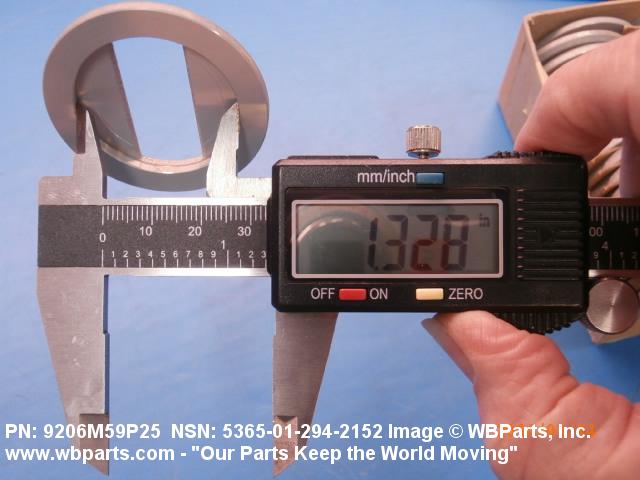

| SPECIAL FEATURES | HAS INTERNAL FLANGE WITH MINIMUM LENGTH OF 1.326 IN., MAXIMUM LENGTH OF 1.346 IN., MINIMUM WIDTH OF 0.565 IN. AND MAXIMUM WIDTH OF 0.585 IN. |
Restrictions/Controls & Freight Information | NSN 5365-01-294-2152
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-294-2152
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
