NSN 5365-01-230-5294 222351, 22235-1, 01-230-5294
Product Details | STEPPED SPACER
5365-01-230-5294 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The length must exceed 25 percent of the outside diameter or distance across peripheral flats. (When the length, outside diameter, and/or distance across peripheral flats are designated as a tolerance, the maximum dimension will be used to determine compliance.) It must have one or more internal steps (counterbores) and/or external steps on either or both bearing surfaces. Excludes SPACER, OPTICAL ELEMENT. See also WASHER, RECESSED and WASHER, SHOULDERED AND RECESSED.
Part Alternates: 222351, 22235-1, 5365-01-230-5294, 01-230-5294, 5365012305294, 012305294
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1986 | 01-230-5294 | 22262 ( SPACER, STEPPED ) |

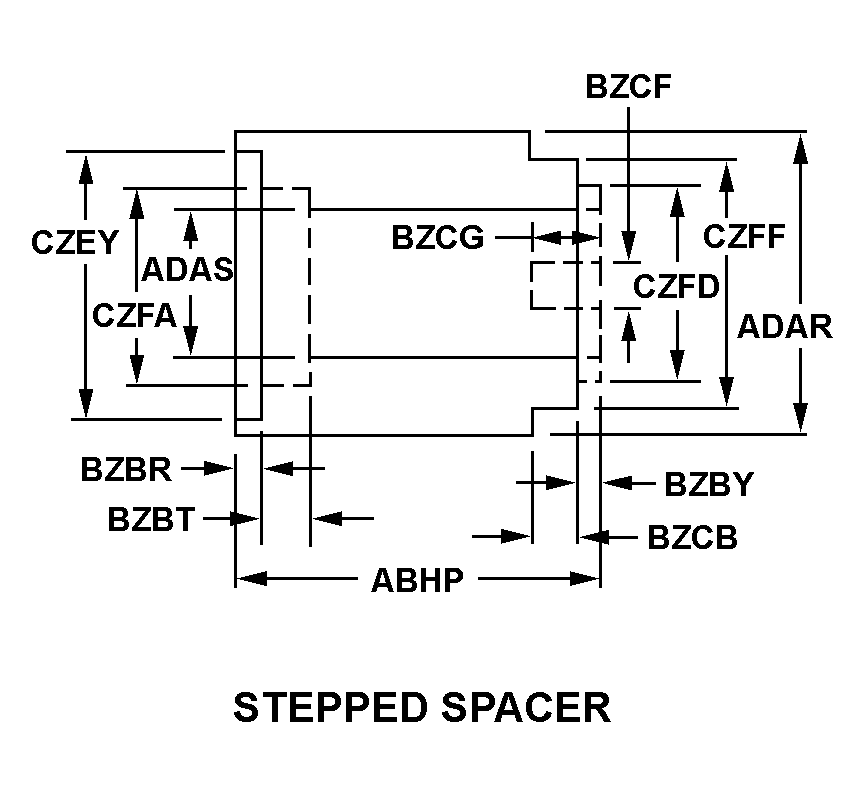

Drawings & Photos | NSN 5365-01-230-5294
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-230-5294
Technical Data | NSN 5365-01-230-5294
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | WW-P-404, TYPE S, GRADE A, CLASS A53A SXXS FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | C2 SPACER, STEPPED |
| OVERALL LENGTH | 1.594 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 5.188 INCHES MINIMUM |
| FIRST LEFT COUNTERBORE DEPTH | 0.094 INCHES NOMINAL |
| FIRST RIGHT STEP WIDTH | 0.188 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 4.379 INCHES NOMINAL |
| FIRST RIGHT STEP OUTSIDE DIAMETER | 4.747 INCHES MINIMUM AND 4.763 INCHES MAXIMUM |
| SPECIAL FEATURES | PAINT,MIL-E-15090,COLOR,GRAY; TRAY SIZE: 4.763 IN. NOMINAL |
