NSN 5365-01-193-6784 74A4509702003, 74A450970-2003, 01-193-6784
Product Details | PLATE SPACER
5365-01-193-6784 A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.202259000005365000000
Part Alternates: 74A4509702003, 74A450970-2003, 5365-01-193-6784, 01-193-6784, 5365011936784, 011936784
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 06 NOV 1984 | 01-193-6784 | 26979 ( SPACER, PLATE ) |
Demand History | NSN 5365-01-193-6784
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5365-01-193-6784 | 2022-08-229 | 3 | DIBBS |
5365-01-193-6784 | 2009-10-287 | 2 | DIBBS |
Cross Reference | NSN 5365-01-193-6784
Part Number | Cage Code | Manufacturer |
---|---|---|
74A450970-2003 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5365-01-193-6784
Technical Data | NSN 5365-01-193-6784
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 630 |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE |
BOLT HOLE QUANTITY | 2 |

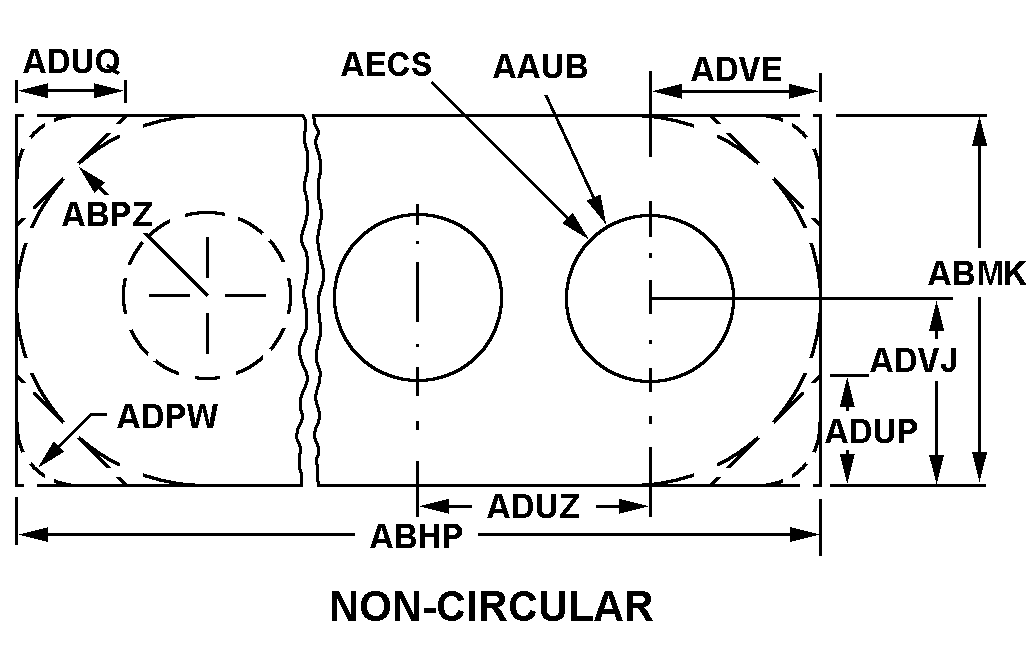

STYLE DESIGNATOR | A16D NON-CIRCULAR W/BEVELED CORNERS |
HOLE DIAMETER | 0.251 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
OVERALL LENGTH | 1.000 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
OVERALL WIDTH | 0.435 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
OUTSIDE CORNER BEVEL LENGTH ALONG WIDTH | 0.050 INCHES NOMINAL |
OUTSIDE CORNER BEVEL LENGTH ALONG LENGTH | 0.050 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.499 INCHES MINIMUM AND 0.501 INCHES MAXIMUM |
OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
BOLT HOLE CENTERLINE TO NEAREST EDGE DISTANCE | 0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5365-01-193-6784
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-193-6784
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
