NSN 5365-01-032-8234 054418, 885B054418, 885F052061 ITEM 157
Product Details | SHIM
5365-01-032-8234 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 054418, 885B054418, 885F052061 ITEM 157, 885F052061ITEM157, 5365-01-032-8234, 01-032-8234, 5365010328234, 010328234
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 DEC 1976 | 01-032-8234 | 20349 ( SHIM ) |

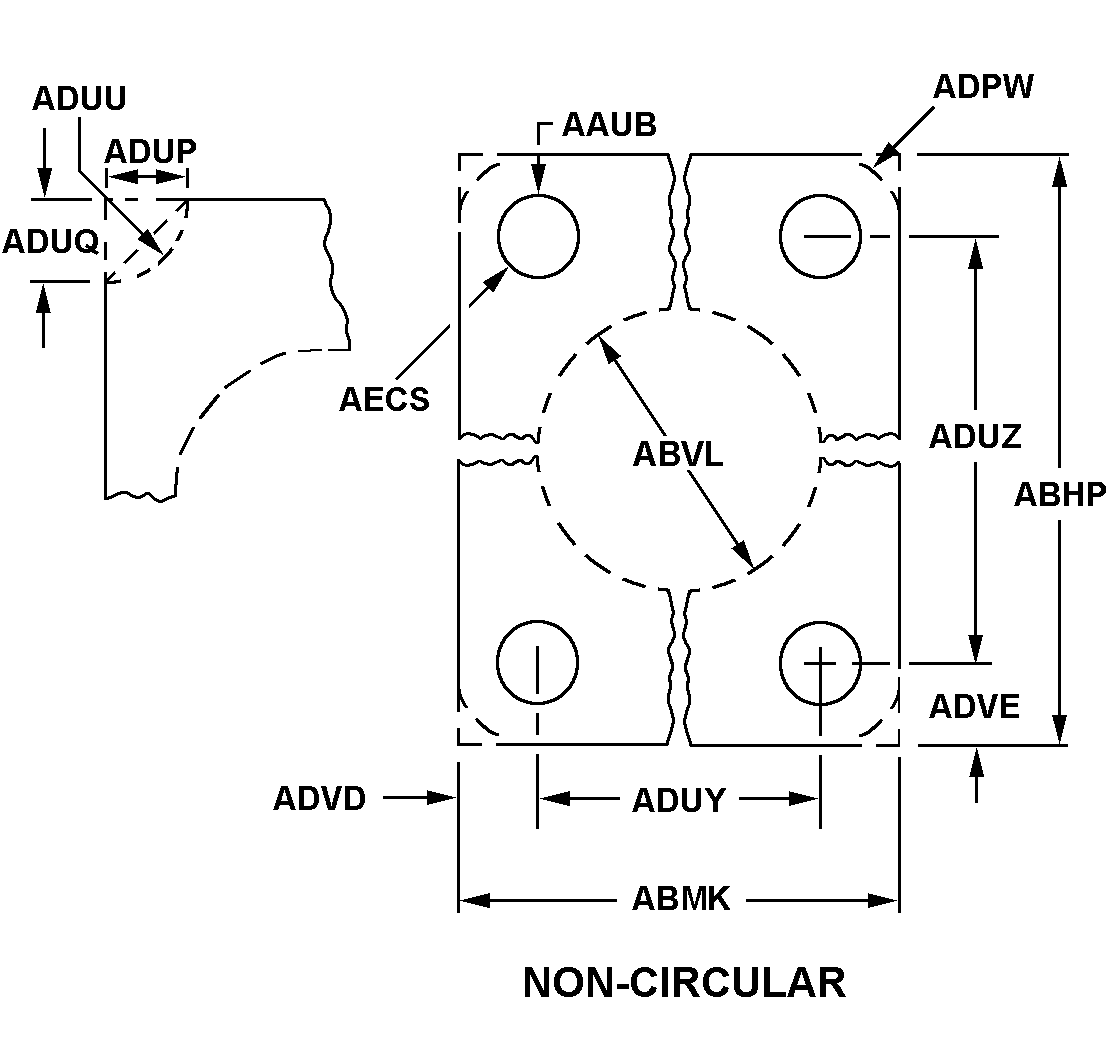

Drawings & Photos | NSN 5365-01-032-8234
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-032-8234
Technical Data | NSN 5365-01-032-8234
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC PHENOLIC AND PAPER |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-509,TY 1 FED SPEC SINGLE MATERIAL RESPONSE |
| CONSTRUCTION | ONE-PIECE |
| BOLT HOLE QUANTITY | 4 |
| STYLE DESIGNATOR | A15H NON-CIRCULAR W/BOLT HOLES |
| HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| OUTSIDE CORNER BEVEL LENGTH ALONG WIDTH | 0.090 INCHES NOMINAL |
| OUTSIDE CORNER BEVEL LENGTH ALONG LENGTH | 0.090 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 0.630 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.660 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| MANUFACTURERS CODE | 34228 |
| DESIGN CONTROL REFERENCE | 054418 |
