NSN 5365-00-931-5317 A3293851, 21L192, 21L19-2
Product Details | SHIM
5365-00-931-5317 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: A3293851, 21L192, 21L19-2, 8588960003, 85889600-03, 9D03272, 9D0327-2, 5365-00-931-5317, 00-931-5317, 5365009315317, 009315317
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1966 | 00-931-5317 | 20349 ( SHIM ) |

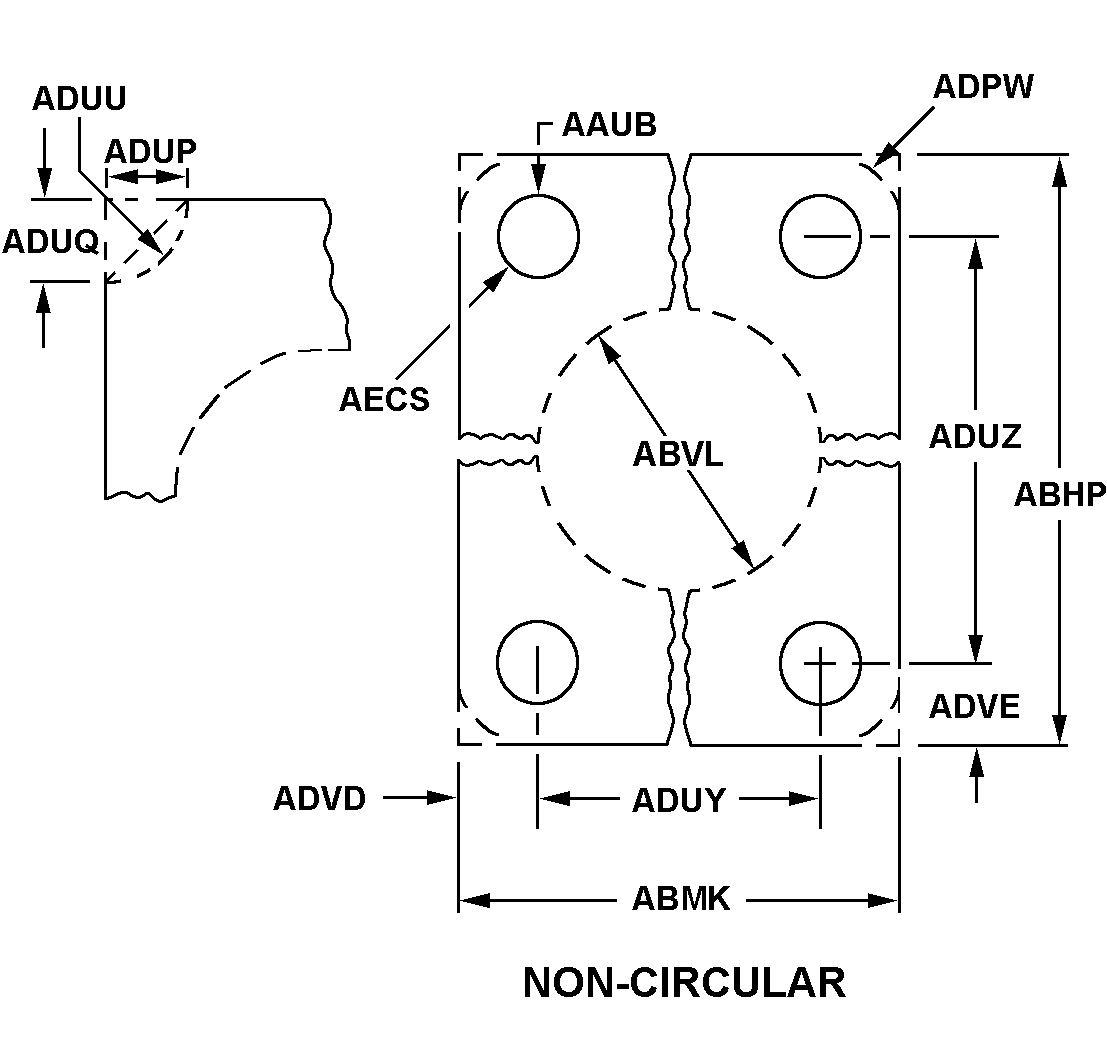

Drawings & Photos | NSN 5365-00-931-5317
Cross Reference | NSN 5365-00-931-5317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21L19-2 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 85889600-03 | 27963 | GENERAL DYNAMICS INFORMATION SYSTEMS INC. |
| 85889600-03 | 3CYA2 | GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS, INC. |
| 9D0327-2 | 1YMW9 | BOEING COMPANY THE DBA BOEING |
| 9D0327-2 | 88277 | BOEING COMPANY, THE DBA BOEING |
| A3293851 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-931-5317
Related Products | NSN 5365-00-931-5317
Technical Data | NSN 5365-00-931-5317
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-355, T4 OR T3 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| CONSTRUCTION | LAMINATED |
| LAMINATION QUANTITY | 8 |
| LAMINATION THICKNESS | 0.009 INCHES MINIMUM AND 0.011 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.080 INCHES NOMINAL |
| STYLE DESIGNATOR | A15K NON-CIRCULAR W/O BOLT HOLES |
| OVERALL LENGTH | 0.511 INCHES MINIMUM AND 0.521 INCHES MAXIMUM |
| OVERALL WIDTH | 0.429 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| APERTURE DIAMETER | 0.250 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SPECIAL FEATURES | ITEM HAS A 0.169 TO 0.191 WIDE SOLT CENTERED ALONG THE LENGTH THAT GOES TO THE APERTURE |
Restrictions/Controls & Freight Information | NSN 5365-00-931-5317
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
