NSN 5365-00-837-3702 0717-26012, 717, 00-837-3702
Product Details | NONMETALLIC BUSHING
5365-00-837-3702 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: 0717-26012, 717, 5365-00-837-3702, 00-837-3702, 5365008373702, 071726012, 008373702
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-837-3702 | 39929 ( BUSHING, NONMETALLIC ) |
Drawings & Photos | NSN 5365-00-837-3702
Demand History | NSN 5365-00-837-3702
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 717 | 2022-01-24 | 6 | Malaysia |
| 717 | 2022-01-19 | 17 | Malaysia |
| 717 | 2021-04-102 | 1 | Malaysia |
| 717 | 2021-03-61 | 6 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-837-3702
Technical Data | NSN 5365-00-837-3702
| Characteristic | Specifications |
|---|---|
| SPLIT DESIGN FEATURE | NOT INCLUDED |
| MATERIAL | RUBBER, NATURAL |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |

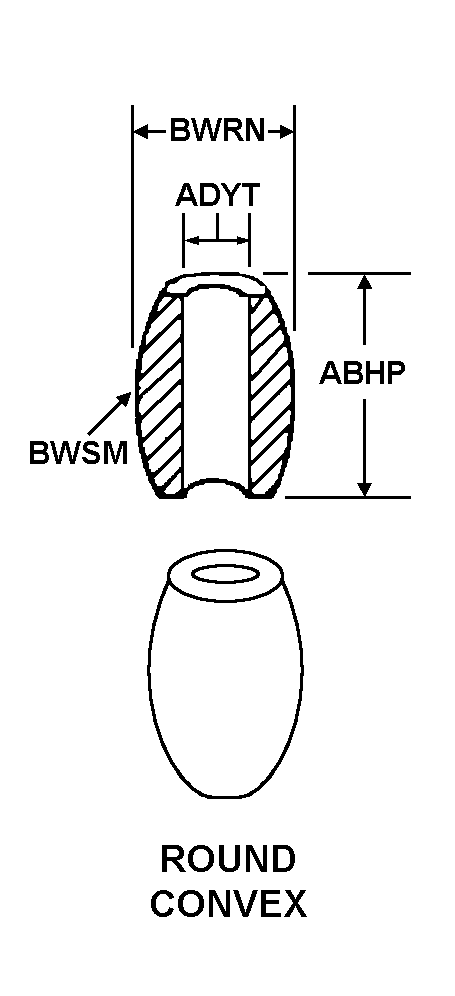

| STYLE DESIGNATOR | 9 ROUND CONVEX |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.188 INCHES NOMINAL |
| BODY CROSS-SECTIONAL LENGTH | 0.781 INCHES NOMINAL |
| CONVEX BODY RADIUS | 0.188 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MANUFACTURERS CODE | 70485 |
| DESIGN CONTROL REFERENCE | 0717-26012 |
Restrictions/Controls & Freight Information | NSN 5365-00-837-3702
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-837-3702
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
