Product Details | PLATE SPACER

5365-00-484-2281 A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.202259000005365000000

Part Alternates: 514165, 51416-5, 65012, 5365-00-484-2281, 00-484-2281, 5365004842281, 004842281

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG) NSN Assign. NIIN
53 21 MAY 1969 00-484-2281

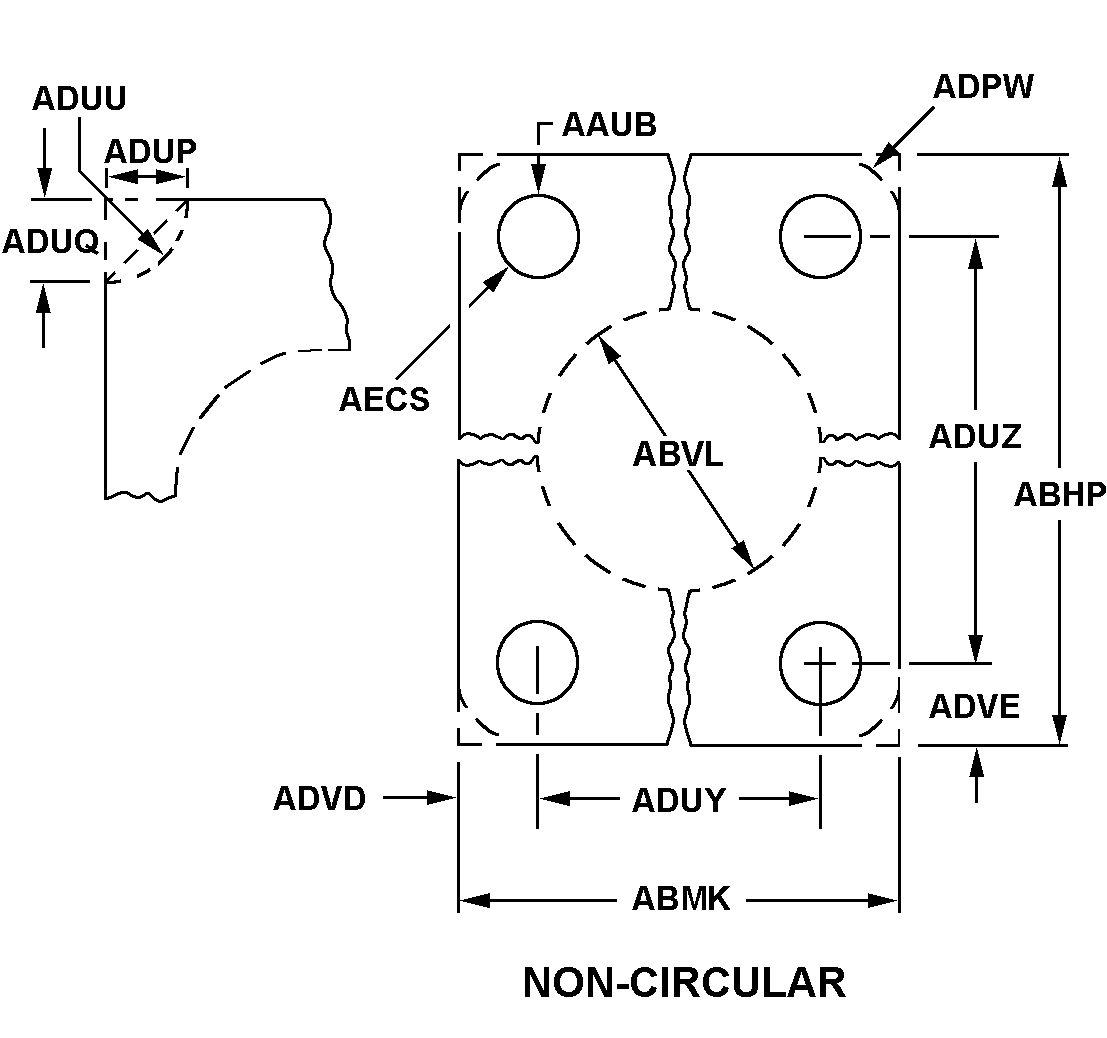

Drawings & Photos | NSN 5365-00-484-2281


Demand History | NSN 5365-00-484-2281

Part Number Request Date QTY Origin
5365-00-484-2281 2012-01-04 1 DIBBS

Cross Reference | NSN 5365-00-484-2281

Part Number Cage Code Manufacturer
51416-5 83445 PREECE ACQUISITION COMPANY INC DBA AEROL CO
65012 83445 PREECE ACQUISITION COMPANY INC DBA AEROL CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-484-2281

Technical Data | NSN 5365-00-484-2281

Characteristic Specifications
MATERIAL STEEL COMP 1018
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE
STYLE DESIGNATOR A15J NON-CIRCULAR W/O BOLT HOLES
OVERALL LENGTH 1.000 INCHES NOMINAL
OVERALL WIDTH 0.380 INCHES NOMINAL
APERTURE DIAMETER 0.281 INCHES NOMINAL
MANUFACTURERS CODE 83445
DESIGN CONTROL REFERENCE 65012

Restrictions/Controls & Freight Information | NSN 5365-00-484-2281

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194160 WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 713 unknown
Originating Activity Code SG 403 SCMS/GUED
5215 Thurlow St, Suite 5, Bldg 70C
Wright-Patterson AFB OH 45433
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5365-00-484-2281

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
