NSN 5365-00-379-6205 MILS22499, 511965PC6, 00-379-6205
Product Details | SHIM
5365-00-379-6205 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: MILS22499, 511965PC6, 5365-00-379-6205, 00-379-6205, 5365003796205, 003796205
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-379-6205 | 20349 ( SHIM ) |

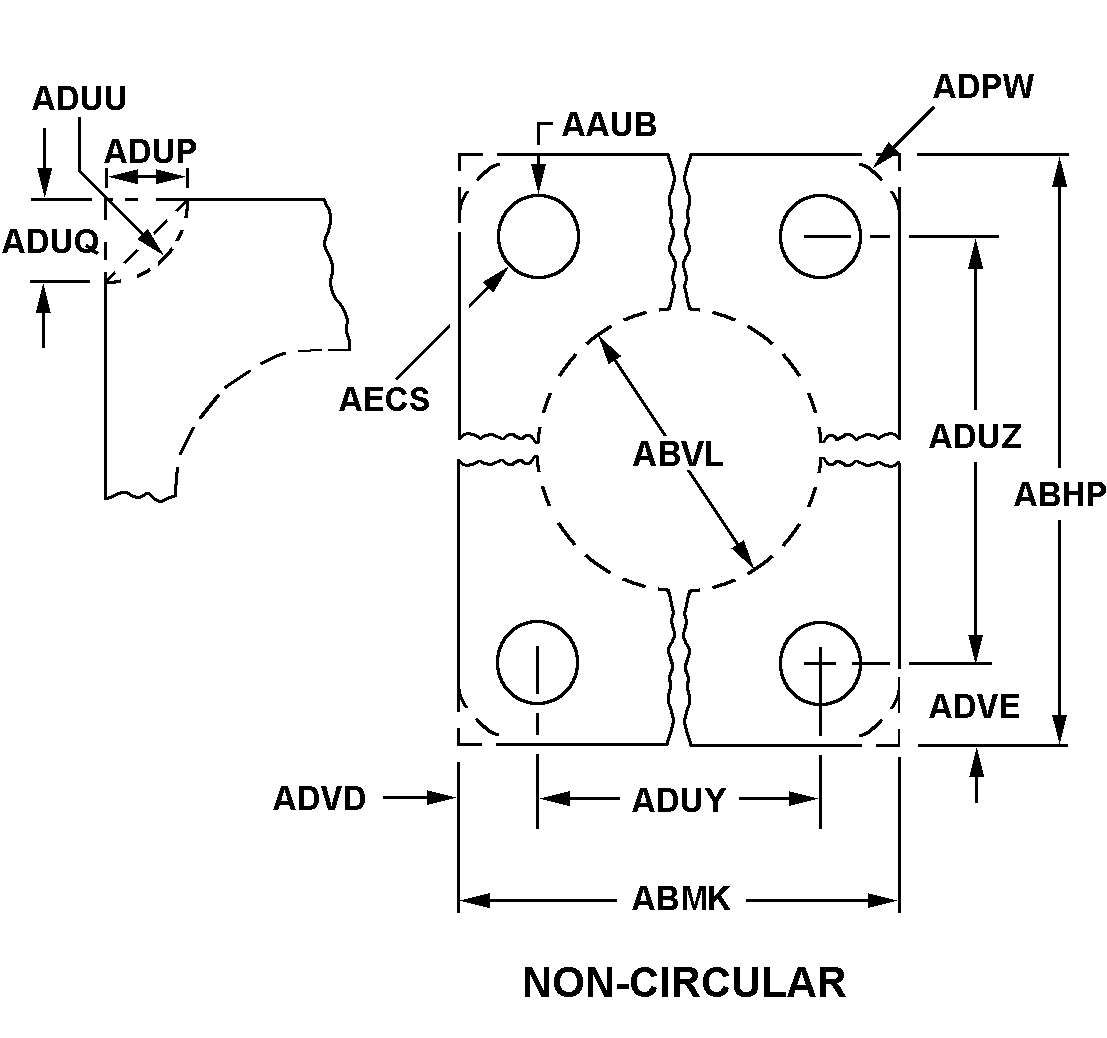

Drawings & Photos | NSN 5365-00-379-6205
Demand History | NSN 5365-00-379-6205
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILS22499 | 2023-02-37 | 1 | United States |
| MILS22499 | 2020-05-140 | 1 | US |
| MILS22499 | 2009-02-43 | 3 | US |
