NSN 5365-00-295-9662 32639886, 3263988-6, 00-295-9662
Product Details | PLATE SPACER
5365-00-295-9662 A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.202259000005365000000
Part Alternates: 32639886, 3263988-6, 5365-00-295-9662, 00-295-9662, 5365002959662, 002959662
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 SEP 1973 | 00-295-9662 | 26979 ( SPACER, PLATE ) |

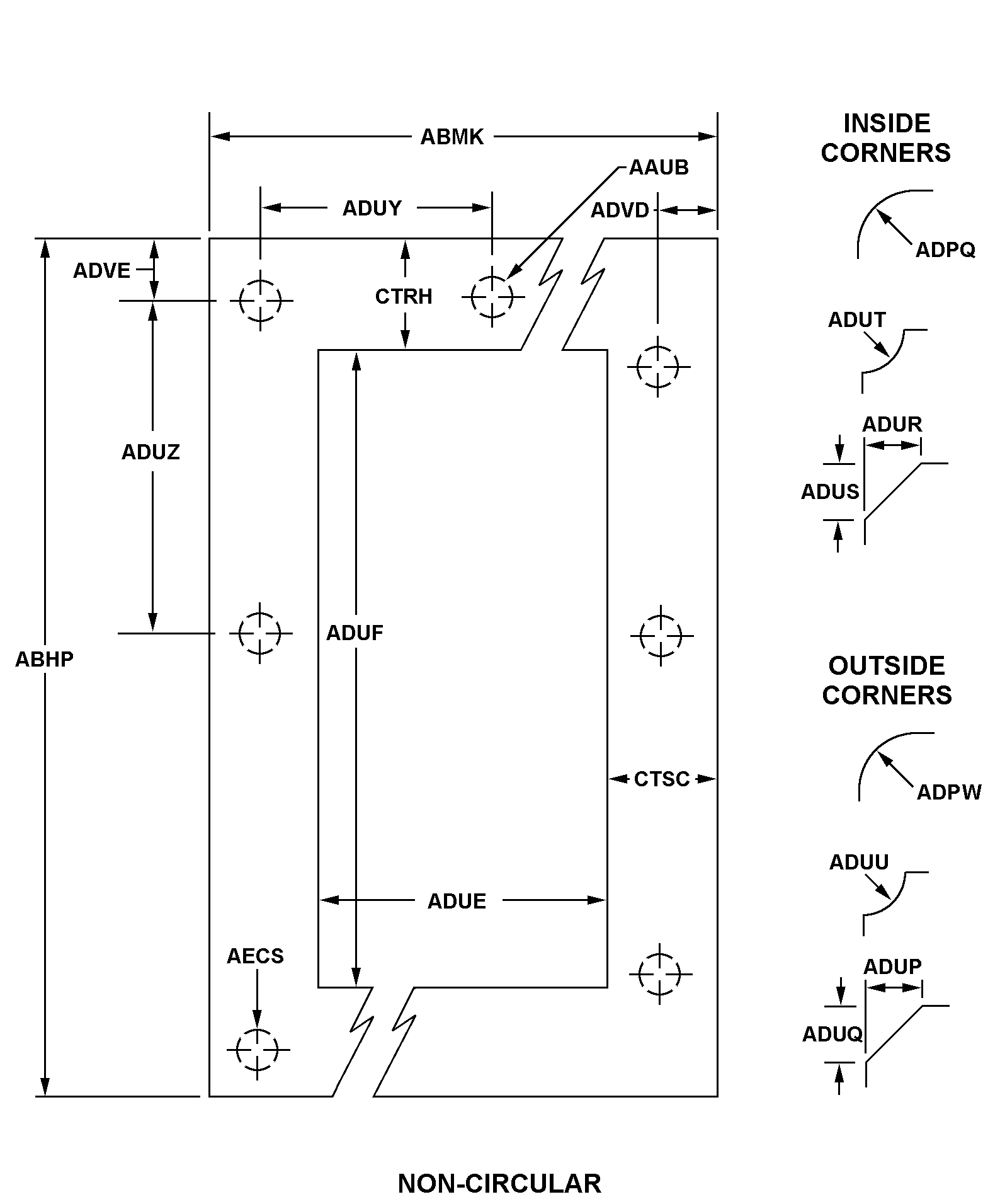

Drawings & Photos | NSN 5365-00-295-9662
Demand History | NSN 5365-00-295-9662
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-295-9662 | 2023-09-263 | 20 | DIBBS |
| 5365-00-295-9662 | 2023-08-236 | 20 | DIBBS |
Cross Reference | NSN 5365-00-295-9662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3263988-6 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-295-9662
Technical Data | NSN 5365-00-295-9662
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,T4 OR T6 FED SPEC ALL MATERIAL RESPONSES |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CL 1A MIL SPEC SINGLE TREATMENT RESPONSE |
| BOLT HOLE QUANTITY | 4 |
| APERTURE WIDTH | 0.198 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |
| APERTURE LENGTH | 0.898 INCHES MINIMUM AND 0.902 INCHES MAXIMUM |
| STYLE DESIGNATOR | A9D NON-CIRCULAR W/BOLT HOLES |
| HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| OVERALL LENGTH | 1.800 INCHES NOMINAL |
| OVERALL WIDTH | 0.675 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.015 INCHES NOMINAL |
| OUTSIDE CORNER BEVEL LENGTH ALONG WIDTH | 0.100 INCHES NOMINAL |
| OUTSIDE CORNER BEVEL LENGTH ALONG LENGTH | 0.100 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 0.298 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.500 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.150 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.189 INCHES NOMINAL |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 3263988-6 |
