NSN 5365-00-287-0094 AN8143DL, AN814-3DL , AN81440

Product Details | MACHINE THREAD PLUG

5365-00-287-0094 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: AN8143DL, AN814-3DL , AN81440, AN814-40, AN8144D, AN814-4D, AS5169D03L, AS5169D04, AS5169-D04, MILF5509, MILF5509A, 033584, 10118479, 10118480 , 103919, 14442, 1910008104, 19-10-008-104, 34464435, 3446443-5, 45P502, 5413975, 58630411, 5863-0411, 61G9203, 61G920-3 , 7318703, 731870-3 , 7M63D, 7M6-3D , 8805903, 93D48, 968.32.11.311 , 9683211311, 5365-00-287-0094, 00-287-0094, 5364002870094, 5365002870094, 002870094

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-287-0094	03801 ( PLUG, MACHINE THREAD )

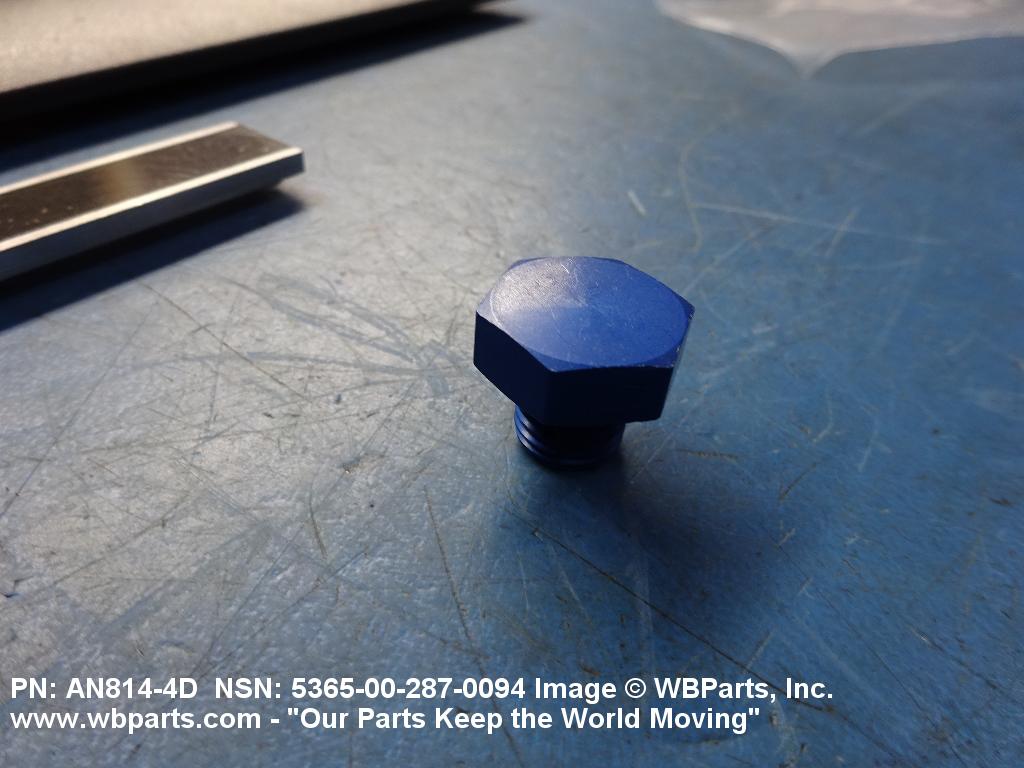

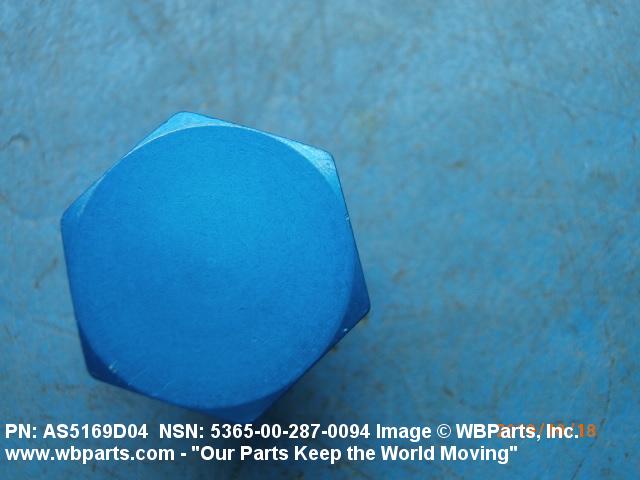

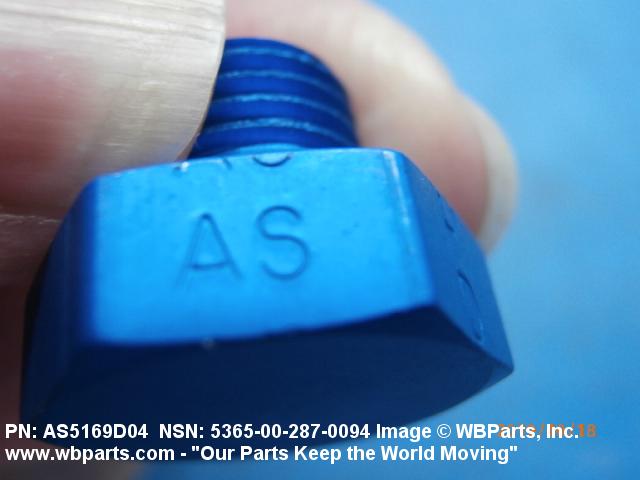

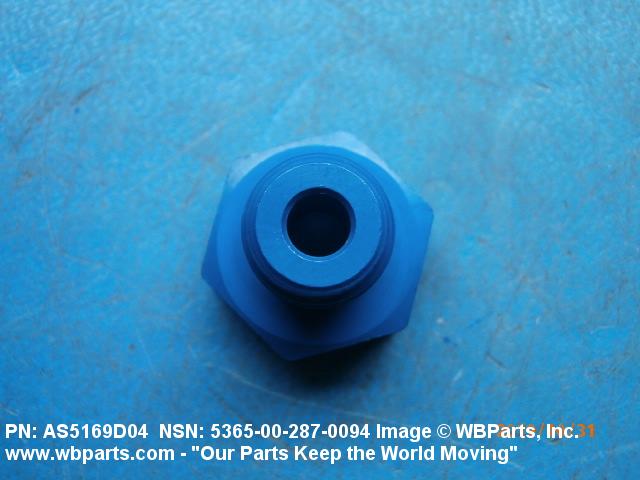

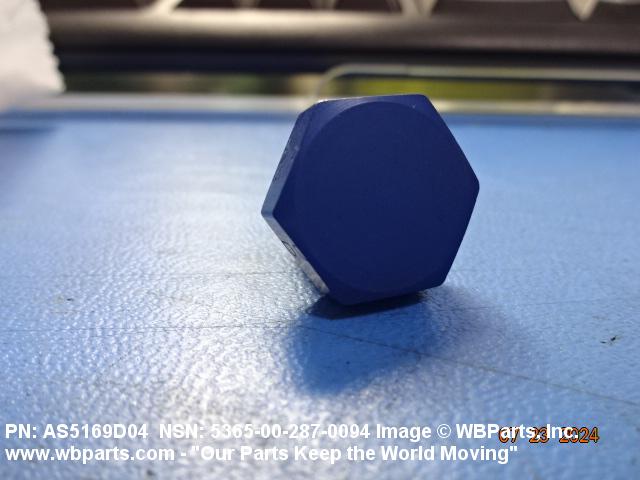

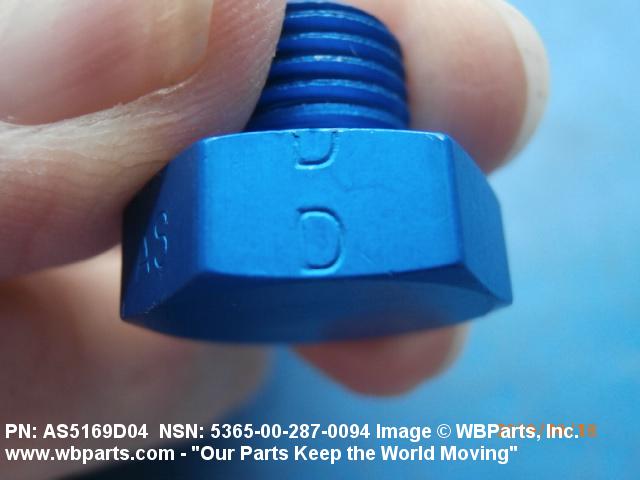

Drawings & Photos | NSN 5365-00-287-0094

Part Number	Request Date	QTY	Origin
AN8143DL	2024-10-281	20	Japan
AS5169D04	2024-07-194	300	United States
5365-00-287-0094	2023-12-346	1477	DIBBS
5365-00-287-0094	2023-12-339	775	DIBBS
AN8144D	2023-08-236	250	United States
AN8144D	2023-08-219	250	United States
5365-00-287-0094	2023-08-214	558	DIBBS
5365-00-287-0094	2023-07-192	1765	DIBBS
5365-00-287-0094	2023-02-54	1436	DIBBS
5365-00-287-0094	2023-01-25	629	DIBBS
5365-00-287-0094	2022-06-157	80	United States
5365-00-287-0094	2022-01-10	872	DIBBS
5365-00-287-0094	2021-09-266	1	United States
5365-00-287-0094	2020-03-84	1550	DIBBS
5365-00-287-0094	2019-09-260	275	United States
AS5169D03L	2019-06-178	12130	United States
AN8144D	2019-05-129	1150	us
MILF5509	2018-07-201	6	United States
5365-00-287-0094	2017-12-362	1536	DIBBS
5365-00-287-0094	2016-12-341	1159	DIBBS
AN8144D	2016-04-112	1	US
5365-00-287-0094	2015-07-204	1358	DIBBS
AN8144D	2015-01-19	100	Canada
AS5169D03L	2014-10-302	1	United States
AS5169D03L	2014-10-286	30	United States
5365-00-287-0094	2013-08-231	1	US
AN8144D	2012-08-240	2	United States
AS5169D04	2012-03-68	280	US
AN8143DL	2012-01-25	80	Australia
5365-00-287-0094	2010-12-350	10	United States
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US
5365-00-287-0094	2008-09-252	381	DIBBS
5365-00-287-0094	2008-01-22	2113	DIBBS

Cross Reference | NSN 5365-00-287-0094

Part Number	Cage Code	Manufacturer
033584	90005	PUROLATOR FACET, INC.
103919	96124	TRANSDIGM INC DBA AEROCONTROLEX
14442	F0189	MESSIER-DOWTY SA
19-10-008-104	F0217	LABINAL POWER SYSTEMS
1910008104	F0217	LABINAL POWER SYSTEMS
3446443-5	88277	BOEING COMPANY, THE DBA BOEING
45P502	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
5364002870094	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5413975	001JK	EMBRAER S/A
5413975	FB459	EMBRAER AVIATION INTERNATIONAL
5413975	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
5863-0411	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
8805903	19203	PICATINNY ARSENAL
93D48	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
AN814-40	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN814-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS5169-D04	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MILF5509A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-287-0094

Compare

Related Products | NSN 5365-00-287-0094

5365-00-287-0095, 5365-00-287-0098, 5365-00-287-0099, 5365-00-287-0100, 5365-00-287-0101

Technical Data | NSN 5365-00-287-0094

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/6,T62 OR T851 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/9,T73 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

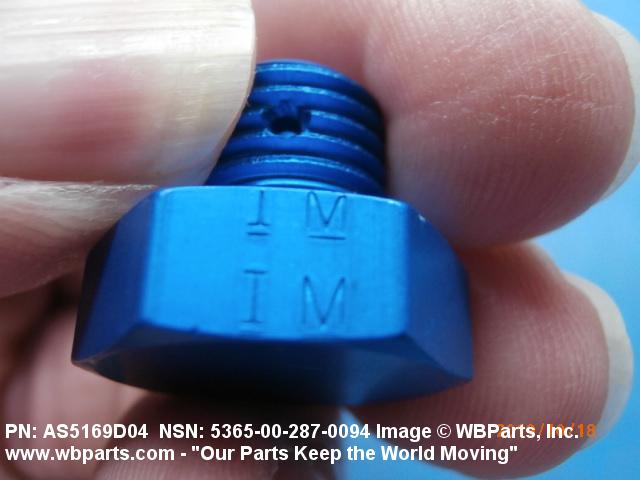

STYLE DESIGNATOR	C35A PLUG, MACHINE, W/BLEEDER HOLE

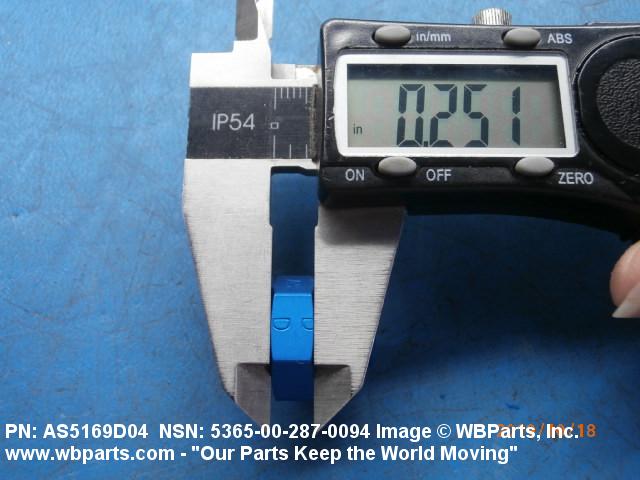

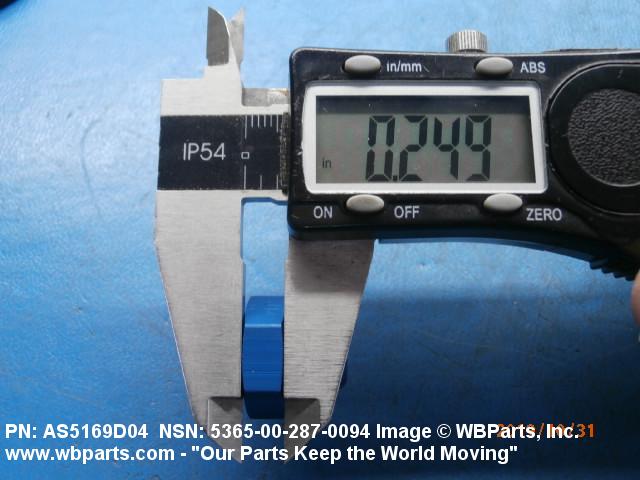

HEAD HEIGHT	0.250 INCHES NOMINAL

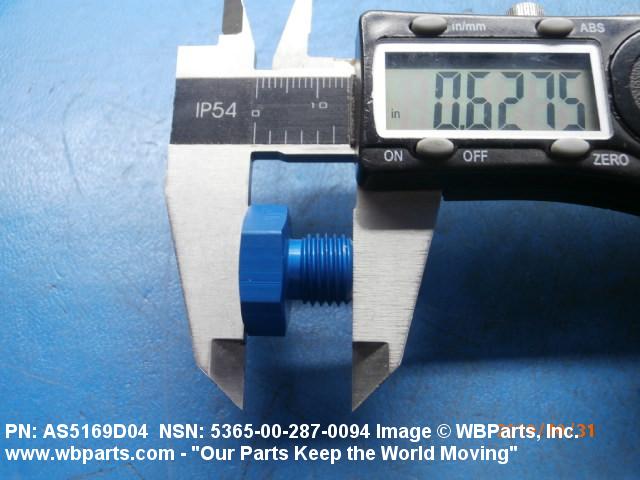

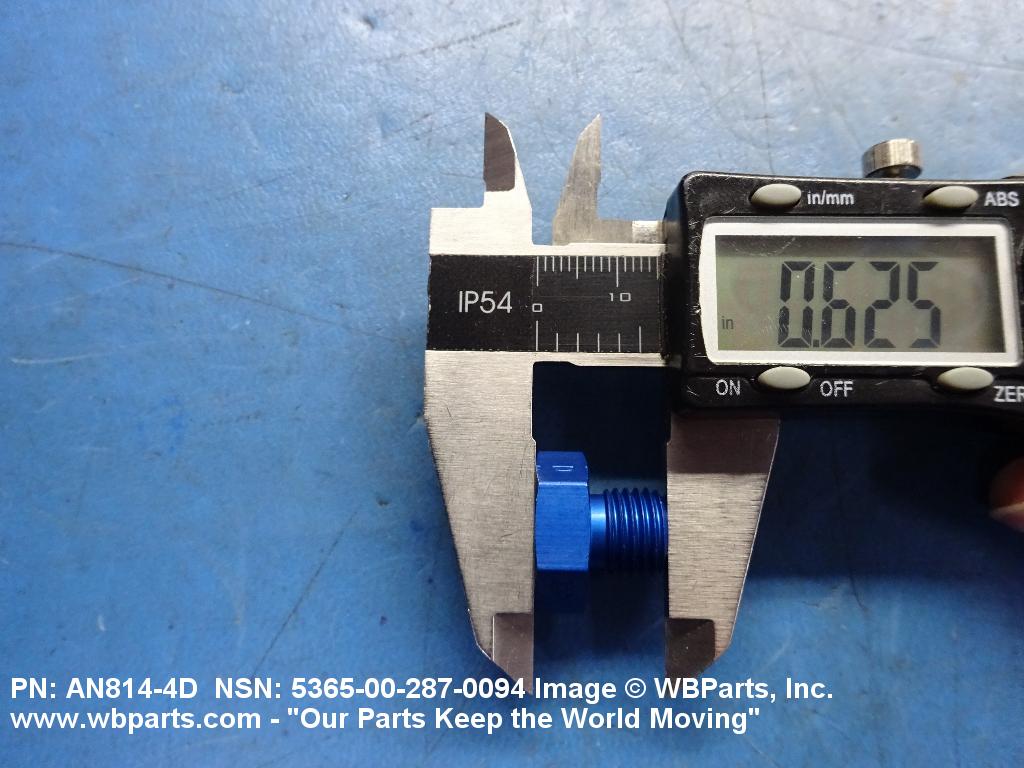

OVERALL LENGTH	0.625 INCHES NOMINAL

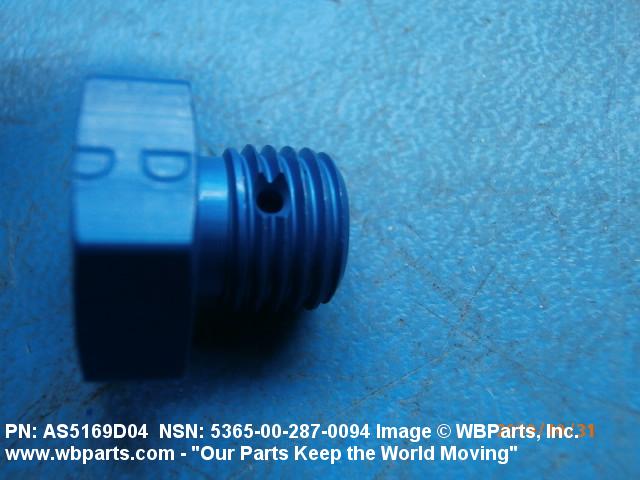

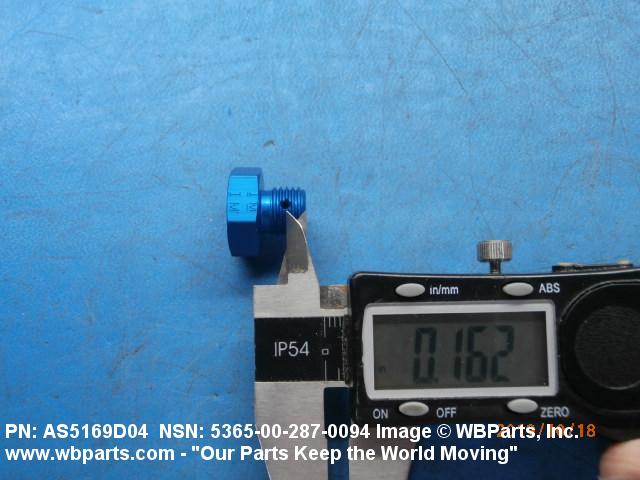

BLEEDER HOLE CENTER TO THREADED END DISTANCE	0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
BLEEDER HOLE DIAMETER	0.062 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN
THREAD SERIES DESIGNATOR	UNF EXTERNAL
NOMINAL THREAD SIZE	0.438 INCHES EXTERNAL
THREAD CLASS	3A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL

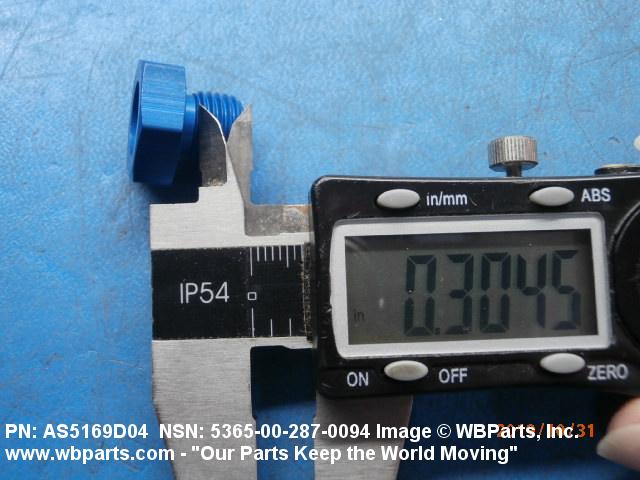

THREAD LENGTH	0.300 INCHES NOMINAL EXTERNAL
SEAT ANGLE	45.0 DEGREES

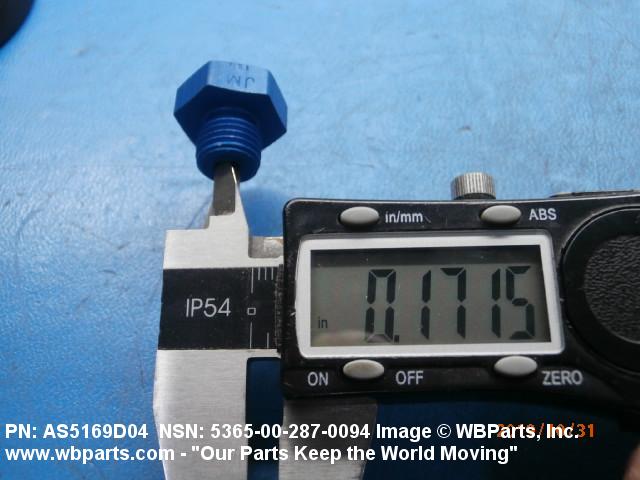

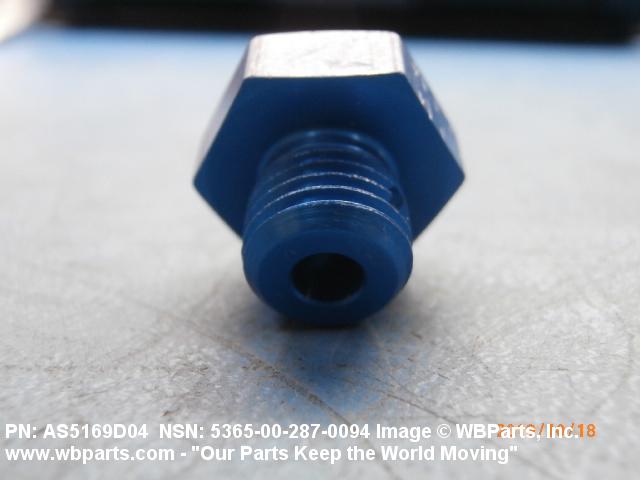

BODY CORE DIAMETER	0.171 INCHES NOMINAL

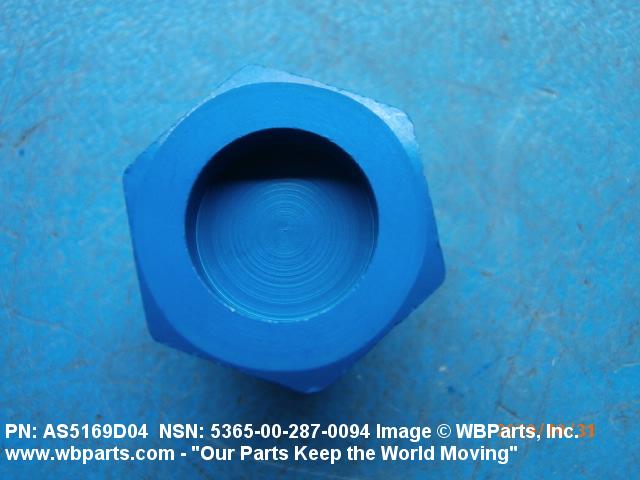

CORE DEPTH	0.297 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5365-00-287-0094

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-00-287-0094

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
