Product Details | SHIM

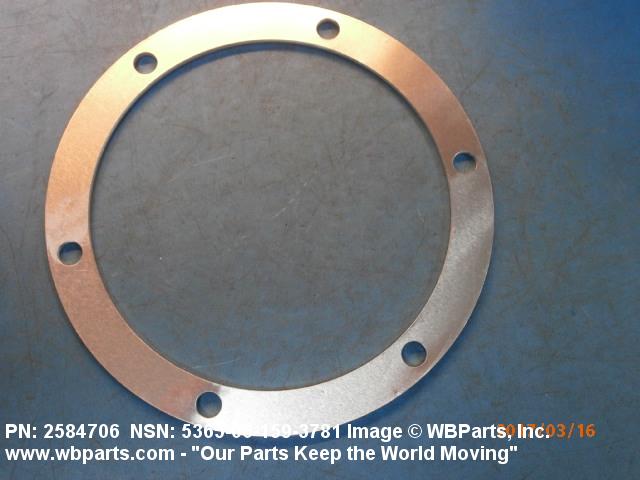

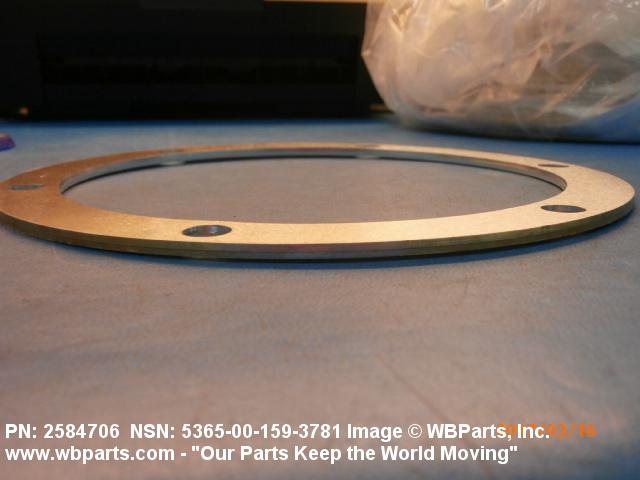

5365-00-159-3781 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 2584706, 5365-00-159-3781, 00-159-3781, 5365001593781, 001593781
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1971 | 00-159-3781 | 20349 ( SHIM ) |

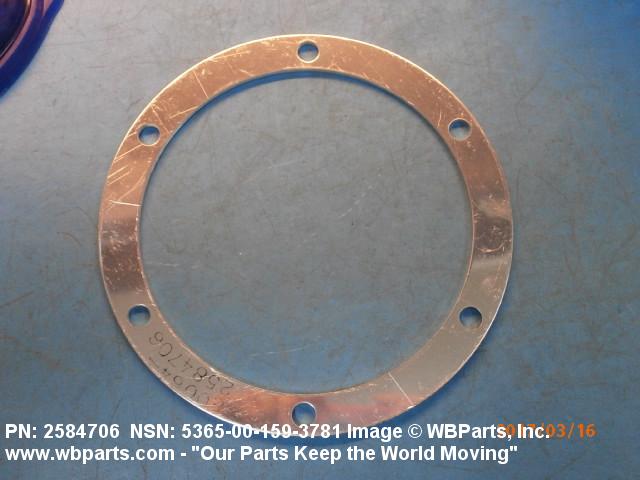

Drawings & Photos | NSN 5365-00-159-3781
Demand History | NSN 5365-00-159-3781
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-159-3781 | 2020-12-342 | 286 | DIBBS |
| 5365-00-159-3781 | 2020-09-274 | 30 | United States |
| 5365-00-159-3781 | 2017-05-123 | 40 | United States |
| 5365-00-159-3781 | 2017-03-68 | 40 | United States |
| 5365-00-159-3781 | 2017-03-61 | 40 | United States |
| 5365-00-159-3781 | 2016-01-28 | 962 | DIBBS |
| 5365-00-159-3781 | 2015-07-189 | 673 | DIBBS |
| 5365-00-159-3781 | 2014-05-132 | 781 | DIBBS |
| 5365-00-159-3781 | 2014-05-124 | 781 | DIBBS |
| 5365-00-159-3781 | 2010-07-193 | 491 | DIBBS |
Cross Reference | NSN 5365-00-159-3781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2584706 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-159-3781
Technical Data | NSN 5365-00-159-3781
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1100 OR ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/1,H19, FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/8,H19,OR H39 FED SPEC SINGLE MATERIAL RESPONSE |
| CONSTRUCTION | LAMINATED |
| LAMINATION QUANTITY | 31 AND 1 |

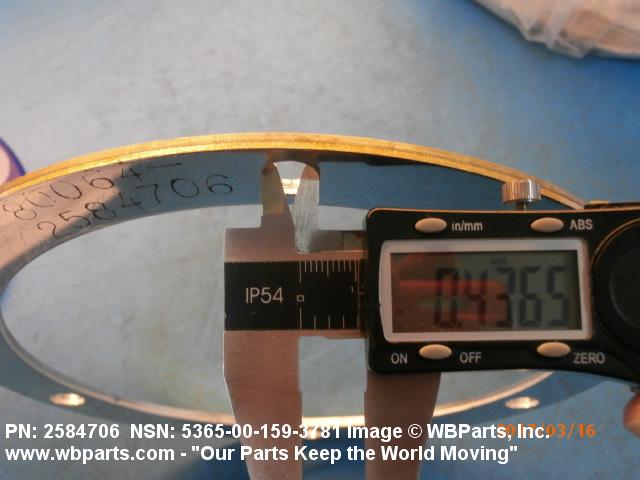

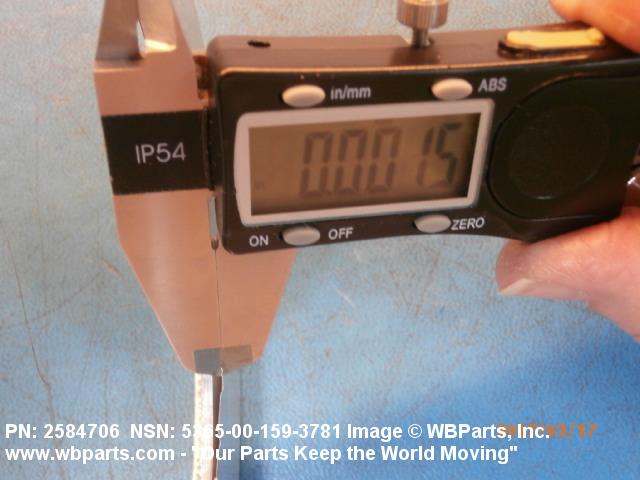

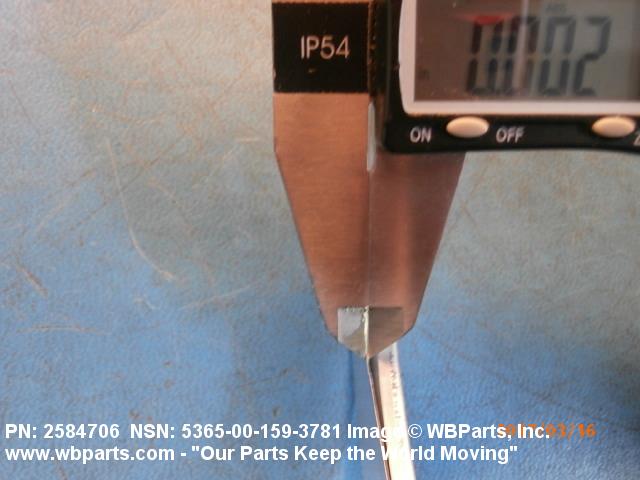

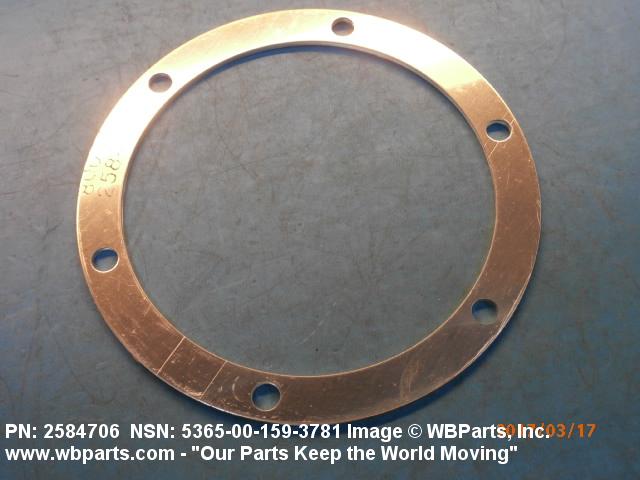

| LAMINATION THICKNESS | 0.002 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 6 |

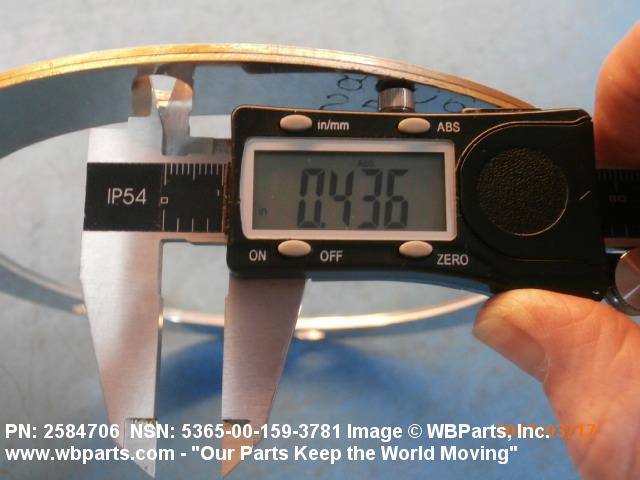

| HOLE DIAMETER | 0.438 INCHES NOMINAL |

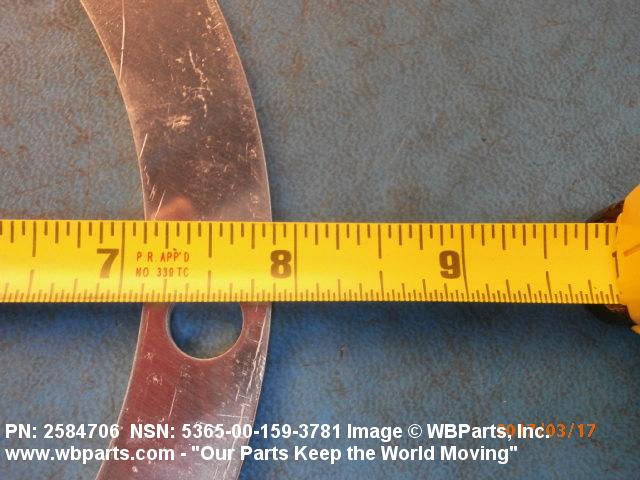

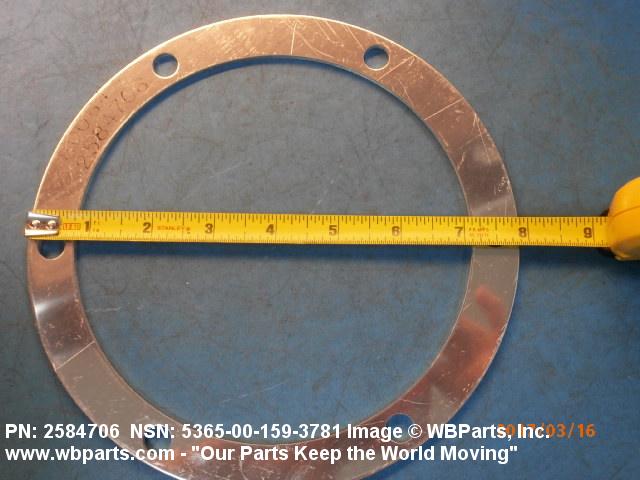

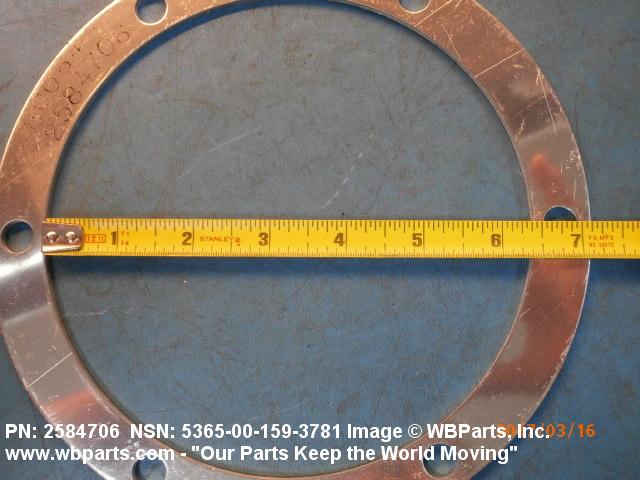

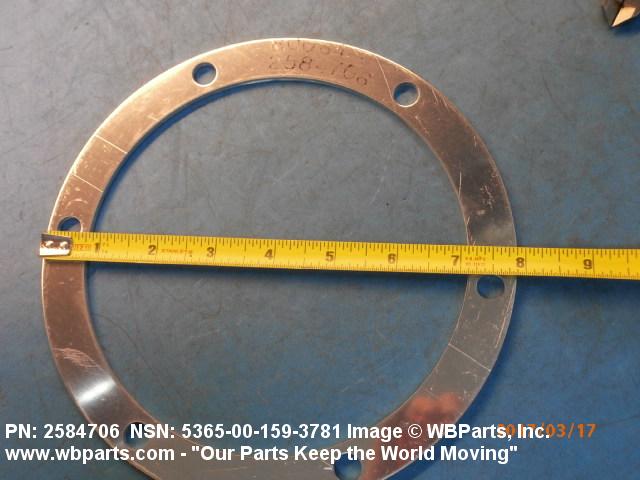

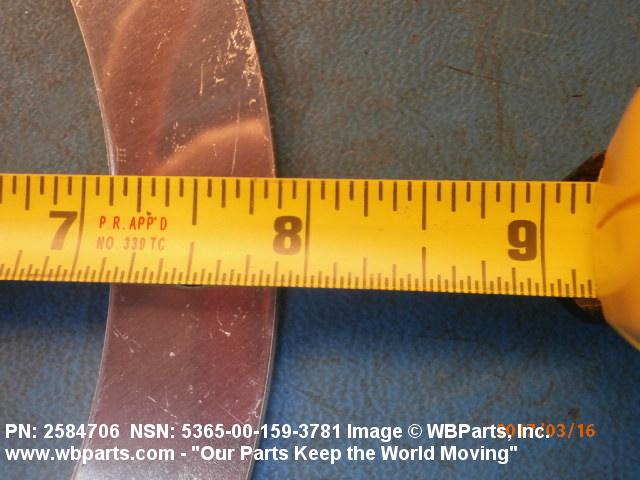

| OUTSIDE DIAMETER | 7.875 INCHES NOMINAL |

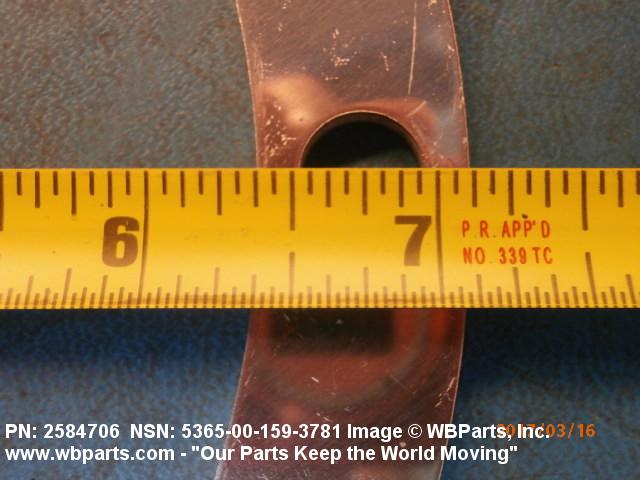

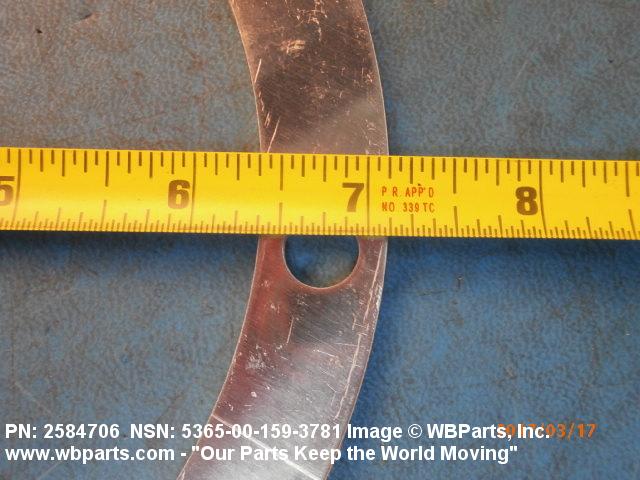

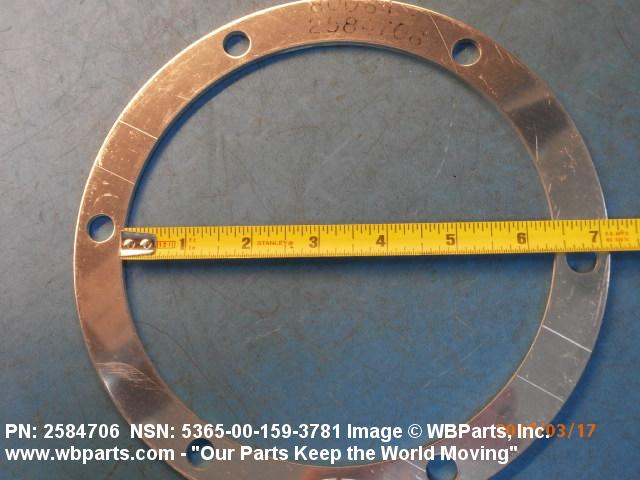

| APERTURE DIAMETER | 6.390 INCHES NOMINAL |
| FEATURES PROVIDED | SEPARABLE |
| SPECIAL FEATURES | HOLES ARE EQUALLY SPACED ON SAME BOLT CIRCLE |
| MANUFACTURERS CODE | 80064 |

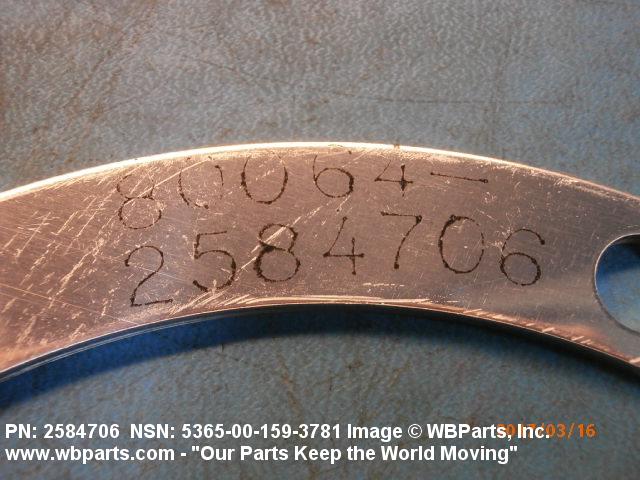

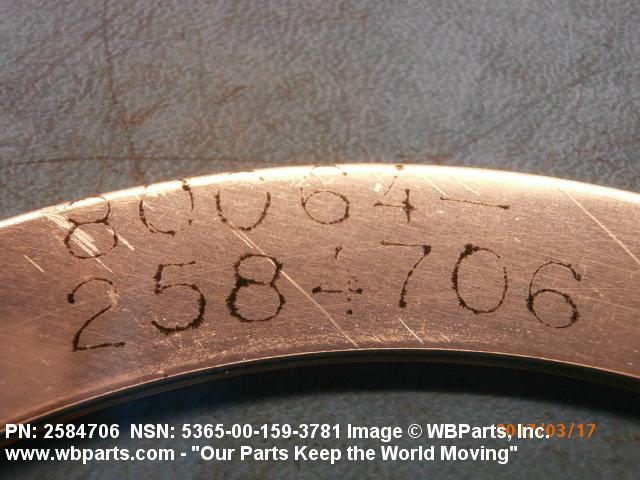

| DESIGN CONTROL REFERENCE | 2584706 |
Restrictions/Controls & Freight Information | NSN 5365-00-159-3781
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
