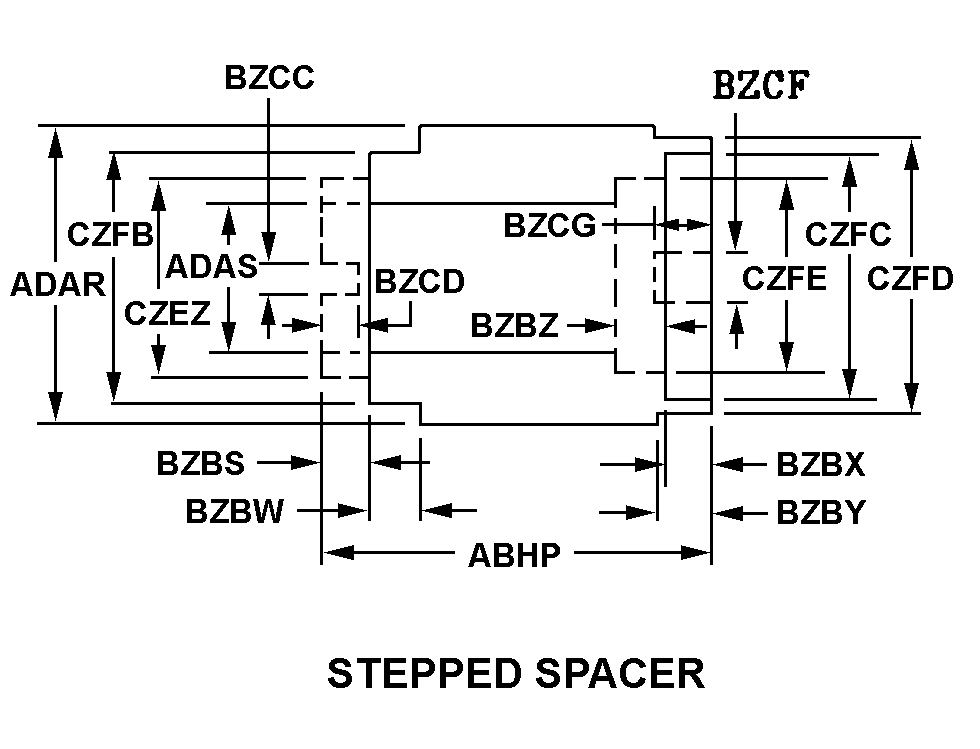

Product Details | STEPPED SPACER
5365-00-138-9532 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The length must exceed 25 percent of the outside diameter or distance across peripheral flats. (When the length, outside diameter, and/or distance across peripheral flats are designated as a tolerance, the maximum dimension will be used to determine compliance.) It must have one or more internal steps (counterbores) and/or external steps on either or both bearing surfaces. Excludes SPACER, OPTICAL ELEMENT. See also WASHER, RECESSED and WASHER, SHOULDERED AND RECESSED.
Part Alternates: 261892-167, 5365-00-138-9532, 00-138-9532, 5365001389532, 261892167, 001389532
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1971 | 00-138-9532 | 22262 ( SPACER, STEPPED ) |
Drawings & Photos | NSN 5365-00-138-9532
Cross Reference | NSN 5365-00-138-9532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 261892-167 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-138-9532
Technical Data | NSN 5365-00-138-9532
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | C1 SPACER, STEPPED |
| OVERALL LENGTH | 1.090 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.214 INCHES MAXIMUM |
| FIRST LEFT STEP WIDTH | 0.045 INCHES NOMINAL |
| FIRST RIGHT STEP WIDTH | 0.045 INCHES NOMINAL |
| FIRST RIGHT COUNTERBORE INSIDE DIAMETER | 0.129 INCHES MAXIMUM |
| MANUFACTURERS CODE | 65092 |
| DESIGN CONTROL REFERENCE | 261892-167 |
Restrictions/Controls & Freight Information | NSN 5365-00-138-9532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-138-9532
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
