NSN 5360-01-436-1026 DS-37, DS37, 01-436-1026
Product Details | EXTENSION HELICAL SPRING
5360-01-436-1026 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: DS-37, DS37, 5360-01-436-1026, 01-436-1026, 5360014361026, 014361026
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 SEP 1996 | 01-436-1026 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-01-436-1026
Cross Reference | NSN 5360-01-436-1026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DS-37 | 80477 | ADAMS RITE AEROSPACE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-436-1026
Technical Data | NSN 5360-01-436-1026
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.184 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.800 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.248 INCHES NOMINAL |
| HOOK RADIUS | 0.250 INCHES NOMINAL BOTH ENDS |

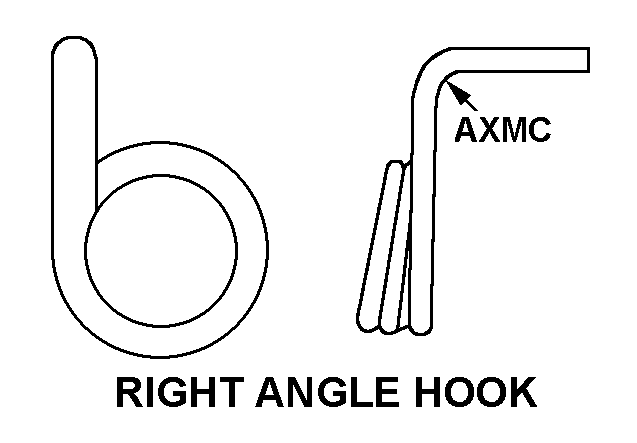

| END STYLE | F50 RIGHT ANGLE HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| STOCK DIAMETER | 0.031 INCHES NOMINAL |
| COIL QUANTITY | 9 |
| MANUFACTURERS CODE | 80477 |
| DESIGN CONTROL REFERENCE | DS-37 |
Restrictions/Controls & Freight Information | NSN 5360-01-436-1026
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
