Product Details | COMPRESSION HELICAL SPRING

5360-01-388-3008 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: LC032B18, LC-032B-18, LC032B18MW, LC-032B-18MW, 5360-01-388-3008, 01-388-3008, 5360013883008, 013883008

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG) NSN Assign. NIIN
53 26 MAR 1994 01-388-3008

Drawings & Photos | NSN 5360-01-388-3008


Cross Reference | NSN 5360-01-388-3008

Part Number Cage Code Manufacturer
LC-032B-18 84830 LEE SPRING CO INC
LC-032B-18MW 1A699 LEE SPRING COMPANY LLC
LC-032B-18MW 84830 LEE SPRING CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-388-3008

Technical Data | NSN 5360-01-388-3008

Characteristic Specifications
STYLE DESIGNATOR A1 CYLINDRICAL
SPRING FREE LENGTH 2.000 INCHES NOMINAL
SPRING SOLID LENGTH 1.120 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER 0.180 INCHES NOMINAL

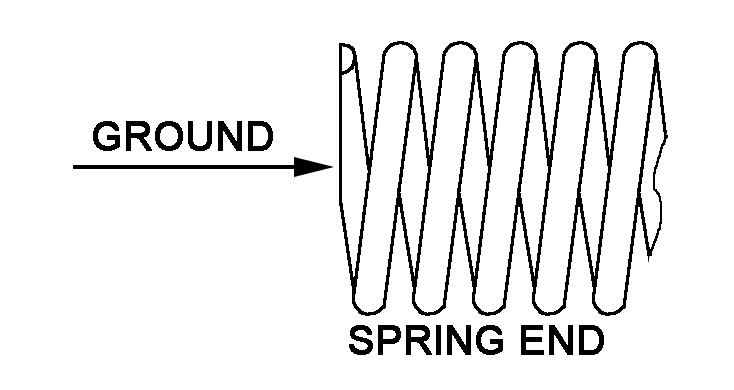

END STYLE E1 GROUND BOTH ENDS
COIL HELIX DIRECTION RIGHT-HAND
STOCK DIAMETER 0.032 INCHES NOMINAL
SPRING DEFLECTION RATE 14.200 POUNDS PER INCH NOMINAL
END ITEM IDENTIFICATION 6105-01-036-5479
SUPPLEMENTARY FEATURES MAT'L MUSIC WIRE; T.O. 8A1-21-10-13 FIG 9-1, IND 44
MANUFACTURERS CODE 84830
DESIGN CONTROL REFERENCE LC-032B-18MW
