Product Details | EXTENSION HELICAL SPRING
5360-01-342-8820 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 6544C0541, 6544C054-1, 5360-01-342-8820, 01-342-8820, 5360013428820, 013428820
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JUL 1991 | 01-342-8820 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-01-342-8820
Demand History | NSN 5360-01-342-8820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-342-8820 | 2019-01-08 | 9 | DIBBS |
| 5360-01-342-8820 | 2017-02-21 | 8 | DIBBS |
| 5360-01-342-8820 | 2014-04-03 | 8 | DIBBS |
| 5360-01-342-8820 | 2012-01-03 | 2 | DIBBS |
Cross Reference | NSN 5360-01-342-8820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6544C054-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-342-8820
Technical Data | NSN 5360-01-342-8820
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 302,TYPE 18-8 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.582 INCHES NOMINAL |
| SPRING FREE LENGTH | 17.518 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.800 INCHES NOMINAL |
| OPENING WIDTH | 1.688 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.180 INCHES NOMINAL BOTH ENDS |

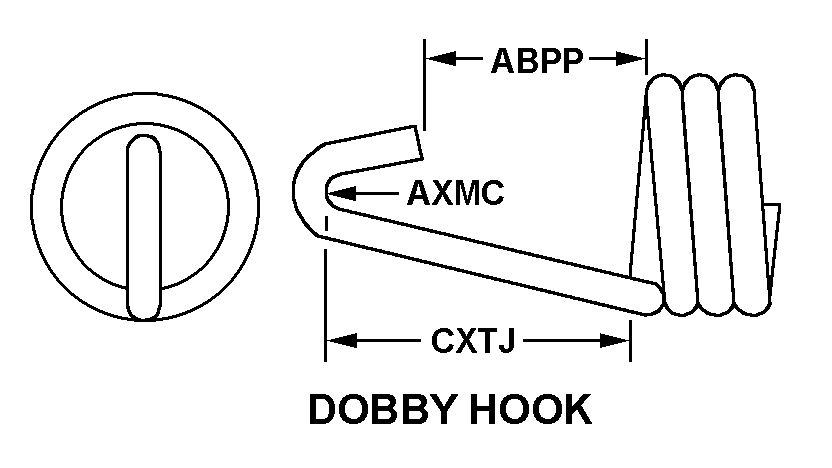

| END STYLE | F1 DOBBY HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 52 |
| DESIGN TYPE | OPEN |
