NSN 5360-01-251-3693 5429501, 01-251-3693, 012513693
Product Details | FLAT SPRING
5360-01-251-3693 A spring made of flat or prebent strip metal. It is designed to apply force in one direction when deflected in the opposite direction. It must be capable of recovering size or shape after deformation. Excludes SPRING (1), LEAF; and springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature).20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 5429501, 5360-01-251-3693, 01-251-3693, 5360012513693, 012513693
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 1987 | 01-251-3693 | 61782 ( SPRING, FLAT ) |

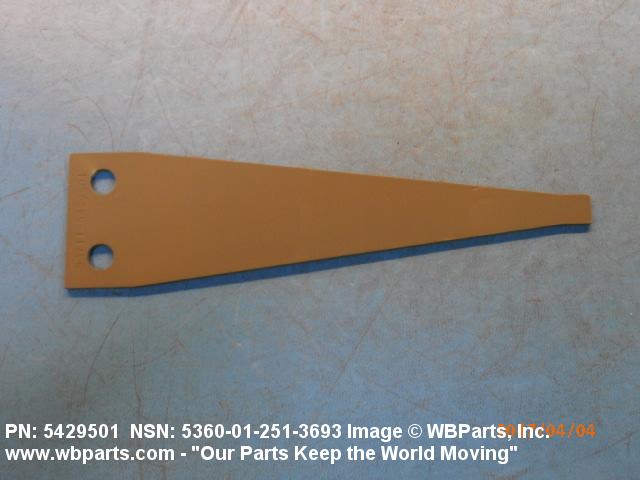

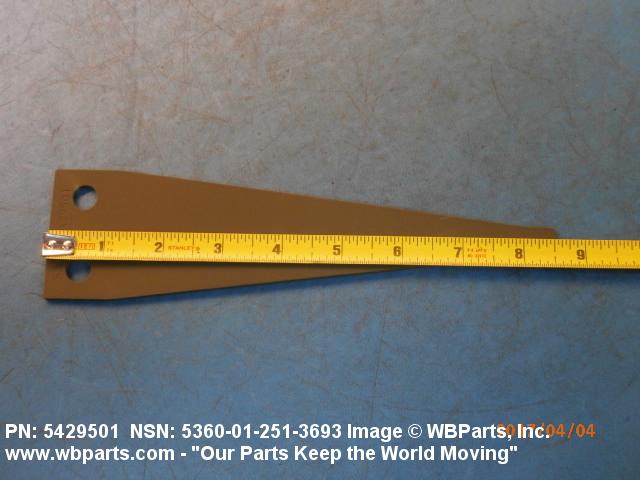

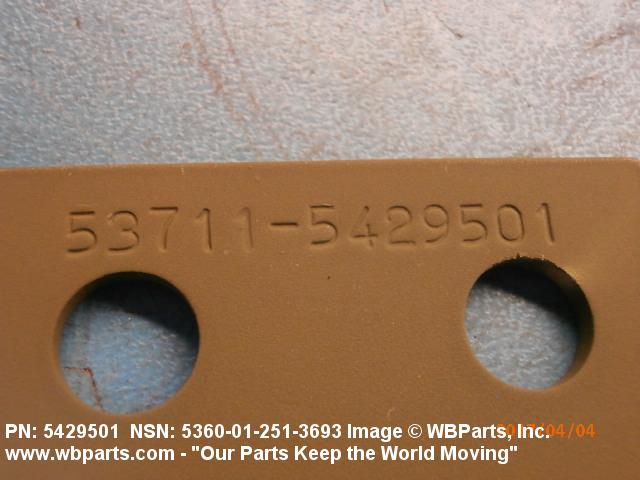

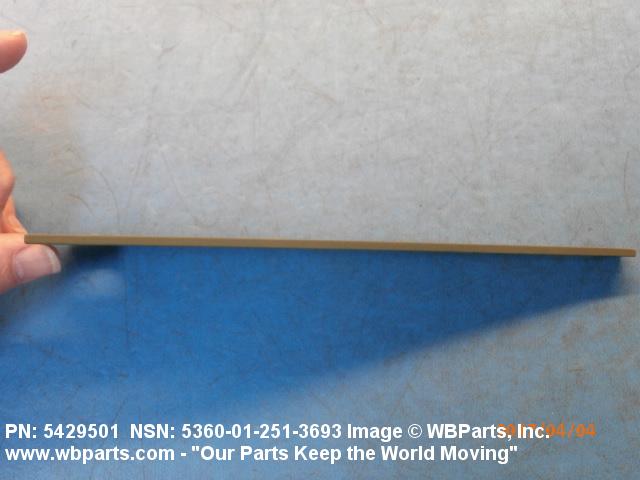

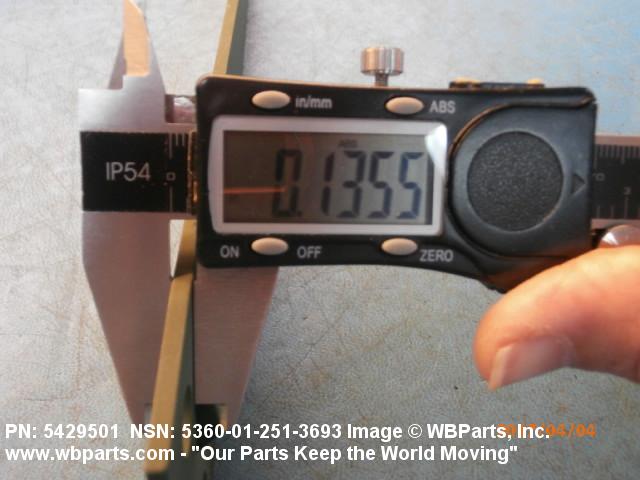

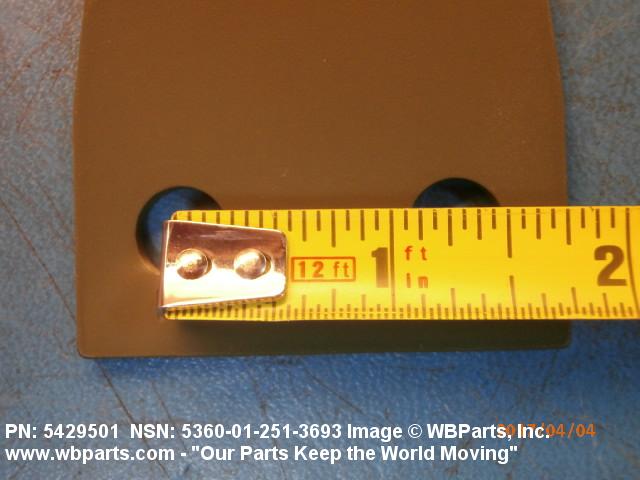

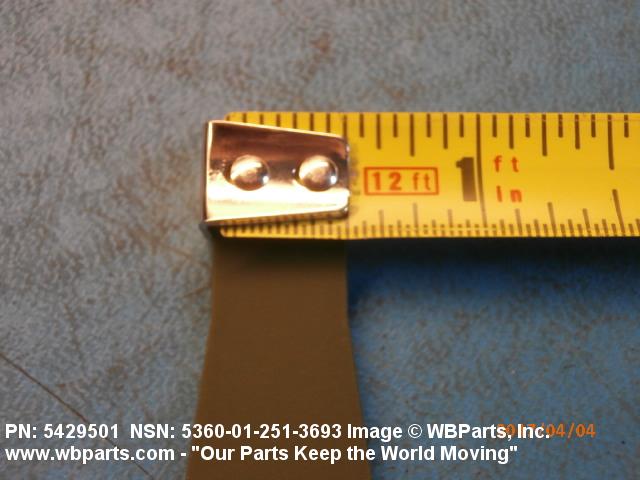

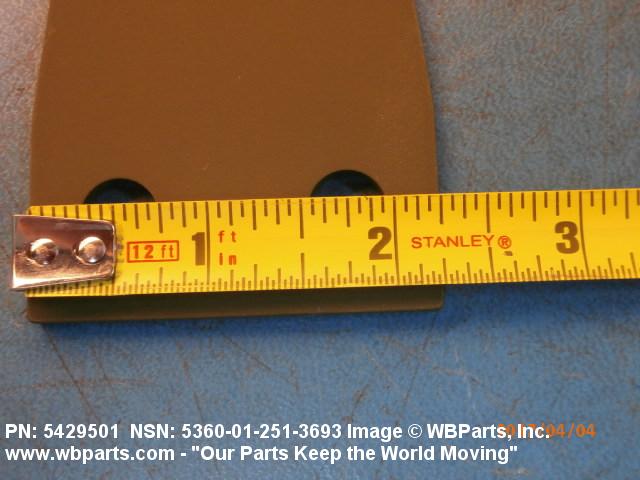

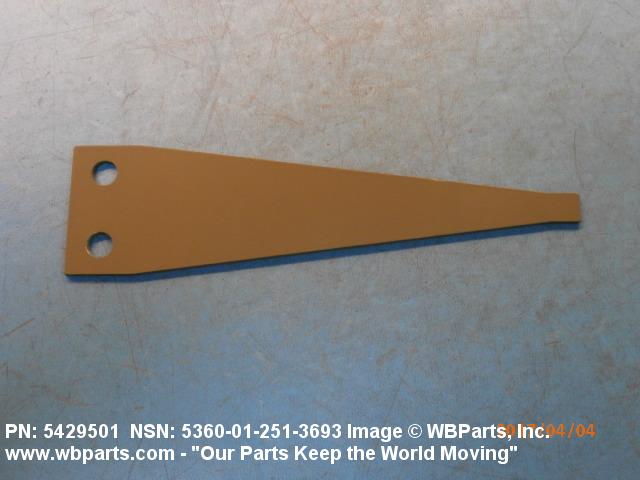

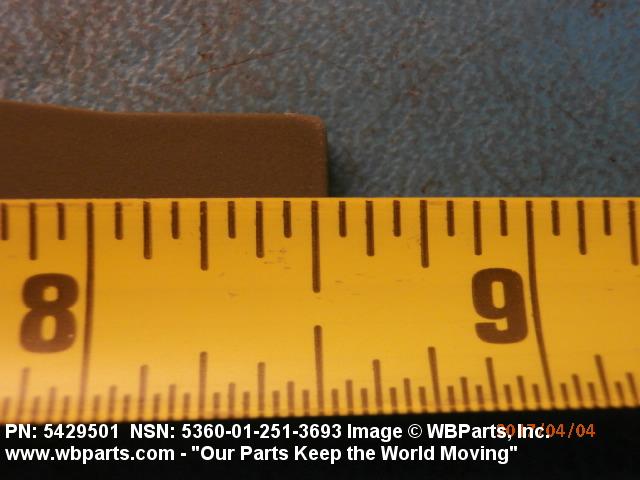

Drawings & Photos | NSN 5360-01-251-3693
Demand History | NSN 5360-01-251-3693
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-251-3693 | 2020-11-327 | 1 | United States |
| 5360-01-251-3693 | 2020-08-232 | 1 | United States |
| 5360-01-251-3693 | 2020-06-173 | 137 | DIBBS |
| 5360-01-251-3693 | 2019-12-336 | 185 | DIBBS |
| 5360-01-251-3693 | 2017-11-306 | 225 | DIBBS |
| 5360-01-251-3693 | 2017-03-76 | 1 | United States |
| 5360-01-251-3693 | 2017-02-53 | 20 | United States |
| 5360-01-251-3693 | 2016-12-350 | 215 | DIBBS |
| 5360-01-251-3693 | 2016-10-292 | 150 | DIBBS |
| 5360-01-251-3693 | 2016-08-223 | 10 | United States |
| 5360-01-251-3693 | 2016-02-40 | 52 | DIBBS |
| 5360-01-251-3693 | 2015-07-187 | 154 | DIBBS |
| 5360-01-251-3693 | 2012-05-135 | 113 | DIBBS |
| 5360-01-251-3693 | 2012-03-90 | 136 | DIBBS |
Cross Reference | NSN 5360-01-251-3693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5429501 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-01-251-3693
Related Products | NSN 5360-01-251-3693
Technical Data | NSN 5360-01-251-3693
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 8.501 INCHES NOMINAL |
| SPECIAL FEATURES | SPRING IS TAPERED |
| (NON-CORE DATA) HOLE QUANTITY | 2 |
| (NON-CORE DATA) HOLE DIAMETER | 0.406 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 5429501 |
Restrictions/Controls & Freight Information | NSN 5360-01-251-3693
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-251-3693
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
