NSN 5360-01-136-4870 12308750, 01-136-4870, 011364870
Product Details | EXTENSION HELICAL SPRING
5360-01-136-4870 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 12308750, 5360-01-136-4870, 01-136-4870, 5360011364870, 011364870
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1982 | 01-136-4870 | 04227 ( SPRING, HELICAL, EXTENSION ) |

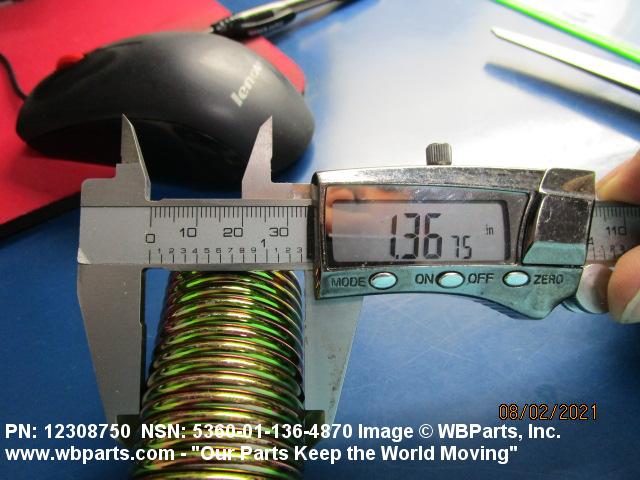

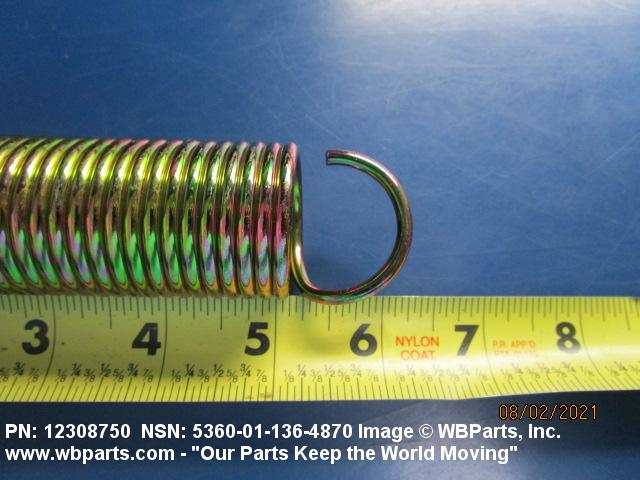

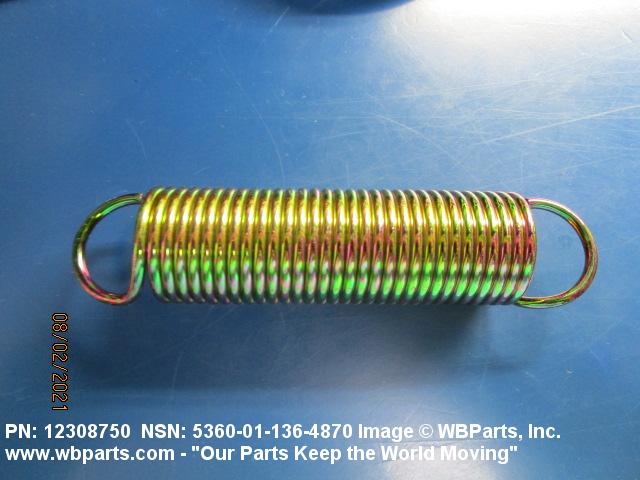

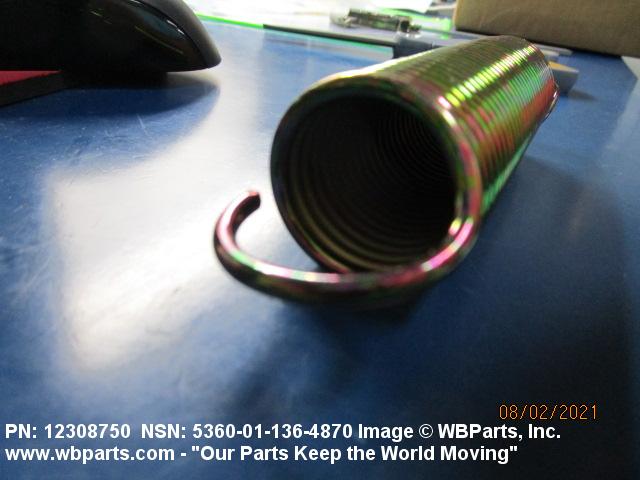

Drawings & Photos | NSN 5360-01-136-4870
Demand History | NSN 5360-01-136-4870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-136-4870 | 2024-01-23 | 15 | DIBBS |
| 5360-01-136-4870 | 2021-07-202 | 10 | United States |
| 12308750 | 2021-04-104 | 2 | United States |
| 5360-01-136-4870 | 2014-10-302 | 1 | DIBBS |
| 5360-01-136-4870 | 2014-10-287 | 1 | DIBBS |
Cross Reference | NSN 5360-01-136-4870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12308750 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-01-136-4870
Related Products | NSN 5360-01-136-4870
Technical Data | NSN 5360-01-136-4870
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 1.105 INCHES NOMINAL |
| SPRING FREE LENGTH | 6.270 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| HOOK RADIUS | 0.521 INCHES NOMINAL BOTH ENDS |
| END STYLE | F41 FULL LOOP BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 28 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 7.600 POUNDS PER INCH MINIMUM AND 9.600 POUNDS PER INCH MAXIMUM |
| SPECIAL FEATURES | 2350-01-179-1028 |
Restrictions/Controls & Freight Information | NSN 5360-01-136-4870
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-136-4870
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
