NSN 5360-01-043-6238 MS245851034, MS24585-1034, AS24585

Product Details | COMPRESSION HELICAL SPRING

5360-01-043-6238 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: MS245851034, MS24585-1034, AS24585, W100E148, W100E-148, 5360-01-043-6238, 01-043-6238, 5360010436238, 010436238

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 JUN 1977	01-043-6238	04226 ( SPRING, HELICAL, COMPRESSION )

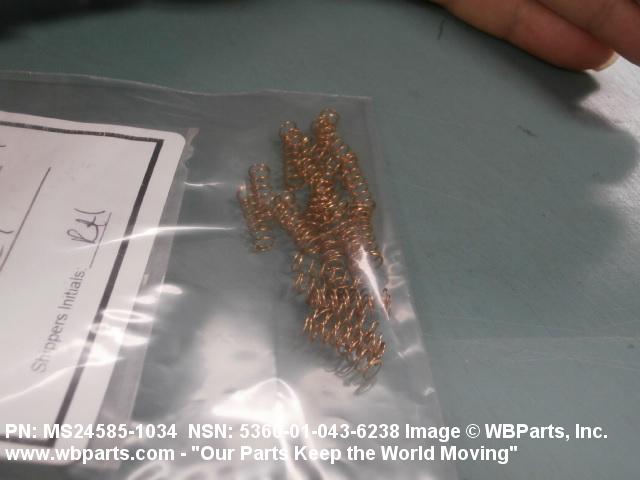

Drawings & Photos | NSN 5360-01-043-6238

Part Number	Request Date	QTY	Origin
5360-01-043-6238	2017-01-29	2	DIBBS
5360-01-043-6238	2016-11-313	2	DIBBS
5360-01-043-6238	2016-04-111	2	DIBBS
MS245851034	2014-07-211	36	Australia
5360-01-043-6238	2014-07-209	1	DIBBS
5360-01-043-6238	2014-07-197	1	DIBBS
5360-01-043-6238	2014-03-64	1	DIBBS
5360-01-043-6238	2014-03-64	2	DIBBS
5360-01-043-6238	2014-02-49	1	DIBBS
5360-01-043-6238	2014-02-49	2	DIBBS
MS24585-1034	2013-11-309	8	Australia
MS245851034	2013-04-112	27	AU

Cross Reference | NSN 5360-01-043-6238

Part Number	Cage Code	Manufacturer
AS24585	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24585-1034	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24585-1034	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
W100E-148	53086	WADE ENTERPRISES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-043-6238

Compare

Related Products | NSN 5360-01-043-6238

5360-01-043-6239, 5360-01-043-6240, 5360-01-043-6241, 5360-01-043-6243, 5360-01-043-6244

Technical Data | NSN 5360-01-043-6238

Characteristic	Specifications
MATERIAL	STEEL UNS K08500 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A1 CYLINDRICAL
INSIDE DIAMETER	0.148 INCHES NOMINAL
SPRING FREE LENGTH	0.560 INCHES NOMINAL
SPRING SOLID LENGTH	0.128 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER	0.180 INCHES NOMINAL
END STYLE	E4 SQUARED AND GROUND BOTH ENDS
COIL HELIX DIRECTION	RIGHT-HAND OR LEFT-HAND
SPRING DEFLECTION RATE	3.700 POUNDS PER INCH NOMINAL

Restrictions/Controls & Freight Information | NSN 5360-01-043-6238

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	177940	SPRINGS:SPRINGS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	579	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5360-01-043-6238

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
