NSN 5360-00-949-5630 101A141DY1, 00-949-5630, 009495630
Product Details | COMPRESSION HELICAL SPRING
5360-00-949-5630 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 101A141DY1, 5360-00-949-5630, 00-949-5630, 5360009495630, 009495630
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 1966 | 00-949-5630 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

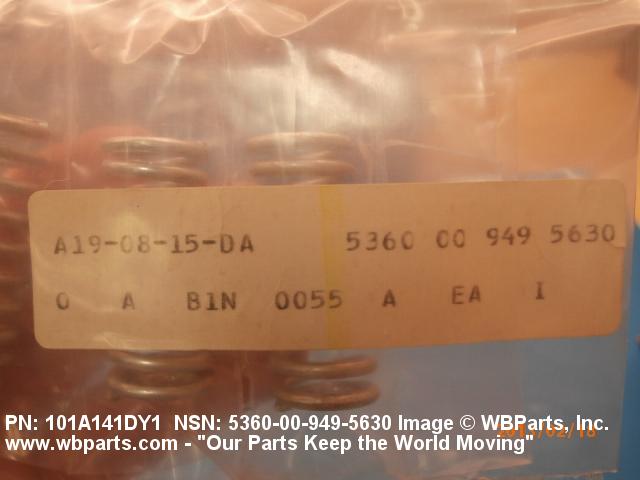

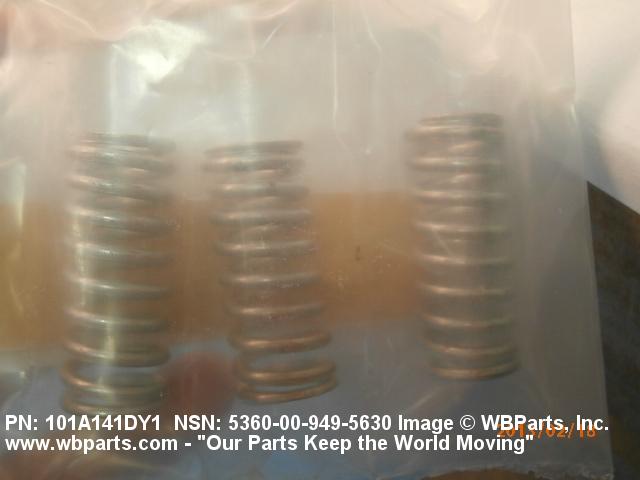

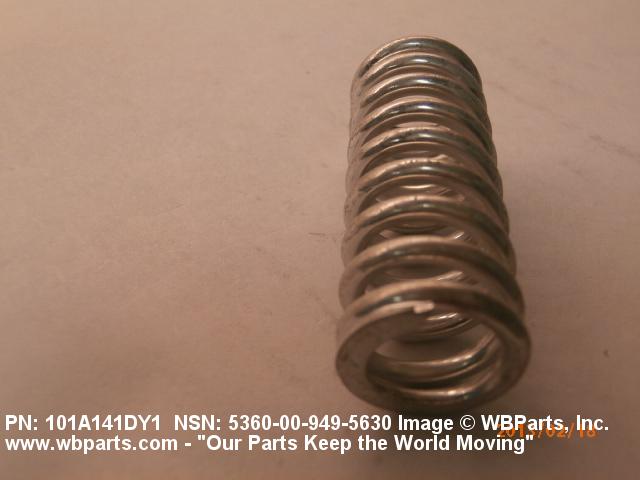

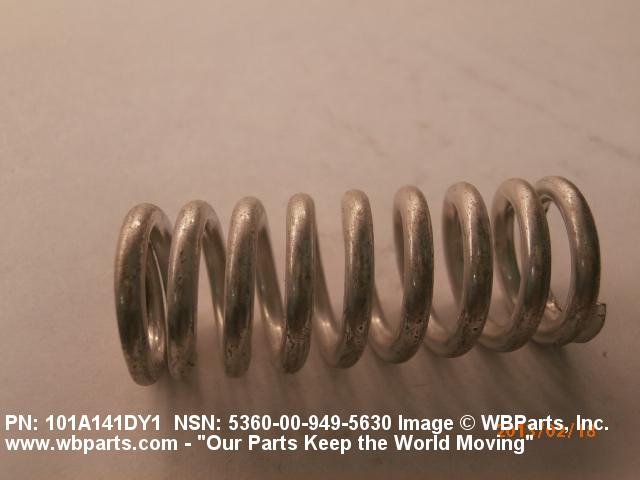

Drawings & Photos | NSN 5360-00-949-5630
Demand History | NSN 5360-00-949-5630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-949-5630 | 2019-04-101 | 5 | US |
| 5360-00-949-5630 | 2019-04-101 | 5 | US |
| 5360-00-949-5630 | 2013-02-51 | 1 | United States |
| 5360-00-949-5630 | 2013-01-15 | 1 | United States |
Cross Reference | NSN 5360-00-949-5630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101A141DY1 | 03502 | GENERAL ELECTRIC CO NAVAL AND DRIVE TURBINE SYSTEMS DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-949-5630
Technical Data | NSN 5360-00-949-5630
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |

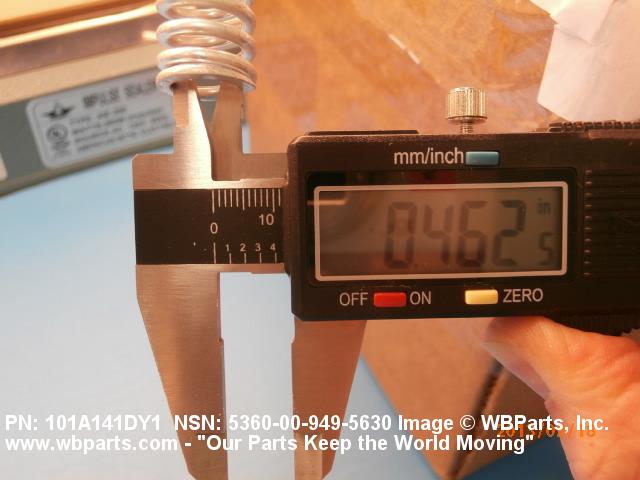

| INSIDE DIAMETER | 0.475 INCHES NOMINAL |

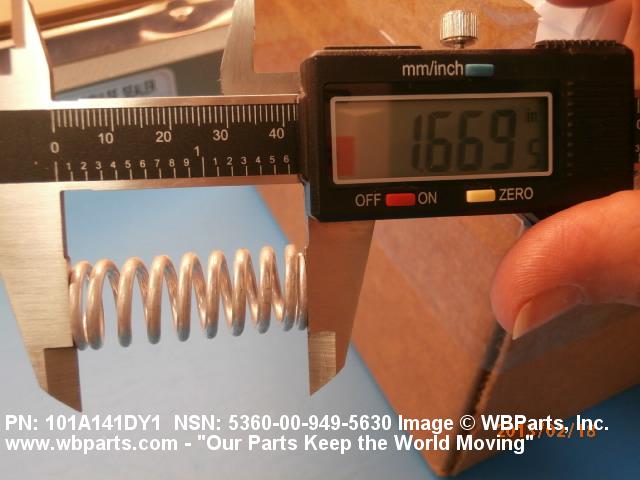

| SPRING FREE LENGTH | 1.680 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.900 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.675 INCHES NOMINAL |
| END STYLE | E4 SQUARED AND GROUND BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 9-1/2 |
| SPRING DEFLECTION RATE | 100.000 POUNDS PER INCH NOMINAL |
| MANUFACTURERS CODE | 03502 |
| DESIGN CONTROL REFERENCE | 101A141DY1 |
Restrictions/Controls & Freight Information | NSN 5360-00-949-5630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-949-5630
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
