NSN 5360-00-832-9385 5709131, 570913-1, 00-832-9385
Product Details | COMPRESSION HELICAL SPRING
5360-00-832-9385 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 5709131, 570913-1, 5360-00-832-9385, 00-832-9385, 5360008329385, 008329385
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1967 | 00-832-9385 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

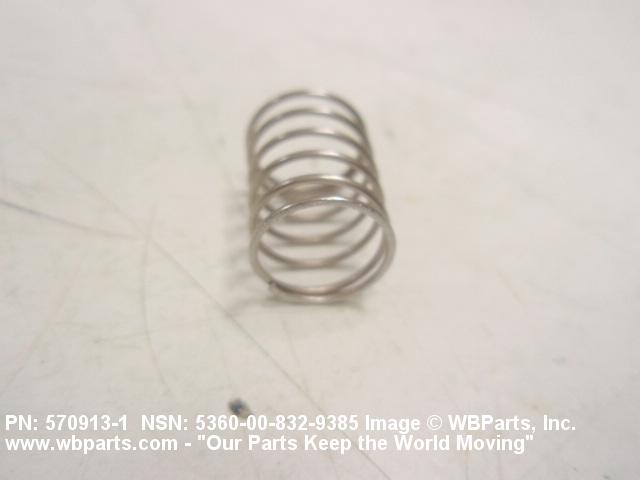

Drawings & Photos | NSN 5360-00-832-9385
Demand History | NSN 5360-00-832-9385
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-832-9385 | 2010-05-124 | 10 | Korea |
Cross Reference | NSN 5360-00-832-9385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 570913-1 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-832-9385
Technical Data | NSN 5360-00-832-9385
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423,COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| INSIDE DIAMETER | 0.416 INCHES MINIMUM AND 0.436 INCHES MAXIMUM |
| SPRING FREE LENGTH | 0.630 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| SPRING SOLID LENGTH | 0.208 INCHES MAXIMUM |
| SPRING SOLID OUTSIDE DIAMETER | 0.480 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SPRING FREE OUTSIDE DIAMETER | 0.480 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| END STYLE | E4 SQUARED AND GROUND BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 6.5 |
| BORE DIAMETER | 0.510 INCHES MINIMUM |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 570913-1 |
Restrictions/Controls & Freight Information | NSN 5360-00-832-9385
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-832-9385
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
