Product Details | EXTENSION HELICAL SPRING
5360-00-805-3685 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 10895388, 2350G2000, 5360-00-805-3685, 00-805-3685, 5360008053685, 008053685
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-805-3685 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-805-3685
Demand History | NSN 5360-00-805-3685
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-805-3685 | 2021-01-14 | 180 | DIBBS |
| 5360-00-805-3685 | 2021-01-06 | 180 | DIBBS |
| 5360-00-805-3685 | 2014-09-245 | 228 | DIBBS |
| 5360-00-805-3685 | 2010-04-106 | 3 | United Arab Emirates |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-805-3685
Related Products | NSN 5360-00-805-3685
Technical Data | NSN 5360-00-805-3685
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.570 INCHES NOMINAL |
| SPRING FREE LENGTH | 5.250 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OPENING WIDTH | 0.3750 INCHES NOMINAL BOTH ENDS |
| COIL TO HOOK INSIDE LENGTH | 0.7050 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.3437 INCHES NOMINAL BOTH ENDS |

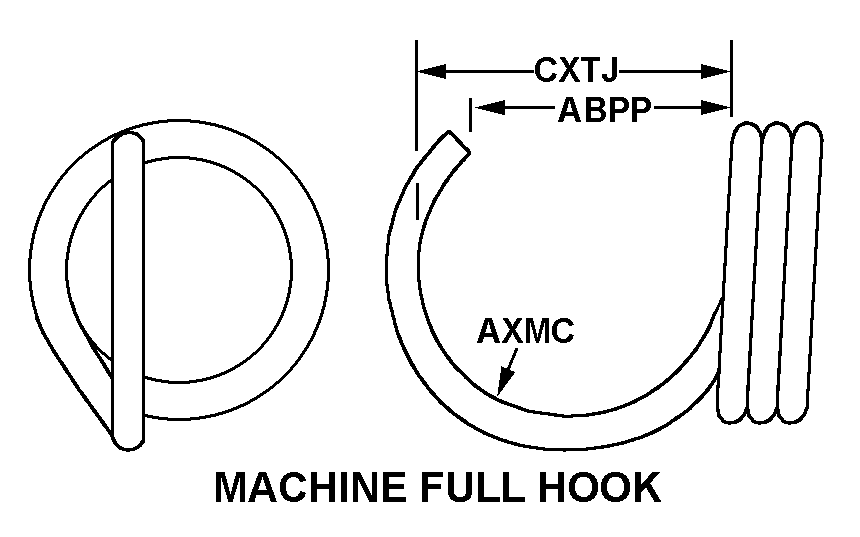

| END STYLE | F38 MACHINE FULL HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 21.500 POUNDS MINIMUM AND 25.500 POUNDS MAXIMUM |
| COIL QUANTITY | 30 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 11.750 POUNDS PER INCH NOMINAL |
| SPRING LENGTH UNDER LOAD | 7.250 INCHES NOMINAL |
