NSN 5360-00-805-2146 C551298, C5-51-298, 00-805-2146
Product Details | COMPRESSION HELICAL SPRING
5360-00-805-2146 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: C551298, C5-51-298, 5360-00-805-2146, 00-805-2146, 5360008052146, 008052146
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-805-2146 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
Drawings & Photos | NSN 5360-00-805-2146
Cross Reference | NSN 5360-00-805-2146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5-51-298 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-805-2146
Technical Data | NSN 5360-00-805-2146
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| INSIDE DIAMETER | 0.185 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.500 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.125 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.215 INCHES NOMINAL |

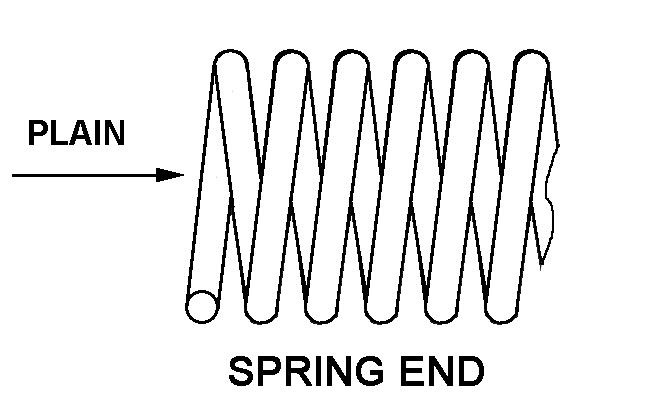

| END STYLE | E3 PLAIN BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 0.144 POUNDS MINIMUM AND 0.176 POUNDS MAXIMUM |
| COIL QUANTITY | 7-1/2 |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | C5-51-298 |
Restrictions/Controls & Freight Information | NSN 5360-00-805-2146
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
