NSN 5360-00-779-6898 2738481, 2-73848-1, 00-779-6898
Product Details | EXTENSION HELICAL SPRING
5360-00-779-6898 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 2738481, 2-73848-1, 5360-00-779-6898, 00-779-6898, 5360007796898, 007796898
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-779-6898 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-779-6898
Demand History | NSN 5360-00-779-6898
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2-73848-1 | 2022-09-265 | 81 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-779-6898
Related Products | NSN 5360-00-779-6898
Technical Data | NSN 5360-00-779-6898
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 631 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5673 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.450 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.900 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.550 INCHES NOMINAL |
| OPENING WIDTH | 0.250 INCHES NOMINAL BOTH ENDS |
| COIL TO HOOK INSIDE LENGTH | 0.500 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.150 INCHES NOMINAL BOTH ENDS |

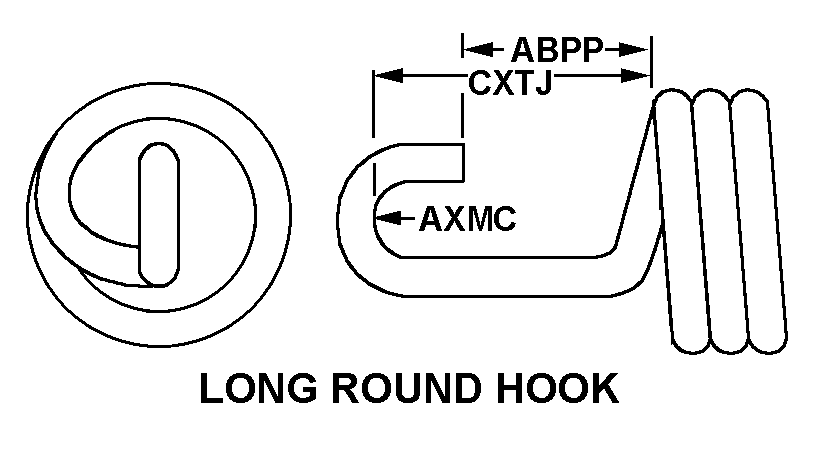

| END STYLE | F30 LONG ROUND HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 7.00 POUNDS NOMINAL |
| COIL QUANTITY | 15 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 4.600 POUNDS PER INCH NOMINAL |
| SPRING LENGTH UNDER LOAD | 3.720 INCHES NOMINAL |
| SPECIAL FEATURES | WIRE MATERIAL STEEL 17-7PH COND C; WIRE DIAMETER 0.050 |
| END ITEM IDENTIFICATION | NHA 3-73105, F5 ACFT |
| SUPPLEMENTARY FEATURES | SPRING, CAM FOLLOWER, HORIZONTAL TAIL OPERATING |
Restrictions/Controls & Freight Information | NSN 5360-00-779-6898
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-779-6898
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | XE | SU:T-38 TALON |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
