Product Details | CONSTANT FORCE SPRING

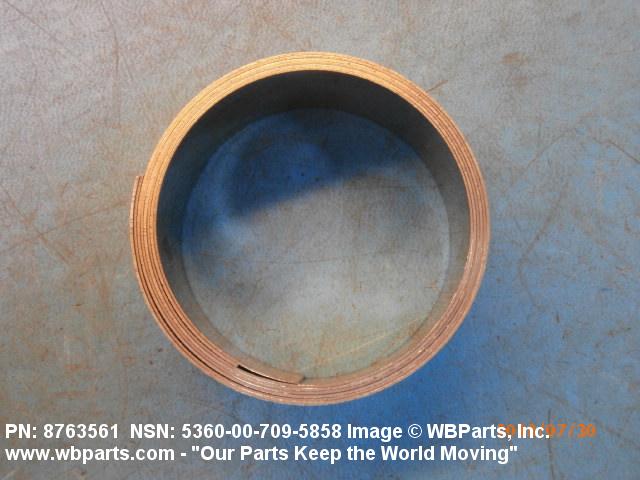

5360-00-709-5858 A spring made from prestressed strip of material that coils tightly around successive layers of itself. The outer end may be specially shaped for attachment. The inner end is usually square cut and free to rotate over a pulley or roller. The coils are formed to remain in a coiled position without expanding. Excludes SPRING (1), SPIRAL, TORSION.

Part Alternates: 8763561, 5360-00-709-5858, 00-709-5858, 5360007095858, 007095858

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-709-5858	40117 ( SPRING, CONSTANT FORCE )

Drawings & Photos | NSN 5360-00-709-5858

Part Number	Request Date	QTY	Origin
5360-00-709-5858	2023-07-197	50	Taiwan
5360-00-709-5858	2023-05-131	59	DIBBS
5360-00-709-5858	2023-04-120	59	DIBBS
5360-00-709-5858	2022-03-83	137	DIBBS
5360-00-709-5858	2022-02-58	88	DIBBS
5360-00-709-5858	2021-08-216	120	KR
5360-00-709-5858	2021-08-216	120	KR
5360-00-709-5858	2021-02-41	91	DIBBS
5360-00-709-5858	2020-04-108	136	United States
5360-00-709-5858	2020-02-40	216	DIBBS
5360-00-709-5858	2019-07-209	186	DIBBS
5360-00-709-5858	2018-07-192	30	Taiwan
5360-00-709-5858	2018-04-91	354	DIBBS
5360-00-709-5858	2018-01-23	50	Taiwan
5360-00-709-5858	2016-11-333	269	DIBBS
5360-00-709-5858	2016-11-325	269	DIBBS
5360-00-709-5858	2014-09-253	25	Chile
5360-00-709-5858	2012-03-62	650	DIBBS
5360-00-709-5858	2011-09-259	300	TR
5360-00-709-5858	2011-09-256	2	Thailand
5360-00-709-5858	2011-08-216	575	Turkey
5360-00-709-5858	2011-03-69	286	DIBBS
5360-00-709-5858	2010-09-273	200	DIBBS
5360-00-709-5858	2010-04-98	400	DIBBS
5360-00-709-5858	2009-11-331	300	DIBBS

Cross Reference | NSN 5360-00-709-5858

Part Number	Cage Code	Manufacturer
5360007095858	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8763561	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-00-709-5858

Compare

Related Products | NSN 5360-00-709-5858

5360-00-709-6265, 5360-00-709-7144, 5360-00-709-7145, 5360-00-709-7148, 5360-00-709-7163

Technical Data | NSN 5360-00-709-5858

Characteristic	Specifications
MATERIAL	STEEL COMP 301 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	Q1 COIL

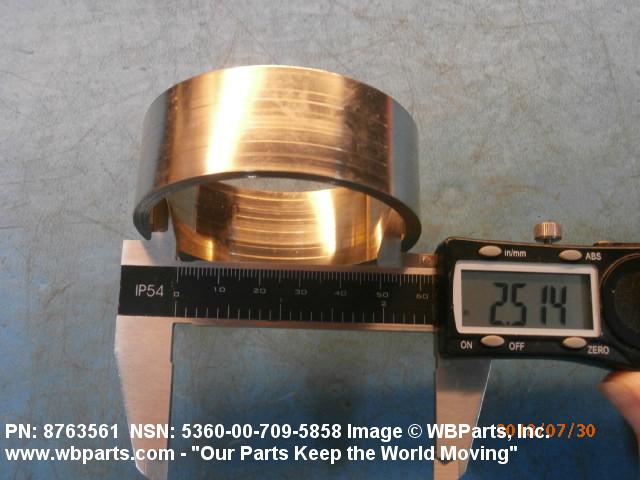

INSIDE DIAMETER	2.320 INCHES MINIMUM AND 2.630 INCHES MAXIMUM

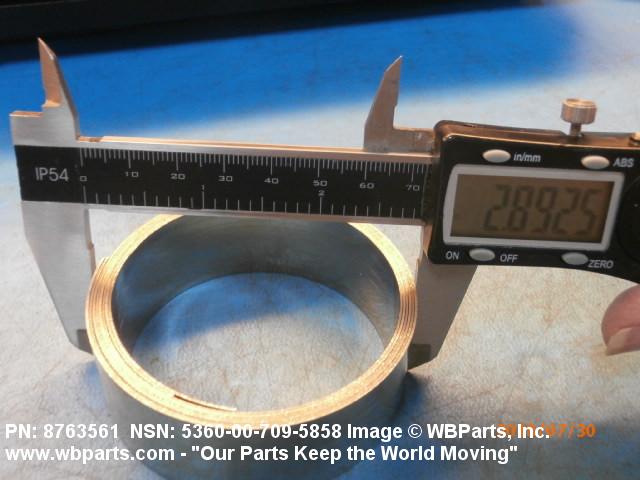

SPRING FREE OUTSIDE DIAMETER	2.908 INCHES MAXIMUM
END LENGTH	15.880 INCHES NOMINAL

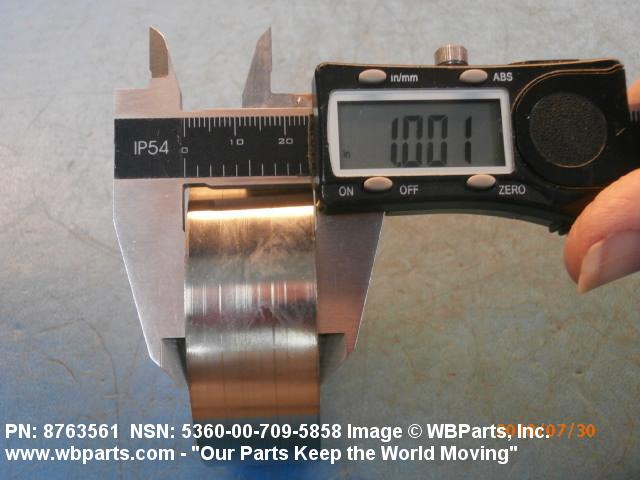

MATERIAL WIDTH	1.000 INCHES NOMINAL

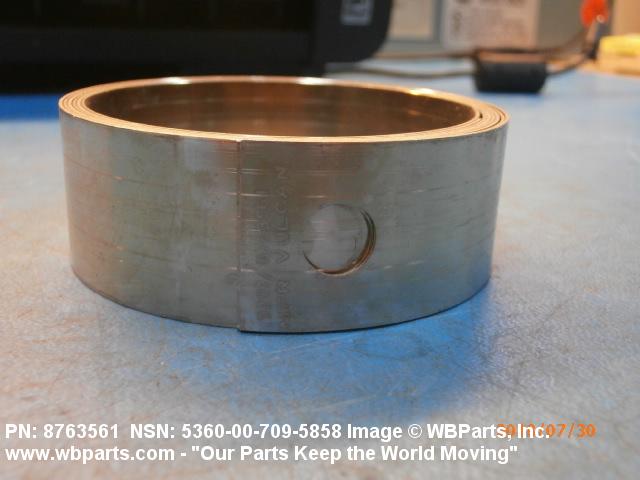

HOLE DIAMETER	0.380 INCHES NOMINAL
