Product Details | EXTENSION HELICAL SPRING

5360-00-598-8798 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: 2826700771337PC21, 282-6700-771337PC21, 296843PCM3, 2968-43PCM3, 31967001188258PCN3, 319-6700-1188258PCN3, 31967001188305PCM3, 319-6700-1188305PCM3, 336835PCM3, 3368-35PCM3, 336861PCN3, 3368-61PCN3, 5646700936260PCM3, 564-6700-936260PCM3, 5360-00-598-8798, 00-598-8798, 5360005988798, 005988798

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-598-8798

Drawings & Photos | NSN 5360-00-598-8798


Cross Reference | NSN 5360-00-598-8798

Part Number Cage Code Manufacturer
282-6700-771337PC21 80064 NAVAL SHIP SYSTEMS COMMAND
2968-43PCM3 96169 ELECTRIC BOAT CORPORATION
319-6700-1188258PCN3 80064 NAVAL SHIP SYSTEMS COMMAND
319-6700-1188305PCM3 80064 NAVAL SHIP SYSTEMS COMMAND
3368-35PCM3 96169 ELECTRIC BOAT CORPORATION
3368-61PCN3 96169 ELECTRIC BOAT CORPORATION
564-6700-936260PCM3 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5360-00-598-8798

Technical Data | NSN 5360-00-598-8798

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
STYLE DESIGNATOR B1 CYLINDRICAL
INSIDE DIAMETER 2.500 INCHES NOMINAL
SPRING FREE LENGTH 25.438 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER 3.625 INCHES NOMINAL

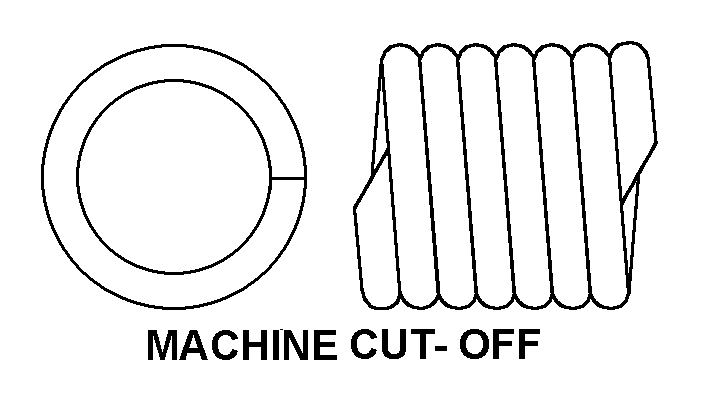

END STYLE F12 MACHINE CUT-OFF BOTH ENDS
COIL HELIX DIRECTION RIGHT-HAND
LOAD RATING 845.00 POUNDS NOMINAL
COIL QUANTITY 44-1/4
DESIGN TYPE CLOSED
SPRING LENGTH UNDER LOAD 11.188 INCHES NOMINAL
