NSN 5360-00-559-7767 00-559-7767, 005597767
Product Details | EXTENSION HELICAL SPRING
5360-00-559-7767 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 5360-00-559-7767, 00-559-7767, 5360005597767, 005597767
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-559-7767 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-559-7767
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-559-7767
Technical Data | NSN 5360-00-559-7767
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.410 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.188 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.490 INCHES NOMINAL |
| HOOK RADIUS | 0.205 INCHES NOMINAL BOTH ENDS |

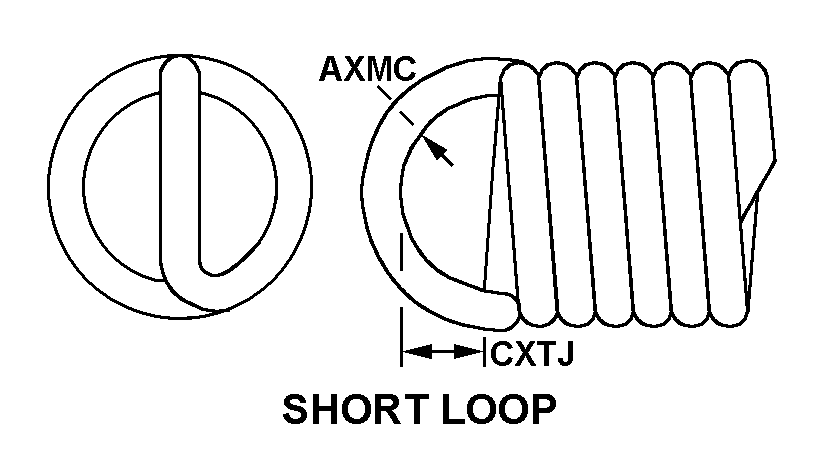

| END STYLE | F19 SHORT LOOP BOTH ENDS |
| COIL HELIX DIRECTION | LEFT-HAND |
| DESIGN TYPE | CLOSED |
| MANUFACTURERS CODE | 51553 |
| DESIGN CONTROL REFERENCE | 15245 |
Restrictions/Controls & Freight Information | NSN 5360-00-559-7767
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
