NSN 5360-00-487-6304 8033511, 803351-1, 00-487-6304
Product Details | TORSION SPIRAL SPRING
5360-00-487-6304 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 8033511, 803351-1, 5360-00-487-6304, 00-487-6304, 5360004876304, 004876304
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06-JUN-69 | 00-487-6304 | 04229 ( SPRING, SPIRAL, TORSION ) |

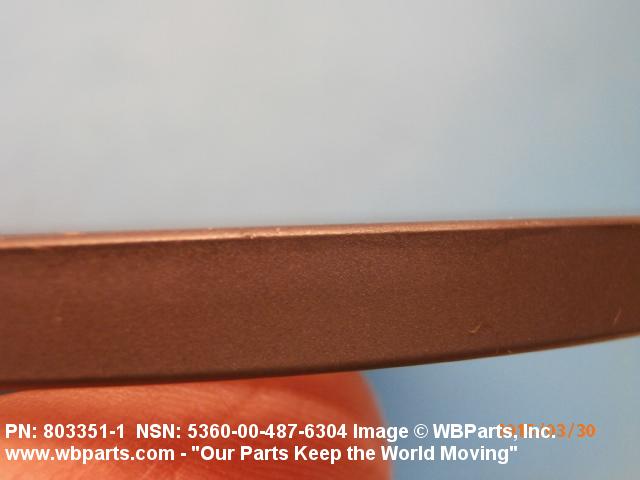

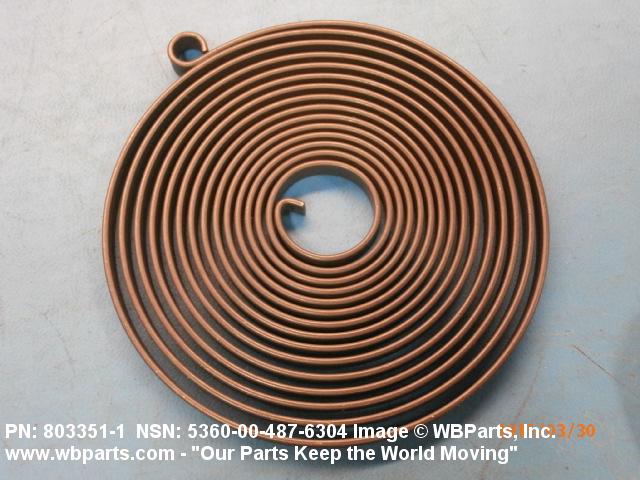

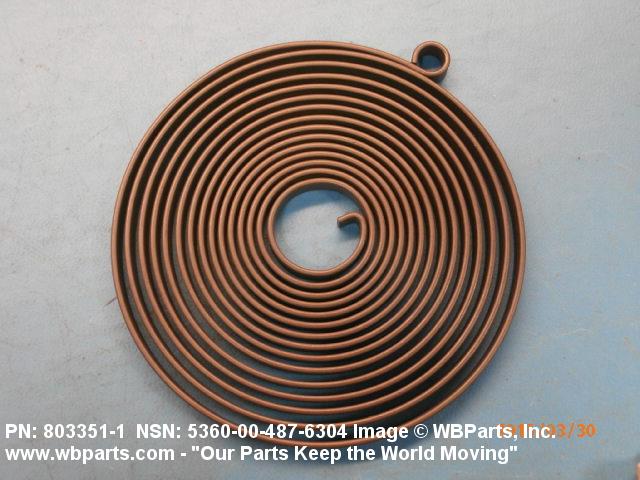

Drawings & Photos | NSN 5360-00-487-6304
Demand History | NSN 5360-00-487-6304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-487-6304 | 2015-03-90 | 5 | United States |
| 5360-00-487-6304 | 2015-03-90 | 1 | US |
| 5360-00-487-6304 | 2015-03-90 | 5 | US |
| 5360-00-487-6304 | 2015-03-84 | 7 | United States |
| 5360-00-487-6304 | 2015-03-64 | 7 | United States |
| 5360-00-487-6304 | 2015-01-30 | 10 | United States |
| 5360-00-487-6304 | 2015-01-14 | 10 | US |
| 5360-00-487-6304 | 2015-01-14 | 10 | US |
| 5360-00-487-6304 | 2014-04-93 | 4 | DIBBS |
| 5360-00-487-6304 | 2013-10-304 | 3 | DIBBS |
| 5360-00-487-6304 | 2012-08-227 | 9 | DIBBS |
| 5360-00-487-6304 | 2012-05-129 | 6 | DIBBS |
| 5360-00-487-6304 | 2012-02-32 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-487-6304
Technical Data | NSN 5360-00-487-6304
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7947 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| END RADIUS | 0.135 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |

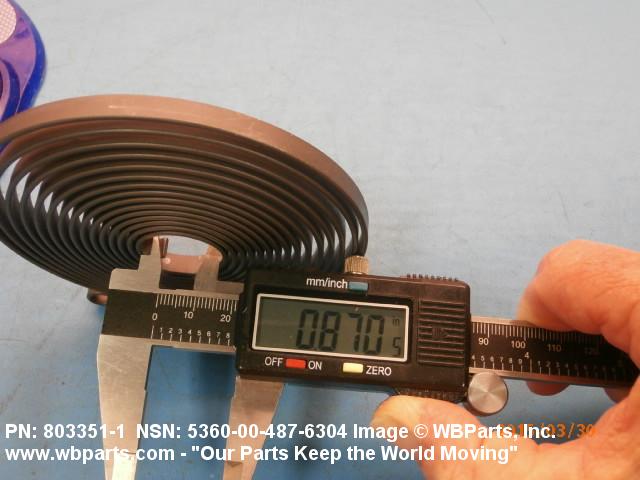

| HUB SIZE | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| HUB END SIZE | 0.243 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |

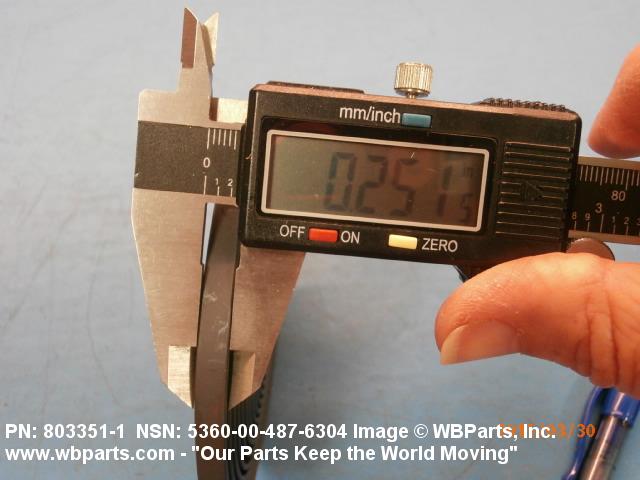

| STOCK WIDTH | 0.250 INCHES NOMINAL |
| STOCK THICKNESS | 0.063 INCHES NOMINAL |
| MATERIAL HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 49.0 ROCKWELL C MAXIMUM |
| MANUFACTURERS CODE | 64547 |
| DESIGN CONTROL REFERENCE | 803351-1 |
Restrictions/Controls & Freight Information | NSN 5360-00-487-6304
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
