NSN 5360-00-427-8884 1747S7L, 691S8L, 00-427-8884
Product Details | EXTENSION HELICAL SPRING
5360-00-427-8884 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 1747S7L, 691S8L, 5360-00-427-8884, 00-427-8884, 5360004278884, 004278884
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-427-8884 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-427-8884
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-427-8884
Technical Data | NSN 5360-00-427-8884
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |

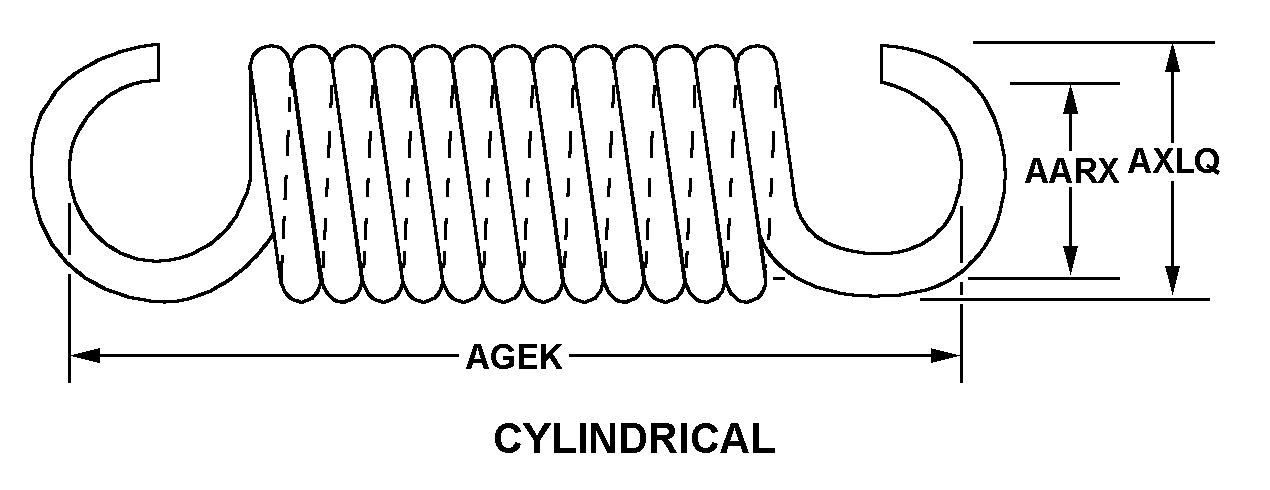

| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.242 INCHES MINIMUM AND 0.258 INCHES MAXIMUM |
| SPRING FREE LENGTH | 1.688 INCHES MINIMUM AND 1.782 INCHES MAXIMUM |
| SPRING FREE OUTSIDE DIAMETER | 0.352 INCHES MINIMUM AND 0.368 INCHES MAXIMUM |
| HOOK RADIUS | 0.125 INCHES NOMINAL BOTH ENDS |

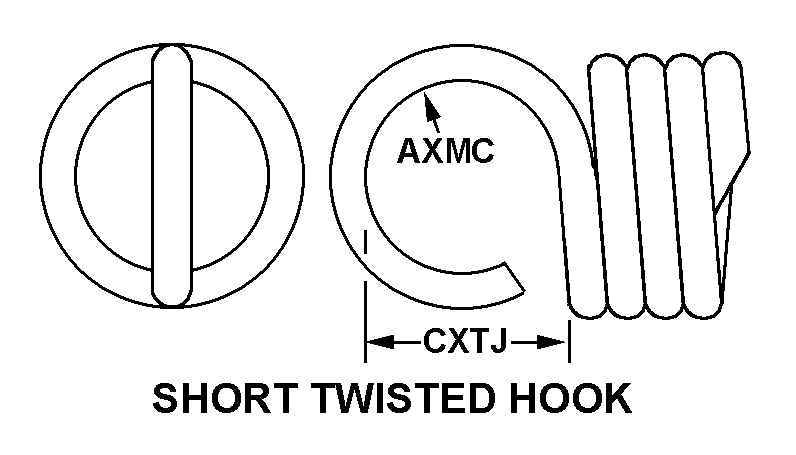

| END STYLE | F17 SHORT TWISTED HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 25.000 POUNDS PER INCH NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-427-8884
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
