NSN 5360-00-385-8006 8404310, 00-385-8006, 003858006
Product Details | EXTENSION HELICAL SPRING
5360-00-385-8006 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 8404310, 5360-00-385-8006, 00-385-8006, 5360003858006, 003858006
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-385-8006 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-385-8006
Cross Reference | NSN 5360-00-385-8006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8404310 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-385-8006
Technical Data | NSN 5360-00-385-8006
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470,COMP A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SPRING FREE LENGTH | 6.216 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.671 INCHES NOMINAL |
| COIL TO HOOK INSIDE LENGTH | 1.750 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.250 INCHES NOMINAL BOTH ENDS |

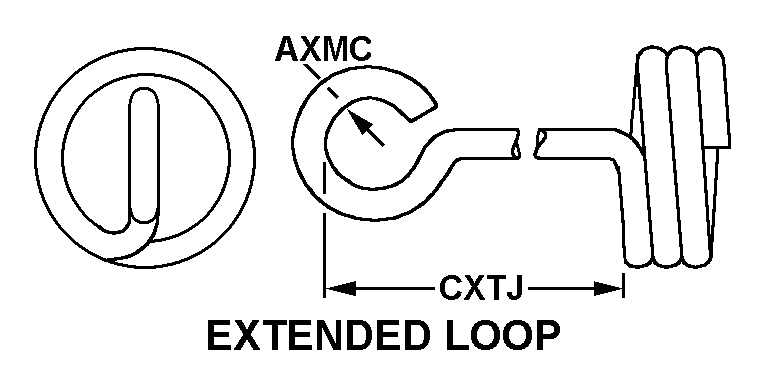

| END STYLE | F7 EXTENDED LOOP BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 26.00 POUNDS MINIMUM AND 31.00 POUNDS MAXIMUM |
| COIL QUANTITY | 30 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 8.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-385-8006
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
