Product Details | EXTENSION HELICAL SPRING
5360-00-332-2696 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 684370, 6-84370, 5360-00-332-2696, 00-332-2696, 5360003322696, 003322696
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-332-2696 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-332-2696
Demand History | NSN 5360-00-332-2696
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-332-2696 | 2016-03-66 | 150 | DIBBS |
| 5360-00-332-2696 | 2015-01-08 | 51 | DIBBS |
| 5360-00-332-2696 | 2014-07-204 | 13 | DIBBS |
| 5360-00-332-2696 | 2014-02-43 | 61 | DIBBS |
| 5360-00-332-2696 | 2013-10-304 | 20 | DIBBS |
| 5360-00-332-2696 | 2012-04-103 | 16 | DIBBS |
| 5360-00-332-2696 | 2011-05-124 | 25 | DIBBS |
| 5360-00-332-2696 | 2011-01-04 | 10 | DIBBS |
Cross Reference | NSN 5360-00-332-2696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-84370 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-332-2696
Related Products | NSN 5360-00-332-2696
Technical Data | NSN 5360-00-332-2696
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-6101 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.392 INCHES NOMINAL |
| SPRING FREE LENGTH | 3.548 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| COIL TO HOOK INSIDE LENGTH | 0.801 INCHES NOMINAL FIRST END 0.432 INCHES NOMINAL SECOND END |
| HOOK RADIUS | 0.190 INCHES NOMINAL FIRST END 0.250 INCHES NOMINAL SECOND END |

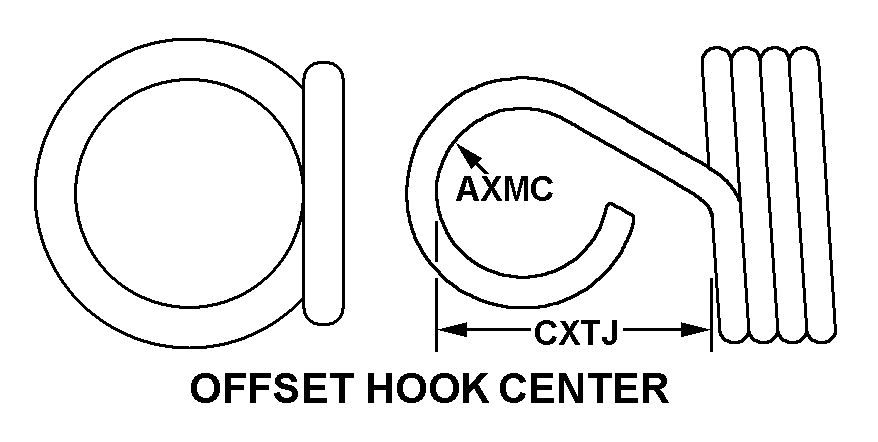

| END STYLE | F42 OFFSET HOOK CENTER FIRST END F45 SINGLE FULL LOOP SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 7.00 POUNDS NOMINAL |
| COIL QUANTITY | 40 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 1.600 POUNDS PER INCH NOMINAL |
| SPRING LENGTH UNDER LOAD | 5.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 6-84370 |
