Product Details | EXTENSION HELICAL SPRING
5360-00-239-8564 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7156461, 715646-1, 5360-00-239-8564, 00-239-8564, 5360002398564, 002398564
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1972 | 00-239-8564 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-239-8564
Cross Reference | NSN 5360-00-239-8564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 715646-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-239-8564
Technical Data | NSN 5360-00-239-8564
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 631 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5673 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.428 INCHES MINIMUM AND 0.468 INCHES MAXIMUM |
| SPRING FREE LENGTH | 3.242 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.530 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| OPENING WIDTH | 0.240 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.120 INCHES NOMINAL BOTH ENDS |

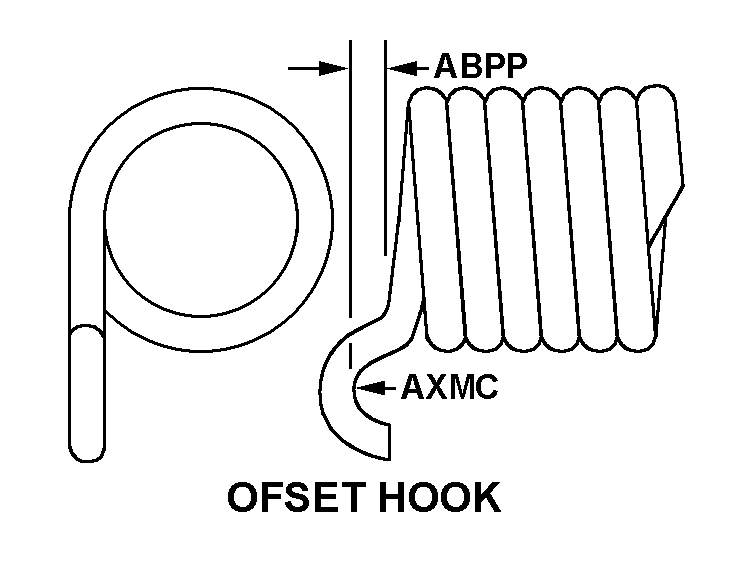

| END STYLE | F13 OFFSET HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 6.50 POUNDS NOMINAL |
| COIL QUANTITY | 50 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 6.600 INCHES NOMINAL |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 715646-1 |
