Product Details | EXTENSION HELICAL SPRING
5360-00-220-5739 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 1076750, 1076-750, 5360-00-220-5739, 00-220-5739, 5360002205739, 002205739
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-220-5739 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-220-5739
Cross Reference | NSN 5360-00-220-5739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1076-750 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-220-5739
Technical Data | NSN 5360-00-220-5739
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423,COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.110 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| SPRING FREE LENGTH | 0.900 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| COIL TO HOOK INSIDE LENGTH | 0.160 INCHES NOMINAL FIRST END 0.350 INCHES NOMINAL SECOND END |

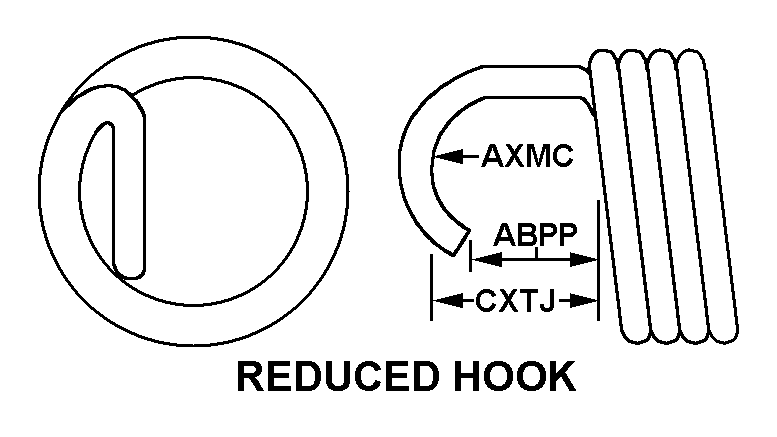

| END STYLE | F37 REDUCED HOOK FIRST END F45 SINGLE FULL LOOP SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 33 |
| DESIGN TYPE | CLOSED |
| (NON-CORE DATA) COLOR | BLACK |
| MANUFACTURERS CODE | 72314 |
| DESIGN CONTROL REFERENCE | 1076-750 |
