Product Details | EXTENSION HELICAL SPRING
5360-00-093-9598 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 56317, 5360-00-093-9598, 00-093-9598, 5360000939598, 000939598
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-093-9598 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-093-9598
Cross Reference | NSN 5360-00-093-9598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 56317 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-093-9598
Technical Data | NSN 5360-00-093-9598
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.265 INCHES NOMINAL |
| SPRING FREE LENGTH | 7.610 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| COIL TO HOOK INSIDE LENGTH | 0.781 INCHES NOMINAL FIRST END 0.781 INCHES NOMINAL SECOND END |
| HOOK RADIUS | 0.094 INCHES NOMINAL BOTH ENDS |

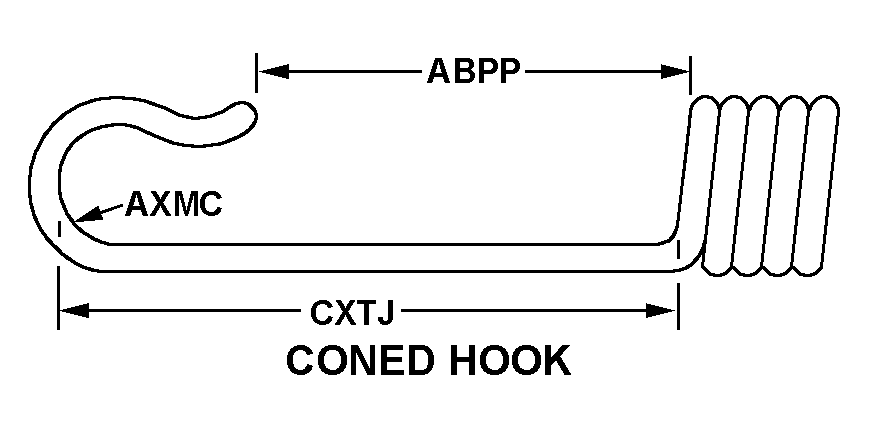

| END STYLE | F26 CONED HOOK FIRST END F47 MACHINE LOOP SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 13.50 POUNDS MINIMUM AND 18.50 POUNDS MAXIMUM |
| COIL QUANTITY | 14-3/4 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 3.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 55284 |
| DESIGN CONTROL REFERENCE | 56317 |
