NSN 5360-00-092-8188 7231647-01, 00-092-8188, 723164701
Product Details | EXTENSION HELICAL SPRING
5360-00-092-8188 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7231647-01, 5360-00-092-8188, 00-092-8188, 5360000928188, 723164701, 000928188
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 1972 | 00-092-8188 | 04227 ( SPRING, HELICAL, EXTENSION ) |

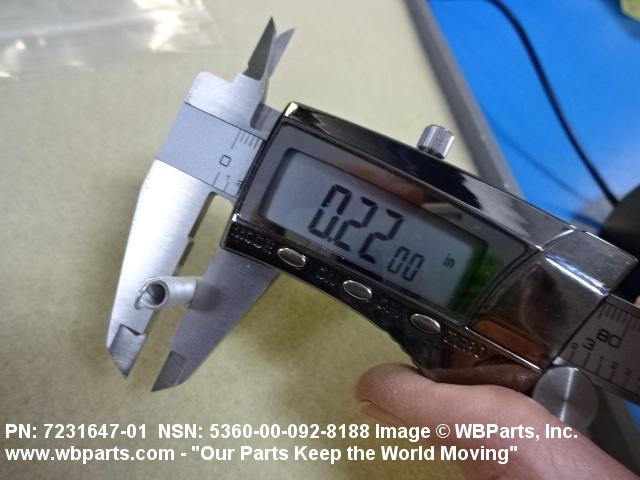

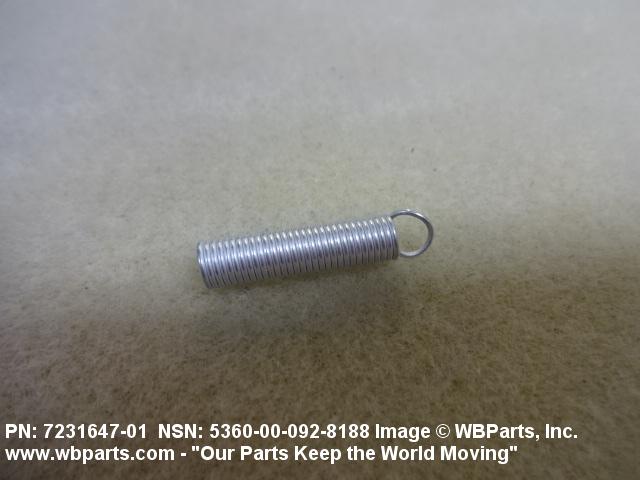

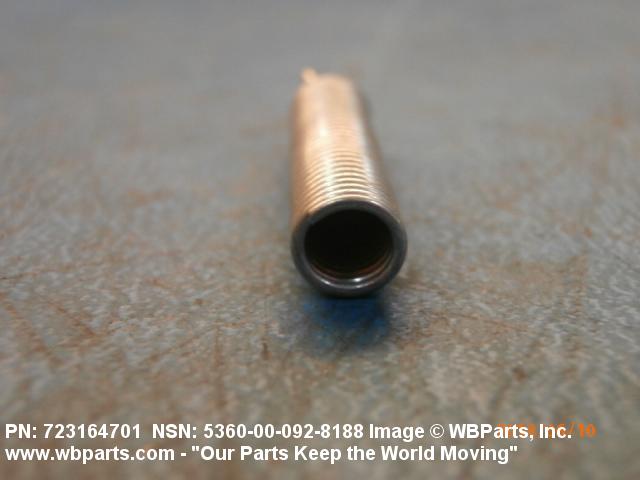

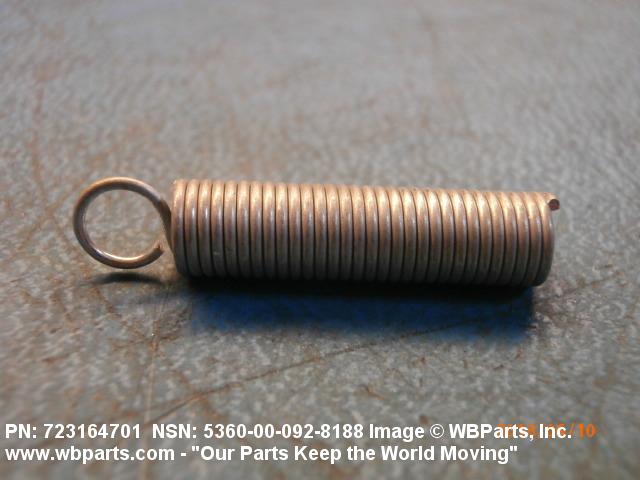

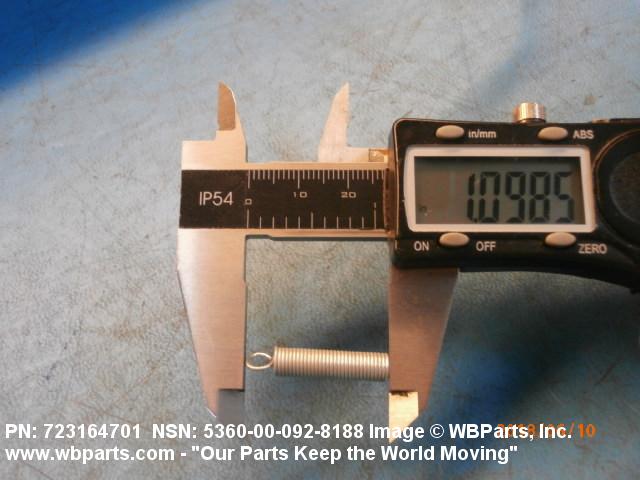

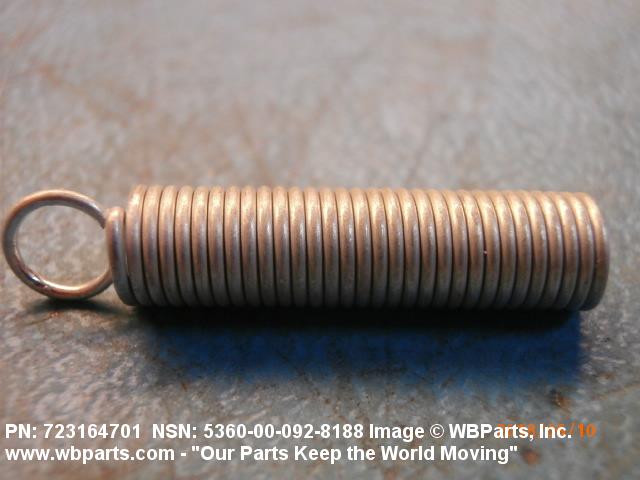

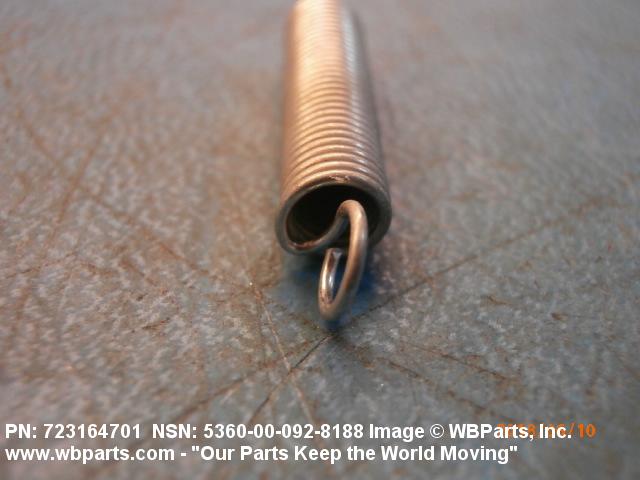

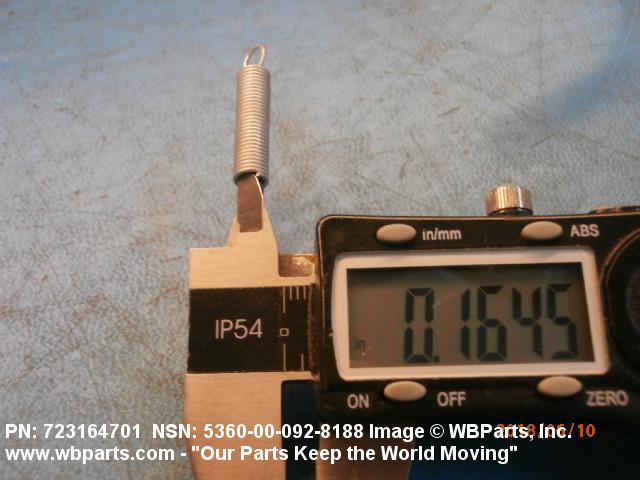

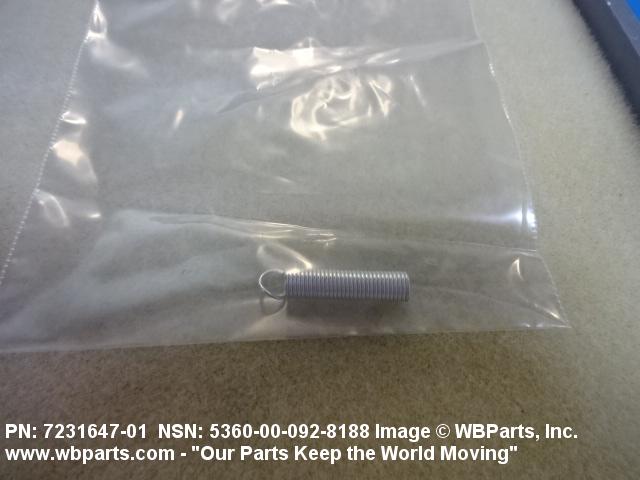

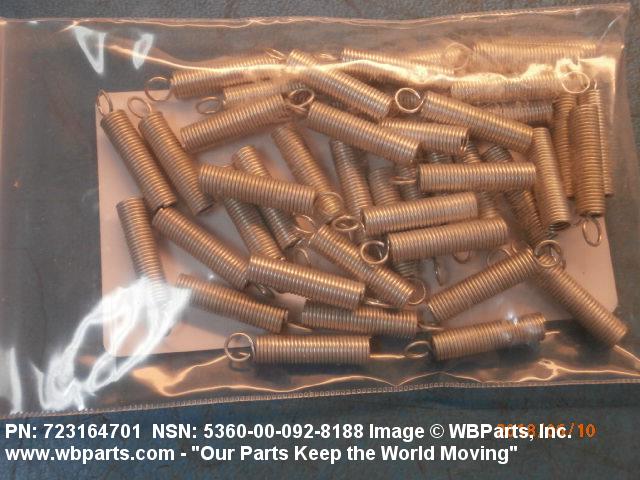

Drawings & Photos | NSN 5360-00-092-8188
Demand History | NSN 5360-00-092-8188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-092-8188 | 2024-03-87 | 69 | DIBBS |
| 5360-00-092-8188 | 2022-06-165 | 83 | DIBBS |
| 5360-00-092-8188 | 2022-06-153 | 83 | DIBBS |
| 5360-00-092-8188 | 2018-09-270 | 300 | Pakistan |
| 5360-00-092-8188 | 2018-03-74 | 35 | Pakistan |
| 5360-00-092-8188 | 2018-03-74 | 100 | Pakistan |
| 5360-00-092-8188 | 2017-10-303 | 159 | DIBBS |
| 5360-00-092-8188 | 2017-10-297 | 159 | DIBBS |
| 5360-00-092-8188 | 2017-10-296 | 159 | DIBBS |
| 5360-00-092-8188 | 2017-09-263 | 400 | Pakistan |
| 5360-00-092-8188 | 2015-06-153 | 100 | Australia |
| 723164701 | 2015-02-41 | 40 | PK |
| 5360-00-092-8188 | 2014-12-338 | 40 | Pakistan |
| 5360-00-092-8188 | 2014-12-338 | 40 | Pakistan |
| 723164701 | 2013-03-87 | 20 | Pakistan |
| 723164701 | 2012-01-17 | 100 | Pakistan |
Cross Reference | NSN 5360-00-092-8188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7231647-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-092-8188
Related Products | NSN 5360-00-092-8188
Technical Data | NSN 5360-00-092-8188
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |

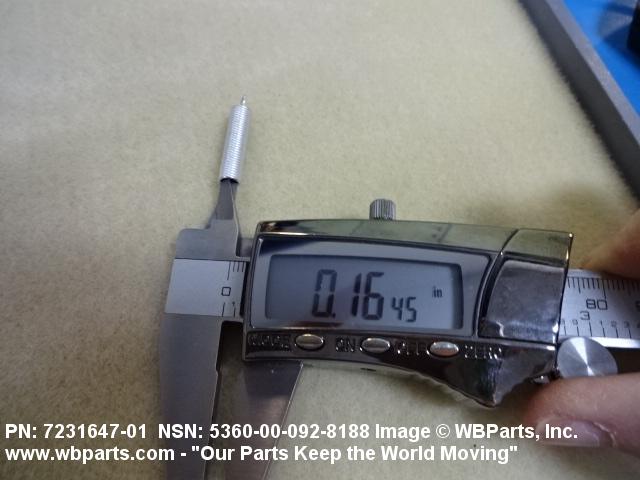

| INSIDE DIAMETER | 0.160 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |

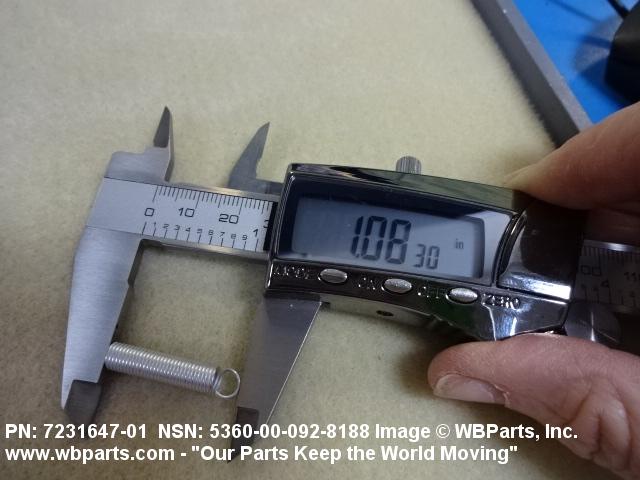

| SPRING FREE LENGTH | 1.079 INCHES MINIMUM AND 1.119 INCHES MAXIMUM |

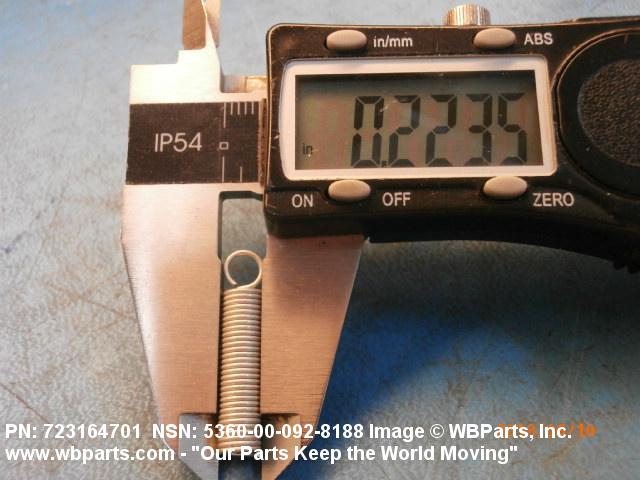

| SPRING FREE OUTSIDE DIAMETER | 0.214 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 2.0133 POUNDS MINIMUM AND 2.460 POUNDS MAXIMUM |
| COIL QUANTITY | 32 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 4.250 POUNDS PER INCH NOMINAL |
| SPRING LENGTH UNDER LOAD | 1.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 98752 |
| DESIGN CONTROL REFERENCE | 7231647-01 |
Restrictions/Controls & Freight Information | NSN 5360-00-092-8188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-092-8188
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
