NSN 5355-01-484-7078 BTH17, BTH-17, 9452705-01
Product Details | KNOB
5355-01-484-7078 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: BTH17, BTH-17, 9452705-01, 5355-01-484-7078, 01-484-7078, 5355014847078, 945270501, 014847078
Hardware and Abrasives | Knobs and Pointers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 04 MAY 2001 | 01-484-7078 | 03263 ( KNOB ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5355-01-484-7078
Technical Data | NSN 5355-01-484-7078
Characteristic | Specifications |
---|---|

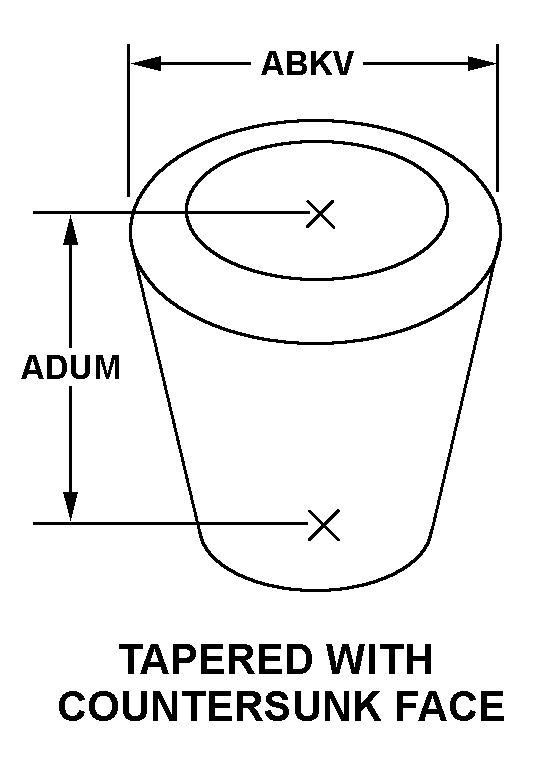

STYLE DESIGNATOR | A42 TAPERED WITH COUNTERSUNK FACE |
OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
END ITEM IDENTIFICATION | REENTRY SYSTEM TEST SET (RSTS) REPLACEMENT PROGRAM, NOMENCLATURE - HANDLE |
Restrictions/Controls & Freight Information | NSN 5355-01-484-7078
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 5355-01-484-7078
Category | Code | Description |
---|---|---|
Price Validation | E | The current standard price is an estimated price.
|
Materiel Management Aggregation Code | NB | SU:MINUTEMAN III ITEMS |
Budget Code | T | 2557X3020:Missile Replenishment Spares |
Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
