NSN 5355-01-452-8516 26800335, 9240-004-36, 01-452-8516
Product Details | KNOB
5355-01-452-8516 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 26800335, 9240-004-36, 5355-01-452-8516, 01-452-8516, 5355014528516, 014528516, 924000436
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 1998 | 01-452-8516 | 03263 ( KNOB ) |

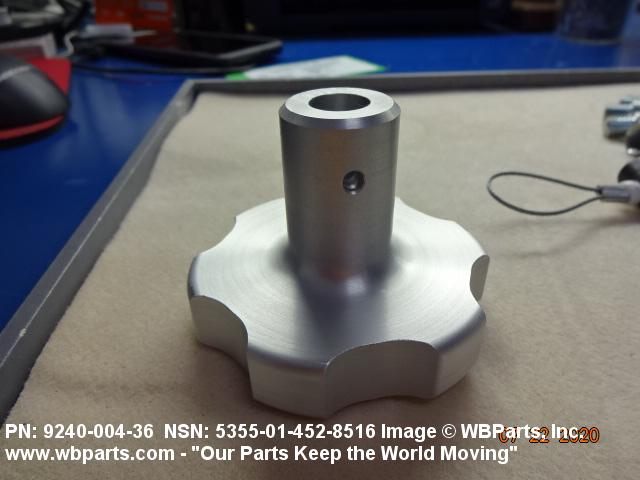

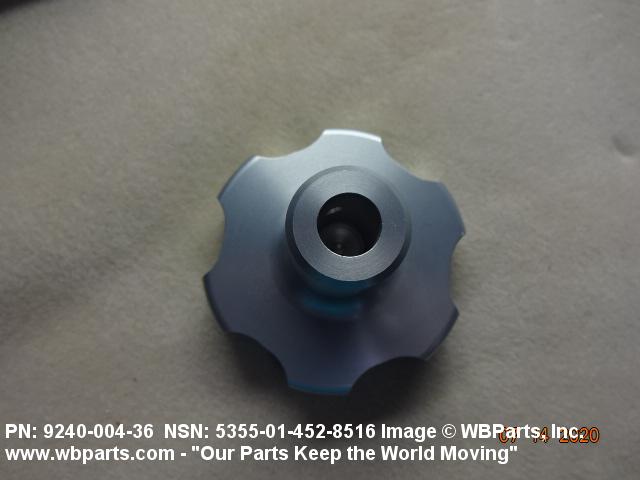

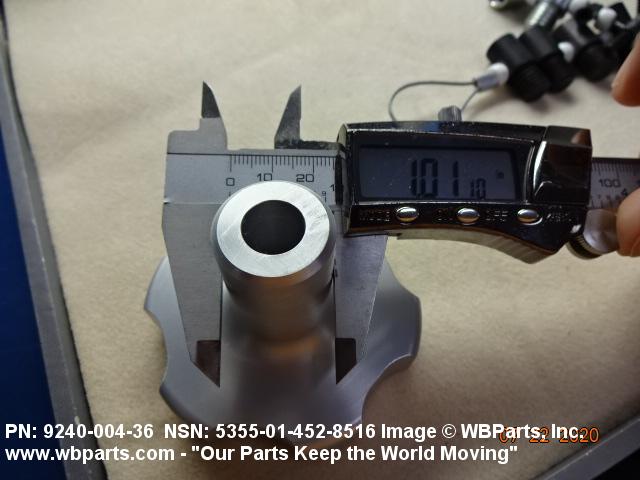

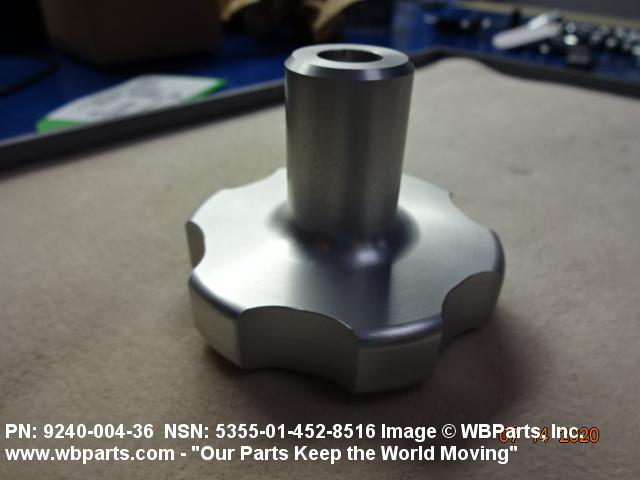

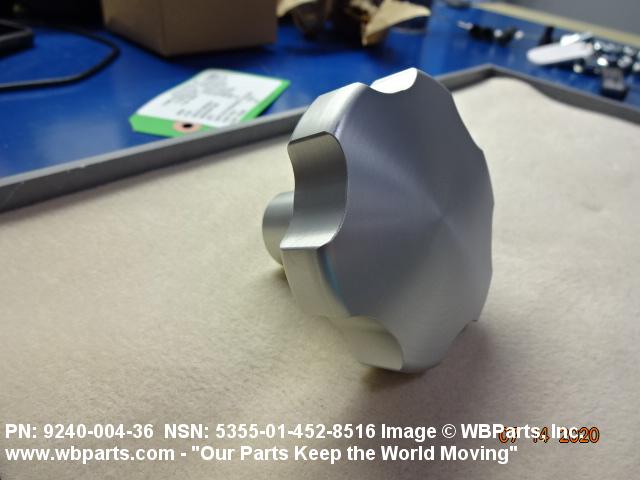

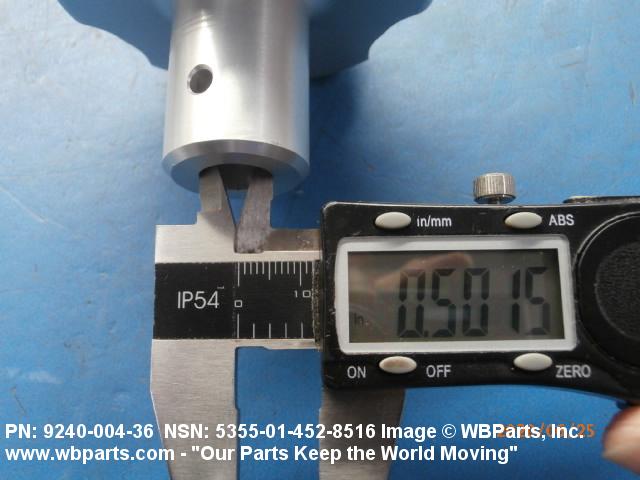

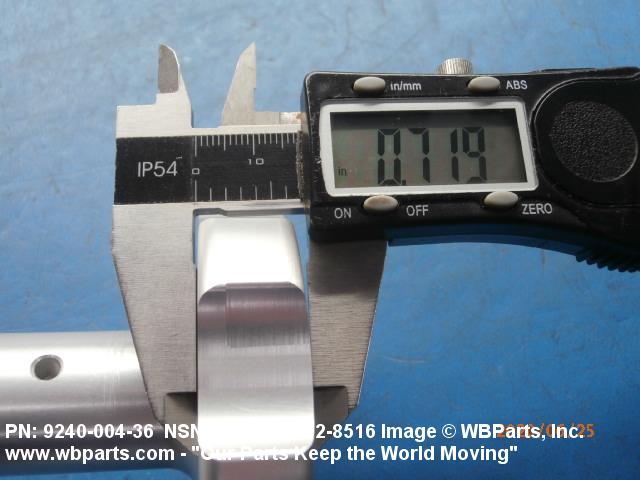

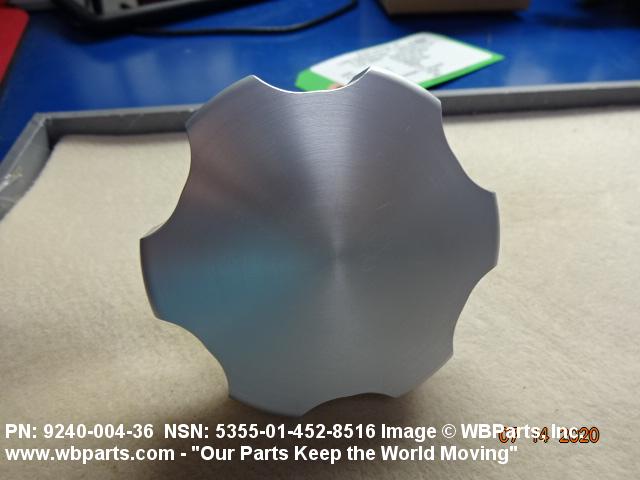

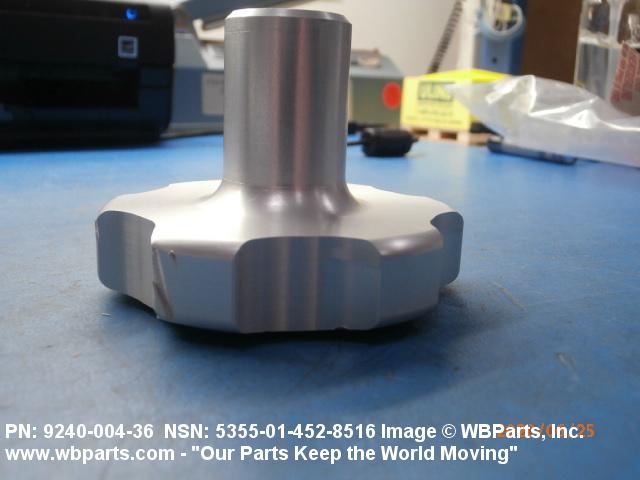

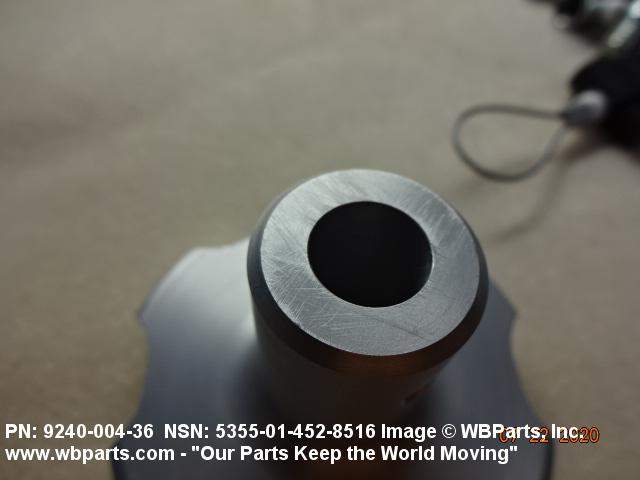

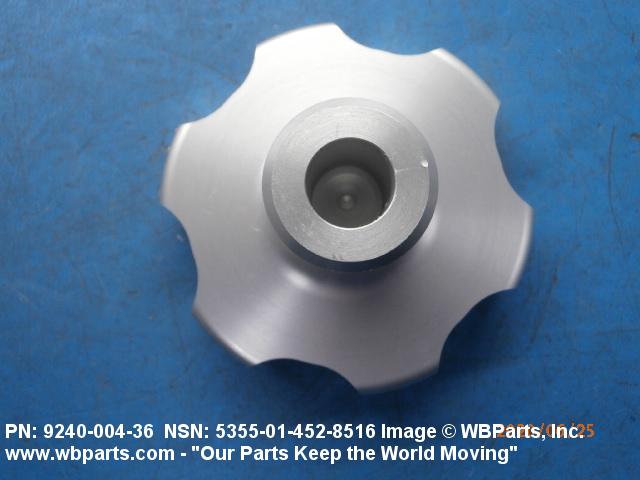

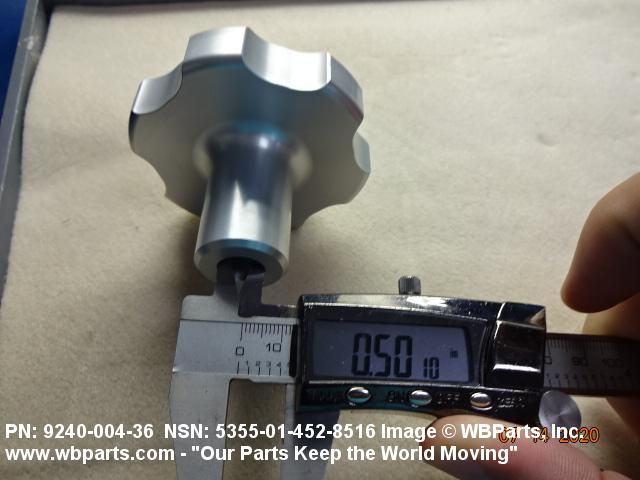

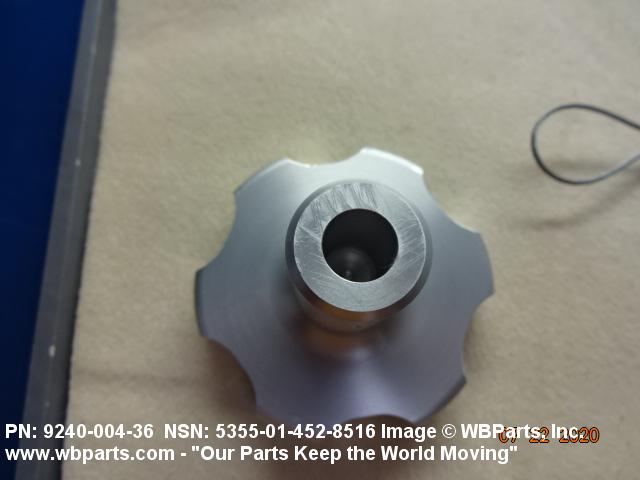

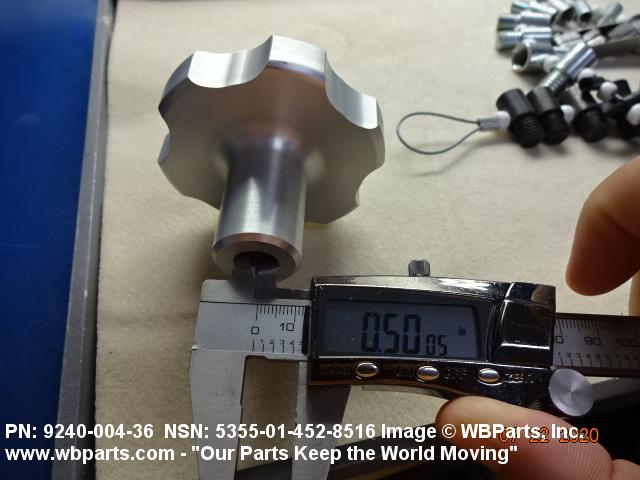

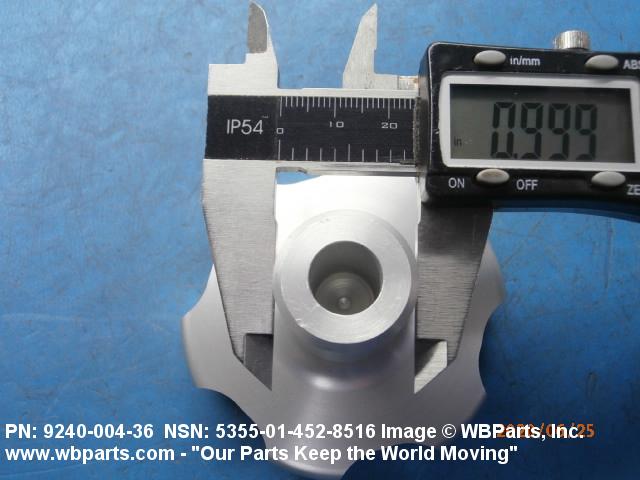

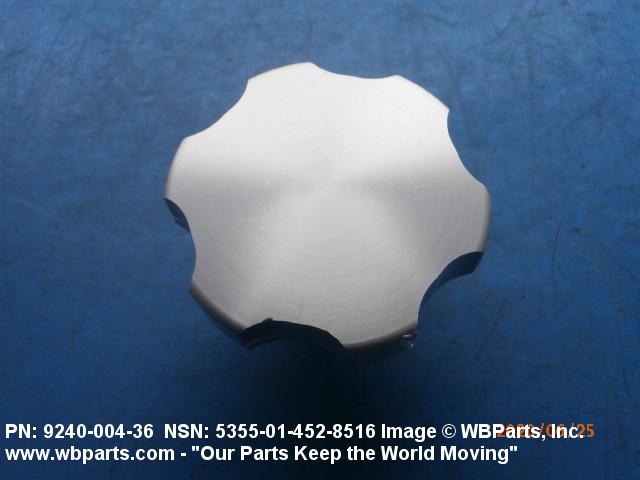

Drawings & Photos | NSN 5355-01-452-8516
Demand History | NSN 5355-01-452-8516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-01-452-8516 | 2020-07-196 | 1 | United States |
| 5355-01-452-8516 | 2020-06-169 | 1 | United States |
| 924000436 | 2011-09-263 | 6 | us |
Cross Reference | NSN 5355-01-452-8516
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-452-8516
Technical Data | NSN 5355-01-452-8516
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A12 OCTAGON |
| OVERALL THICKNESS | 0.625 INCHES NOMINAL |

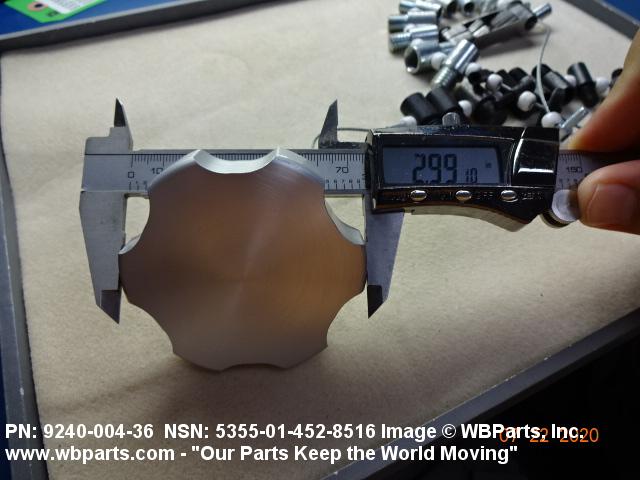

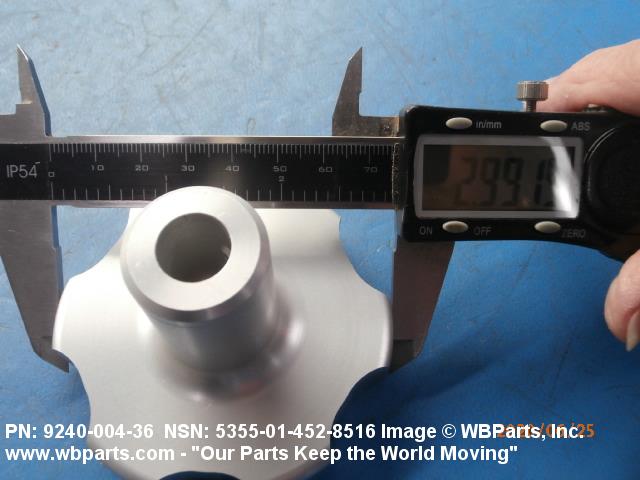

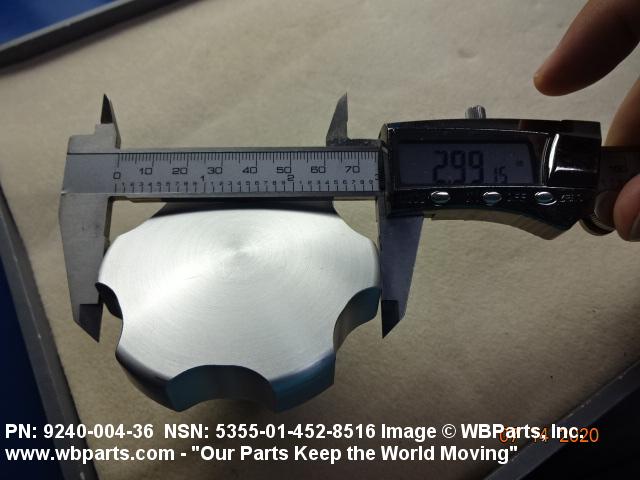

| WIDTH ACROSS FLATS | 3.000 INCHES NOMINAL |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E9 ROUND |

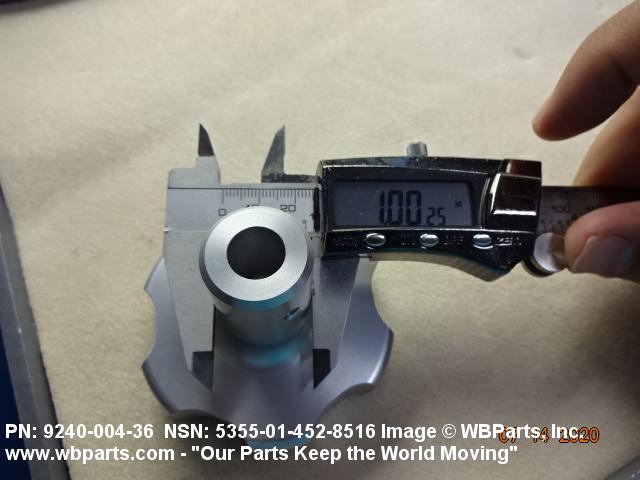

| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| END ITEM IDENTIFICATION | BIG EYE BINOCULAR,MODEL MK3,MODEL5,GENERAL |
Restrictions/Controls & Freight Information | NSN 5355-01-452-8516
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
