Product Details | KNOB
5355-01-169-3190 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 17324, 1732-4, 65A143D312, 65A143D31-2, 5355-01-169-3190, 01-169-3190, 5355011693190, 011693190
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JAN 1984 | 01-169-3190 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-169-3190
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-169-3190
Technical Data | NSN 5355-01-169-3190
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 ROUND |
| OUTSIDE DIAMETER | 0.620 INCHES NOMINAL |
| OVERALL THICKNESS | 0.687 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| INSIDE DIAMETER | 0.122 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.438 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.062 INCHES NOMINAL |
| OVERALL DEPTH | 0.499 INCHES NOMINAL |
| SKIRT DESIGN | NONDETACHABLE |

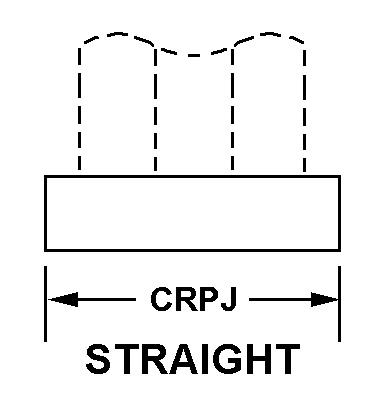

| SKIRT STYLE | F4 STRAIGHT |
| SKIRT OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| REFERENCE MARKING | ARROW |
| MATERIAL TRANSPARENCY | CLEAR |
| SPECIAL FEATURES | SKIRT PINNED TO KNOB AT LOCATION OFFSET FROM INDICATOR ARROW 10 DEG 30 MINIUTES CLOCKWISE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,1/2H FED SPEC SINGLE MATERIAL RESPONSE L-P-349,TY 1,CL MH FED SPEC SINGLE MATERIAL RESPONSE |
