NSN 5355-01-057-0464 MS915281N2B6, MS91528-1N2B6, KMS7N2L6
Product Details | KNOB
5355-01-057-0464 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS915281N2B6, MS91528-1N2B6, KMS7N2L6, 1N2B6, 33715312, 337153-12, 50712M6, 507-1-2M-6, 7012G6, 70-1-2G-6, 5355-01-057-0464, 01-057-0464, 5355010570464, 010570464
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAR 1978 | 01-057-0464 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-057-0464
Cross Reference | NSN 5355-01-057-0464
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1N2B6 | 23480 | ELECTRONIC HARDWARE CORP. |
| 337153-12 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 507-1-2M-6 | 52525 | LERCO DIV SPACE-LOK INC |
| 70-1-2G-6 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 70-1-2G-6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| KMS7N2L6 | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| KMS7N2L6 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| KMS7N2L6 | 92149 | STRUX CORP |
| MS91528-1N2B6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-057-0464
Technical Data | NSN 5355-01-057-0464
| Characteristic | Specifications |
|---|---|

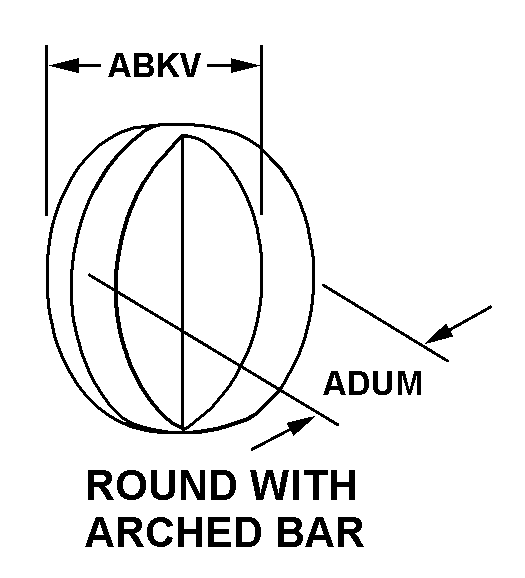

| STYLE DESIGNATOR | A29 ROUND WITH ARCHED BAR |
| OUTSIDE DIAMETER | 0.690 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.856 INCHES MINIMUM AND 0.956 INCHES MAXIMUM |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.187 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.485 INCHES MINIMUM |
| COUNTERBORE DEPTH | 0.026 INCHES MINIMUM |
| OVERALL DEPTH | 0.405 INCHES MINIMUM |
| MATERIAL | ALUMINUM ALLOY |
| COLOR | YELLOW |
| MATERIAL TRANSPARENCY | OPAQUE |
| SPECIAL FEATURES | TACTILE FORM-RANGE,0.610 IN. MIN DIA,0.650 IN. MAX DIA,0.320 IN. MIN THICKNESS,0.370 IN MAX THICKNESS |
| (NON-CORE DATA) SURFACE LUSTER | LUSTERLESS |
| (NON-CORE DATA) SURFACE TREATMENT | ANODIZE PASSIVATE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS91528-1N2B6 |
Restrictions/Controls & Freight Information | NSN 5355-01-057-0464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-057-0464
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
