NSN 5355-01-056-0066 MS2138421EM, MS21384-21EM, 61691013
Product Details | KNOB
5355-01-056-0066 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS2138421EM, MS21384-21EM, 61691013, 61691-013, 14092006, 14092-006, 5355-01-056-0066, 01-056-0066, 5355010560066, 010560066
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 1978 | 01-056-0066 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-056-0066
Demand History | NSN 5355-01-056-0066
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14092-006 | 2022-03-79 | 14 | DIBBS |
| 5355-01-056-0066 | 2013-03-64 | 44 | DIBBS |
| 5355-01-056-0066 | 2012-10-277 | 13 | DIBBS |
| 5355-01-056-0066 | 2012-08-229 | 9 | DIBBS |
| 5355-01-056-0066 | 2010-01-25 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-056-0066
Technical Data | NSN 5355-01-056-0066
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A5 ROUND WITH FIN LEVER |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| LENGTH | 1.130 INCHES NOMINAL |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
| ATTACHMENT METHOD | PIN |
| PIN ACCOMMODATION TYPE | STRAIGHT PIN TYPE W/O PIN |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E9 ROUND |
| INSIDE DIAMETER | 0.251 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| OVERALL DEPTH | 0.593 INCHES NOMINAL |

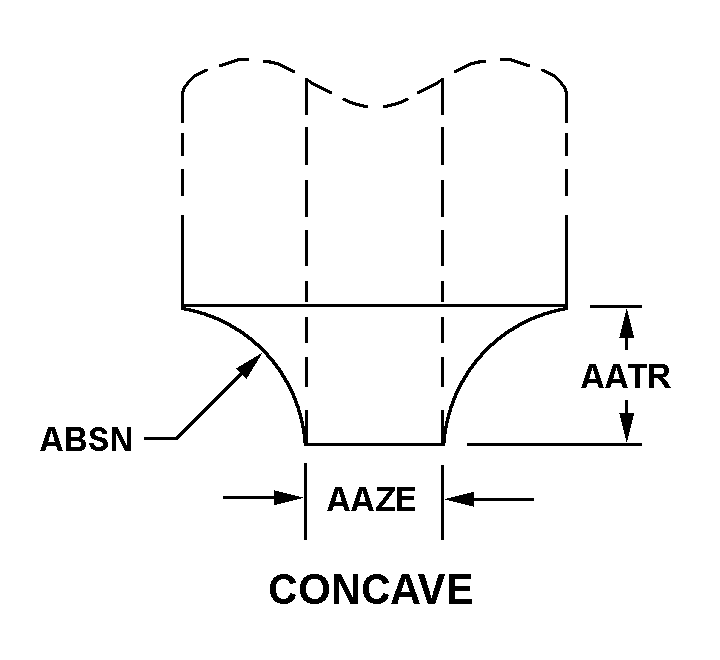

| SHANK STYLE | G3 CONCAVE |
| SHANK LENGTH | 0.120 INCHES NOMINAL |
| SHANK DIAMETER | 0.500 INCHES NOMINAL |
| SHANK RADIUS | 0.120 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL: ZINC ALLOY |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) STRAIGHT PIN HOLE DIAMETER | 0.081 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| (NON-CORE DATA) SURFACE TREATMENT | NICKEL |
| MANUFACTURERS CODE | 12763 |
| DESIGN CONTROL REFERENCE | 61691-013 |
Restrictions/Controls & Freight Information | NSN 5355-01-056-0066
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-056-0066
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
