NSN 5355-01-041-9184 MS2138402, MS21384-02, MS2138402ANN
Product Details | KNOB
5355-01-041-9184 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS2138402, MS21384-02, MS2138402ANN, MS21384-02ANN, MILK25049, MIL-K-25049, 5355-01-041-9184, 01-041-9184, 5355010419184, 010419184
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1977 | 01-041-9184 | 03263 ( KNOB ) |

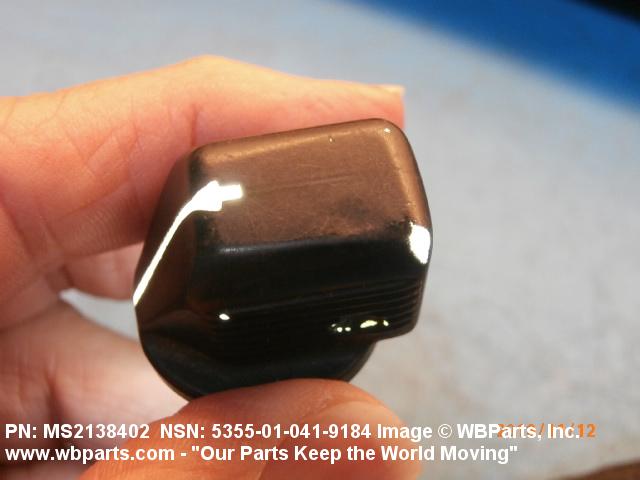

Drawings & Photos | NSN 5355-01-041-9184
Demand History | NSN 5355-01-041-9184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-01-041-9184 | 2020-06-09 | 5 | United States |
| MS2138402ANN | 2018-10-26 | 3 | United States |
| 5355-01-041-9184 | 2018-10-25 | 3 | United States |
| 5355-01-041-9184 | 2015-07-29 | 26 | DIBBS |
| MS2138402ANN | 2014-03-11 | 14 | United States |
| 5355-01-041-9184 | 2012-06-07 | 4 | DIBBS |
| 5355-01-041-9184 | 2012-05-16 | 2 | DIBBS |
| 5355-01-041-9184 | 2011-09-23 | 4 | DIBBS |
| 5355-01-041-9184 | 2011-06-17 | 4 | DIBBS |
| 5355-01-041-9184 | 2010-09-25 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-041-9184
Technical Data | NSN 5355-01-041-9184
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A8 ROUND WITH SINGLE POINTED BAR FACE |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL THICKNESS | 0.620 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.310 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| GRIPPING SURFACE CONDITION | SMOOTH |
| SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| INSIDE DIAMETER | 0.126 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| OVERALL DEPTH | 0.500 INCHES NOMINAL |
| INSIDE WIDTH | 0.106 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| SKIRT DESIGN | NONDETACHABLE |
| SKIRT STYLE | F1 FLARED |
| SKIRT OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| POINTER DESIGN | NONDETACHABLE |
| COLOR | GRAY, FED STD 595, 36231 |
| REFERENCE MARKING | INDEX LINE |
| SPECIFICATION/STANDARD DATA | 96906-MS21384 GOVERNMENT STANDARD |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290,CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) SURFACE LUSTER | LUSTERLESS |
| (NON-CORE DATA) POINTER OVERALL LENGTH | 1.000 INCHES NOMINAL |
| (NON-CORE DATA) DISTANCE TO POINTER END | 0.500 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-636 FED SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT | NICKEL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-K-25049 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21384-02ANN |
Restrictions/Controls & Freight Information | NSN 5355-01-041-9184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-041-9184
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
