NSN 5355-01-032-8320 MS25169P3B, CPA3852P3B, MILK25049

Product Details | KNOB

5355-01-032-8320 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers

Part Alternates: MS25169P3B, CPA3852P3B, MILK25049, MIL-K-25049, 53305506, 533-055-06, 5355-01-032-8320, 01-032-8320, 5355010328320, 010328320

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 DEC 1976	01-032-8320	03263 ( KNOB )

Drawings & Photos | NSN 5355-01-032-8320

Cross Reference | NSN 5355-01-032-8320

Part Number	Cage Code	Manufacturer
533-055-06	15084	DUPREE INC AEROSPACE KNOB CO DIV
533-055-06	81590	KORRY ELECTRONICS CO
CPA3852P3B	96655	PARAMOUNT PANELS, INC. DBA CALIFORNIA PLASTECK
MIL-K-25049	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25169P3B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5355-01-032-8320

Compare

Related Products | NSN 5355-01-032-8320

5355-01-032-9179, 5355-01-033-0060, 5355-01-033-0492, 5355-01-033-0924, 5355-01-033-2497

Technical Data | NSN 5355-01-032-8320

Characteristic	Specifications

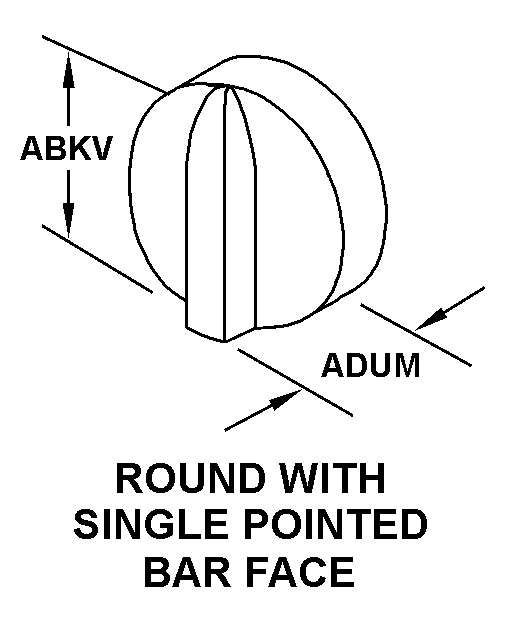

STYLE DESIGNATOR	A8 ROUND WITH SINGLE POINTED BAR FACE
OUTSIDE DIAMETER	0.875 INCHES NOMINAL
OVERALL THICKNESS	0.688 INCHES NOMINAL
ATTACHMENT METHOD	SETSCREWS
SETSCREW HOLE QUANTITY	1
SCREW DRIVE TYPE	HEXAGON SOCKET
DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE	0.250 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNC SCREW HOLE
NOMINAL THREAD SIZE	0.164 INCHES SCREW HOLE
THREAD QUANTITY PER INCH	32 SCREW HOLE
GRIPPING SURFACE CONDITION	GRIP AID

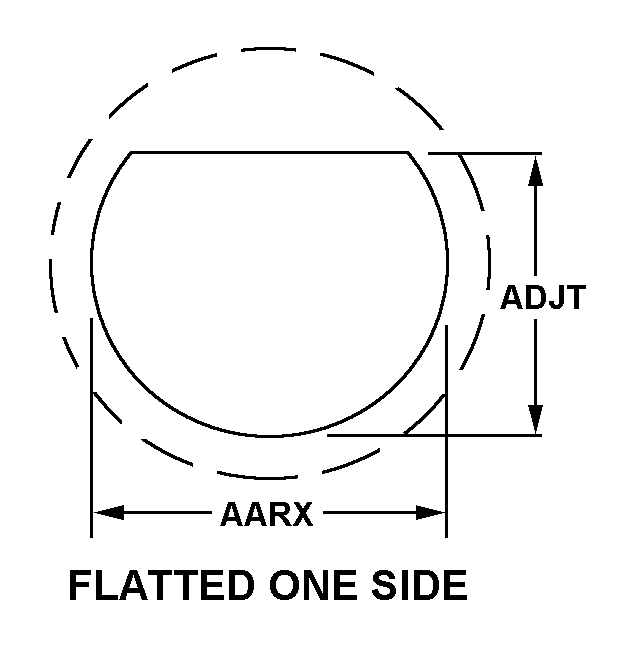

SHAFT ACCOMMODATION STYLE	E4 FLATTED ONE SIDE
