NSN 5355-00-930-6807 8624524, 00-930-6807, 009306807
Product Details | KNOB
5355-00-930-6807 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 8624524, 5355-00-930-6807, 00-930-6807, 5355009306807, 009306807
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUN 1966 | 00-930-6807 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-00-930-6807
Cross Reference | NSN 5355-00-930-6807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8624524 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-930-6807
Technical Data | NSN 5355-00-930-6807
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 ROUND |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL THICKNESS | 0.670 INCHES NOMINAL |
| ATTACHMENT METHOD | UNTHREADED COUNTERBORED HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |

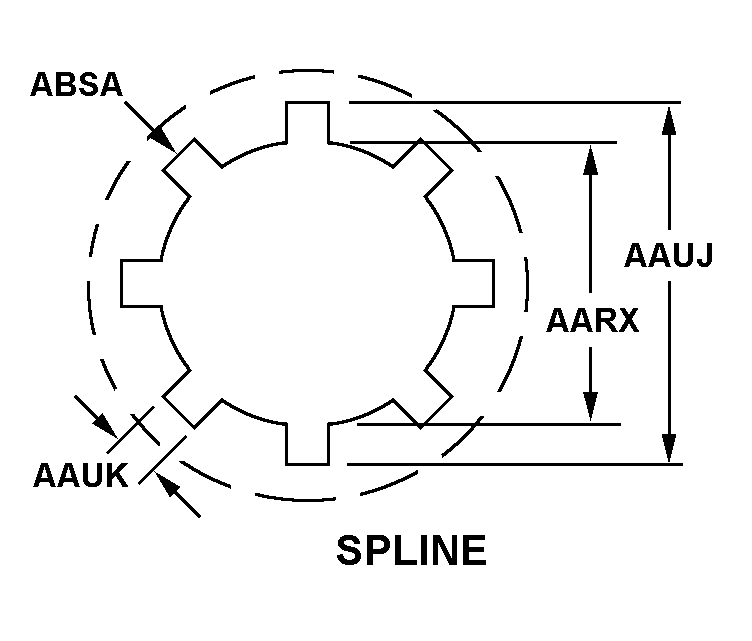

| SHAFT ACCOMMODATION STYLE | E1 SPLINE |
| INSIDE DIAMETER | 0.270 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 0.329 INCHES NOMINAL |
| SPLINE WIDTH | 0.036 INCHES NOMINAL |
| OVERALL DEPTH | 0.250 INCHES NOMINAL |
| SPLINE QUANTITY | 14 |
| SHANK STYLE | G1 STRAIGHT |
| SHANK LENGTH | 0.220 INCHES NOMINAL |
| SHANK DIAMETER | 0.936 INCHES NOMINAL |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 171,FINISH 5.4.1 MIL STD SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,COND A ASSN STD SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATE |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8624524 |
Restrictions/Controls & Freight Information | NSN 5355-00-930-6807
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BG | RDECOM-ECBC-RI Rock Island, IL 61299 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-930-6807
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
