NSN 5355-00-926-7515 2013624-00, 00-926-7515, 201362400
Product Details | KNOB
5355-00-926-7515 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 2013624-00, 5355-00-926-7515, 00-926-7515, 5355009267515, 201362400, 009267515
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1972 | 00-926-7515 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-00-926-7515
Cross Reference | NSN 5355-00-926-7515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2013624-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-926-7515
Technical Data | NSN 5355-00-926-7515
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A31 ROUND WITH FLUTED FOILS |
| OUTSIDE DIAMETER | 3.064 INCHES NOMINAL |
| OVERALL THICKNESS | 1.625 INCHES NOMINAL |
| FLUTED FOIL QUANTITY | 8 |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 1 |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SCREW HOLE |
| NOMINAL THREAD SIZE | 0.190 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E9 ROUND |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL DEPTH | 1.625 INCHES NOMINAL |

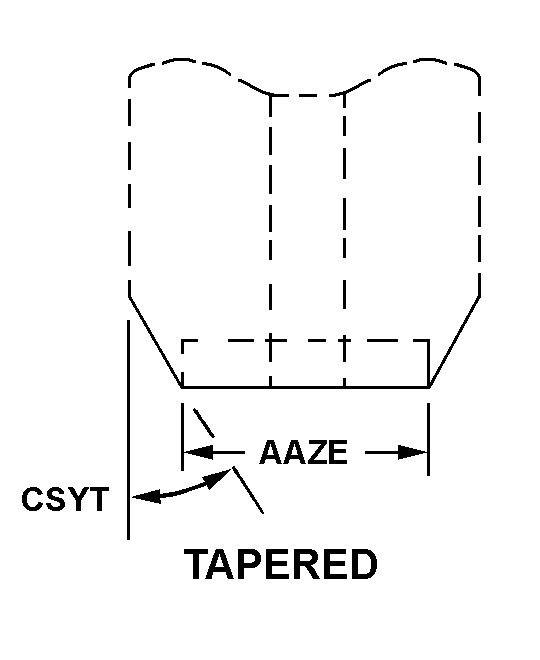

| SHANK STYLE | G2 TAPERED |
| SHANK DIAMETER | 1.625 INCHES NOMINAL |
| CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) SURFACE LUSTER | MATTE |
| MANUFACTURERS CODE | 90536 |
| DESIGN CONTROL REFERENCE | 2013624-00 |
Restrictions/Controls & Freight Information | NSN 5355-00-926-7515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
