NSN 5355-00-926-5227 1700346, 00-926-5227, 009265227
Product Details | KNOB
5355-00-926-5227 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 1700346, 5355-00-926-5227, 00-926-5227, 5355009265227, 009265227
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1966 | 00-926-5227 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-00-926-5227
Cross Reference | NSN 5355-00-926-5227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1700346 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-926-5227
Technical Data | NSN 5355-00-926-5227
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 ROUND |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL THICKNESS | 1.000 INCHES NOMINAL |
| ATTACHMENT METHOD | HOLE |
| GRIPPING SURFACE CONDITION | SMOOTH |

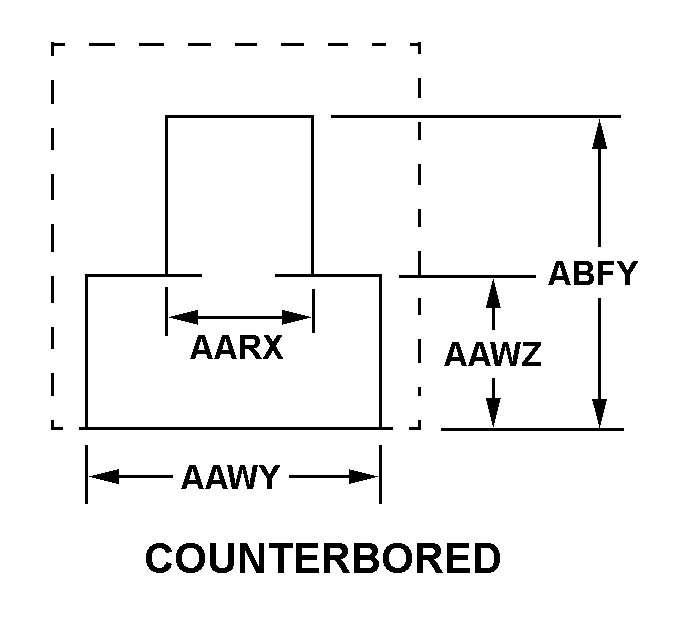

| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| INSIDE DIAMETER | 0.405 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.000 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.625 INCHES NOMINAL |
| OVERALL DEPTH | 1.000 INCHES NOMINAL |
| SKIRT DESIGN | NONDETACHABLE |

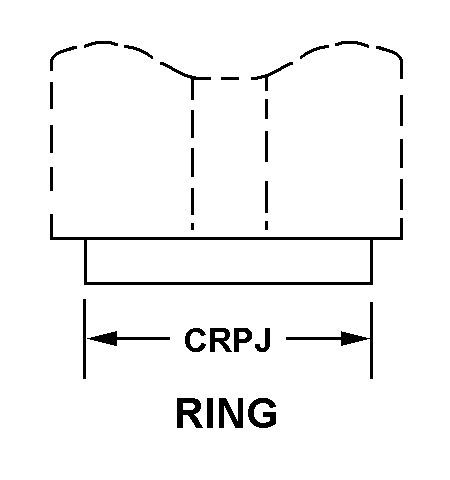

| SKIRT STYLE | F3 RING |
| SKIRT OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| COLOR | NATURAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MAGNETIC PERMEABILITY SHALL BE LESS THAN 1.2 BEFORE FABRICATION AND NOT GREATER THAN 2.0 AFTER FABRICATION AS MEASURED IN A 200 ORESTED FIELD |
| (NON-CORE DATA) SURFACE LUSTER | LUSTERLESS |
| (NON-CORE DATA) SURFACE TREATMENT | ANODIZE |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1700346 |
Restrictions/Controls & Freight Information | NSN 5355-00-926-5227
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
