NSN 5355-00-559-8943 MS915282K28, MS91528-2K28, MS915282K2B
Product Details | KNOB
5355-00-559-8943 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS915282K28, MS91528-2K28, MS915282K2B, MS91528-2K2B, MS915282K2D, MS91528-2K2D, MS915282K2K, MS91528-2K2K, NASM3926, SMC2089114, SMC208911-4, HS7495545, HS7495-545, HS915282K2B, HS91528-2K2B, KMS9K2LK, KMS9K2LNR, G2431092, G243109-2, YS2311058G6, YS231-1058G6, ZD2311058G6REV6, ZD231-1058G6REV6, 05G000220015, 05G00022-0015, 1040183, 10401832, 3666-157-55, 50952M, 509-5-2M, 115936-027, 128128, 128-128, 12Z7600149, 12Z7600-149, 1658441PC1, 1742000015, 17-420-00-015, 204311, 20431-1, 2055473, 2311058G6, 231-1058G6, 2K2B, 2K2D, 2K2K, 3094G6, 70018S, 700-18S, 7901762008, 7901762-008, 855112, 9052G, 90-5-2G, 9052GBLACK, 90-5-2GBLACK, 9052GK, 90-5-2GK, 92B4MA, 95000615, 950006-15, 9K2LBLACK, 9L2PS, 5355-00-559-8943, 00-559-8943, 5355005598943, 115936027, 005598943, 366615755
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-559-8943 | 03263 ( KNOB ) |

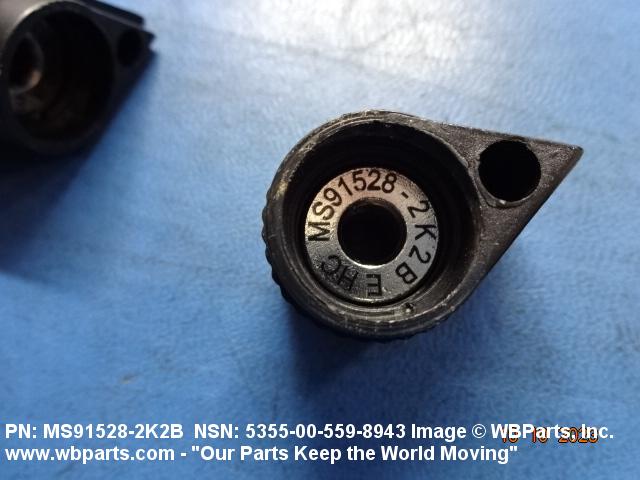

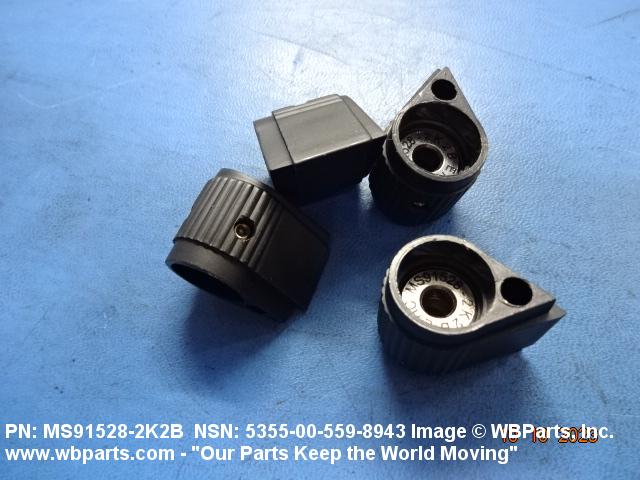

Drawings & Photos | NSN 5355-00-559-8943
Demand History | NSN 5355-00-559-8943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-00-559-8943 | 2024-05-123 | 335 | DIBBS |
| 5355-00-559-8943 | 2023-09-271 | 4 | United States |
| 5355-00-559-8943 | 2022-12-361 | 218 | DIBBS |
| 5355-00-559-8943 | 2022-12-349 | 218 | DIBBS |
| 5355-00-559-8943 | 2022-06-180 | 339 | DIBBS |
| 5355-00-559-8943 | 2022-06-165 | 339 | DIBBS |
| 5355-00-559-8943 | 2021-06-179 | 301 | DIBBS |
| 5355-00-559-8943 | 2020-07-194 | 600 | DIBBS |
| 5355-00-559-8943 | 2019-05-134 | 2 | US |
| 5355-00-559-8943 | 2019-04-105 | 2 | US |
| 5355-00-559-8943 | 2018-03-77 | 10 | US |
| MS91528-2K2B | 2017-01-11 | 5 | United Arab Emirates |
| 5355-00-559-8943 | 2014-01-22 | 1531 | DIBBS |
| 5355-00-559-8943 | 2012-06-181 | 1181 | DIBBS |
| MS915282K28 | 2011-08-216 | 1 | US |
| MS915282K28 | 2011-06-161 | 1 | United States |
| 5355-00-559-8943 | 2010-07-205 | 184 | DIBBS |
| 5355-00-559-8943 | 2009-11-327 | 3 | South Korea |
Cross Reference | NSN 5355-00-559-8943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05G00022-0015 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1040183 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10401832 | 19203 | PICATINNY ARSENAL |
| 115936-027 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 128-128 | 03927 | SAFETRAN SYSTEMS CO SUB OF CCI CORP |
| 12Z7600-149 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 1658441PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 17-420-00-015 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 20431-1 | 91820 | JETRONIC INDUSTRIES INC |
| 2055473 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 231-1058G6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 231-1058G6 | 94144 | RAYTHEON COMPANY DBA RAYTHEON |
| 2K2B | 23480 | ELECTRONIC HARDWARE CORP. |
| 2K2D | 23480 | ELECTRONIC HARDWARE CORP. |
| 2K2K | 23480 | ELECTRONIC HARDWARE CORP. |
| 3094G6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3094G6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| 3666-157-55 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 509-5-2M | 52525 | LERCO DIV SPACE-LOK INC |
| 509-5-2M | 98278 | TYCO ELECTRONICS CORPORATION |
| 700-18S | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7901762-008 | 24617 | GENERAL MOTORS CORP |
| 7901762-008 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| 855112 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS |
| 855112 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 90-5-2G | 05452 | RAYTHEON CO RAYTHEON SYSTEMS CO |
| 90-5-2G | 38200 | DRS TECHNOLOGIES CANADA LTD |
| 90-5-2G | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 90-5-2GBLACK | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 90-5-2GK | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 90-5-2GK | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 92B4MA | 23480 | ELECTRONIC HARDWARE CORP. |
| 92B4MA | 99813 | JAN HARDWARE MFG CO INC |
| 950006-15 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 9K2LBLACK | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| 9K2LBLACK | 92149 | STRUX CORP |
| 9L2PS | 23480 | ELECTRONIC HARDWARE CORP. |
| G243109-2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G243109-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G243109-2 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| G243109-2 | 70408 | AT AND T CORP |
| HS7495-545 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| HS91528-2K2B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| KMS9K2LK | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| KMS9K2LK | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| KMS9K2LK | 92149 | STRUX CORP |
| KMS9K2LNR | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| KMS9K2LNR | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| KMS9K2LNR | 92149 | STRUX CORP |
| MS91528-2K28 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS91528-2K2B | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS91528-2K2B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS91528-2K2D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS91528-2K2K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS915282K2B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NASM3926 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SMC208911-4 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| YS231-1058G6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| ZD231-1058G6REV6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5355-00-559-8943
Related Products | NSN 5355-00-559-8943
Technical Data | NSN 5355-00-559-8943
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A22 POINTER |

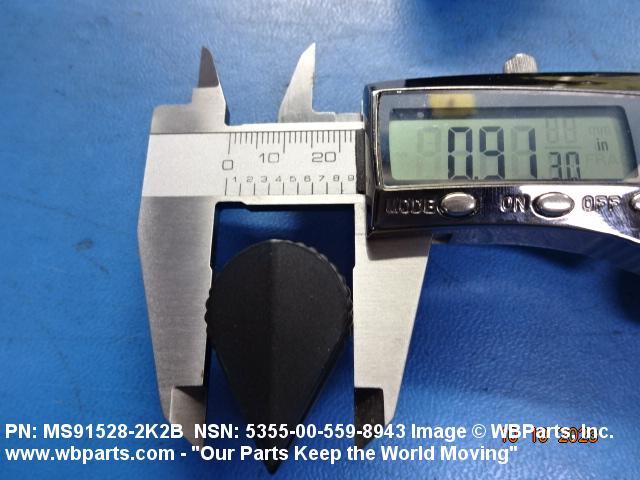

| WIDTH | 0.890 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |

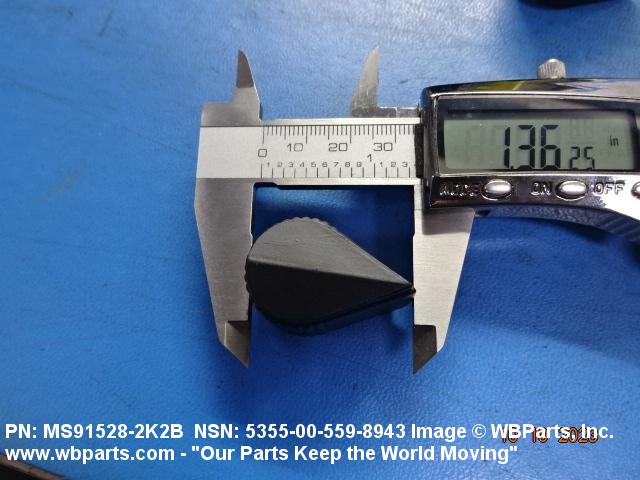

| LENGTH | 1.325 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.980 INCHES MINIMUM AND 1.040 INCHES MAXIMUM |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.484 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |

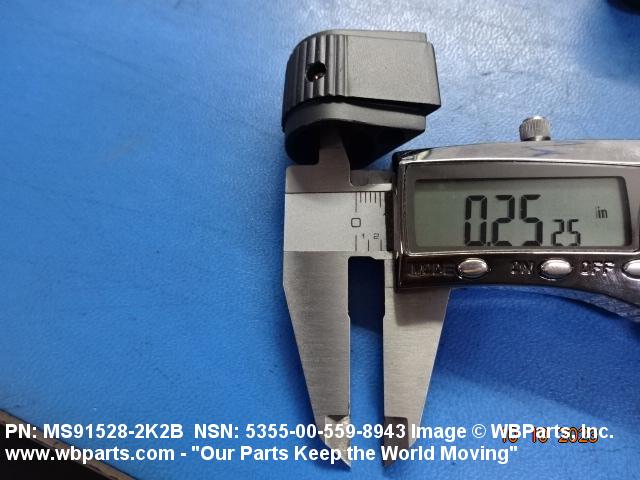

| INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.640 INCHES MINIMUM |
| COUNTERBORE DEPTH | 0.320 INCHES MINIMUM |

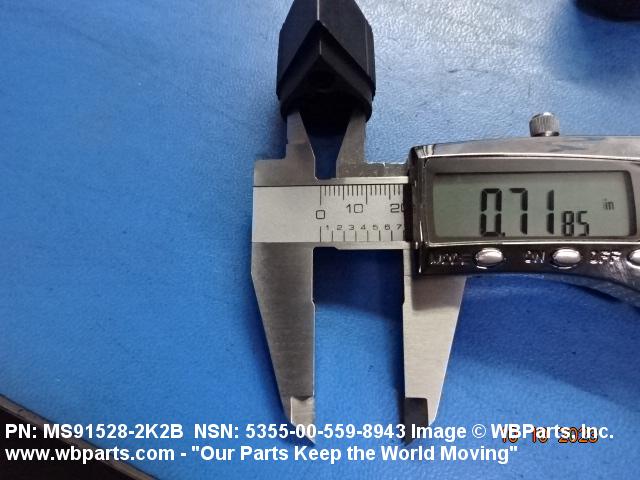

| OVERALL DEPTH | 0.730 INCHES MINIMUM |
| SKIRT DESIGN | NONDETACHABLE |
| SKIRT STYLE | F2 STEPPED |
| SKIRT OUTSIDE DIAMETER | 1.345 INCHES MAXIMUM |
| POINTER DESIGN | NONDETACHABLE |
| MATERIAL TRANSPARENCY | OPAQUE |
| END ITEM IDENTIFICATION | FIRE PUMPS,FIRE CONTROL SYSTEM, MK 92 (FCS),SYSTEMS, 02N2,COUNTERMEASURE SET, AN/SLQ-32,SUPPORT EQUIPMENT, B-52 AIRCRAFT, MISSILE, AIR-TO-AIR, SPARROW (AIM-7), SONAR ACOUSTIC MISCELLANEOUS,SYSTEMS, JP-5AVIATION FUELS,TORPEDO SYSTEMS, MK 46 |
| (NON-CORE DATA) SURFACE LUSTER | LUSTERLESS |
| (NON-CORE DATA) POINTER OVERALL LENGTH | 1.325 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| (NON-CORE DATA) DISTANCE TO POINTER END | 0.880 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
| (NON-CORE DATA) SURFACE TREATMENT | ANODIZE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS91528-2K2B |
Restrictions/Controls & Freight Information | NSN 5355-00-559-8943
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-559-8943
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
