NSN 5355-00-552-1810 MS915281K1B, MS91528-1K1B, NAS3926

Product Details | KNOB

5355-00-552-1810 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers

Part Alternates: MS915281K1B, MS91528-1K1B, NAS3926, NAS91528, KMS7K1DL, KMS7K1LNR, MILK3926, MIL-K-3926, 115936-017, 1K1B, 1KID, 2810150000, 281-0150-000, 50751M, 507-5-1M, 115936-003, 72B2MA, 7K1L, 7L1PS, 5355-00-552-1810, 00-552-1810, 5355005521810, 115936003, 115936017, 005521810

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-552-1810	03263 ( KNOB )

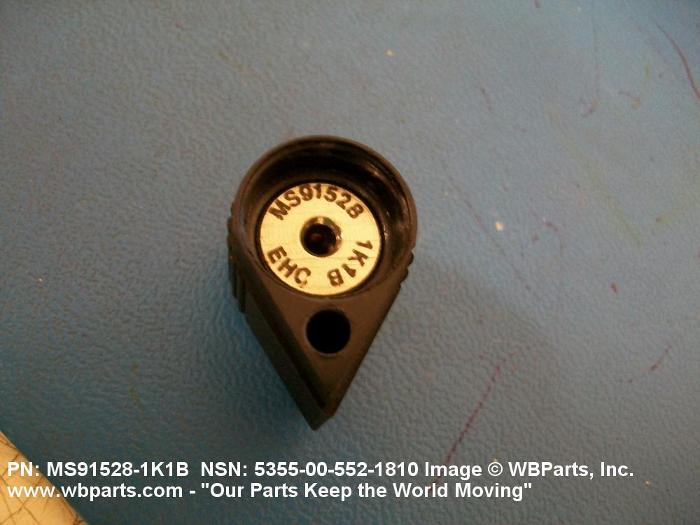

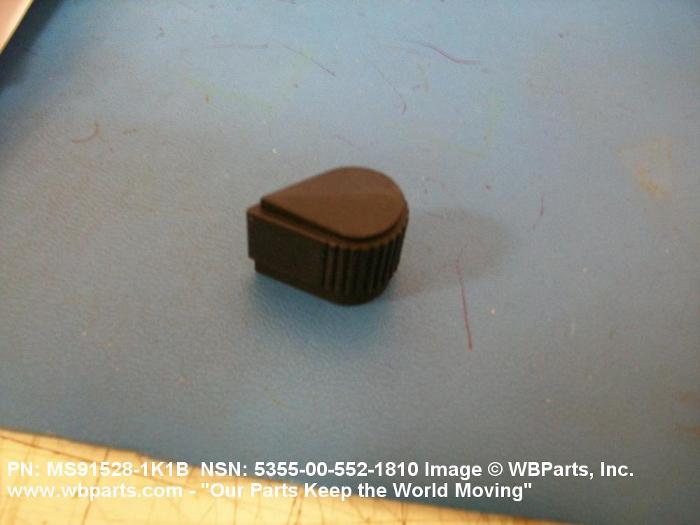

Drawings & Photos | NSN 5355-00-552-1810

Part Number	Request Date	QTY	Origin
5355-00-552-1810	2019-06-172	1	DIBBS-RFPs
5355-00-552-1810	2015-09-246	451	DIBBS
5355-00-552-1810	2011-08-236	2	Thailand

Cross Reference | NSN 5355-00-552-1810

Part Number	Cage Code	Manufacturer
115936-003	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
115936-017	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
1K1B	23480	ELECTRONIC HARDWARE CORP.
1KID	23480	ELECTRONIC HARDWARE CORP.
281-0150-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
507-5-1M	52525	LERCO DIV SPACE-LOK INC
72B2MA	23480	ELECTRONIC HARDWARE CORP.
72B2MA	99813	JAN HARDWARE MFG CO INC
7K1L	07886	DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV
7L1PS	23480	ELECTRONIC HARDWARE CORP.
KMS7K1DL	07886	DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV
KMS7K1DL	42498	DAR ELECTRONICS INC DBA NATIONAL RADIO CO
KMS7K1DL	92149	STRUX CORP
KMS7K1LNR	07886	DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV
KMS7K1LNR	42498	DAR ELECTRONICS INC DBA NATIONAL RADIO CO
KMS7K1LNR	92149	STRUX CORP
MIL-K-3926	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS91528-1K1B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS91528-1K1B	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS3926	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS91528	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5355-00-552-1810

Compare

Related Products | NSN 5355-00-552-1810

5355-00-552-8175, 5355-00-552-8197, 5355-00-552-8268, 5355-00-552-8270, 5355-00-552-8273

Technical Data | NSN 5355-00-552-1810

Characteristic	Specifications
STYLE DESIGNATOR	A22 POINTER
WIDTH	0.690 INCHES MINIMUM AND 0.730 INCHES MAXIMUM
LENGTH	1.020 INCHES MINIMUM AND 1.070 INCHES MAXIMUM
OVERALL THICKNESS	0.752 INCHES MINIMUM AND 0.812 INCHES MAXIMUM
ATTACHMENT METHOD	SETSCREWS
SETSCREW HOLE QUANTITY	2
SCREW DRIVE TYPE	HEXAGON SOCKET
DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE	0.369 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNC SCREW HOLE
NOMINAL THREAD SIZE	0.112 INCHES SCREW HOLE
THREAD QUANTITY PER INCH	40 SCREW HOLE
GRIPPING SURFACE CONDITION	GRIP AID
SHAFT ACCOMMODATION STYLE	E18 COUNTERBORED
INSIDE DIAMETER	0.127 INCHES MINIMUM AND 0.129 INCHES MAXIMUM
COUNTERBORE DIAMETER	0.485 INCHES MINIMUM
COUNTERBORE DEPTH	0.188 INCHES MINIMUM
OVERALL DEPTH	0.568 INCHES MINIMUM
SKIRT DESIGN	NONDETACHABLE
SKIRT STYLE	F2 STEPPED
SKIRT OUTSIDE DIAMETER	1.000 INCHES MAXIMUM
POINTER DESIGN	NONDETACHABLE
COLOR	BLACK, LUSTERLESS
MATERIAL TRANSPARENCY	OPAQUE
END ITEM IDENTIFICATION	COMMUNICATIONS SYSTEMS, AN/WRR-7,DEEP SUBMERGENCESYSTEMS PROGRAMS (DSSP), COMPUTER, AN/UYK-44(V),MISSILE, AIR LAUNCH CRUISE (ALCM) AGM-86B,GROUND MOBILE FORCE SATELLITE COMM TERM (AN/TSC-85A),AIRCRAFT, ( AC-130H, MC-130H,
(NON-CORE DATA) SURFACE LUSTER	LUSTERLESS
(NON-CORE DATA) POINTER OVERALL LENGTH	1.020 INCHES MINIMUM AND 1.070 INCHES MAXIMUM
(NON-CORE DATA) DISTANCE TO POINTER END	0.675 INCHES MINIMUM AND 0.705 INCHES MAXIMUM
(NON-CORE DATA) SURFACE TREATMENT	ANODIZE PASSIVATE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-K-3926
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS91528-1K1B

Restrictions/Controls & Freight Information | NSN 5355-00-552-1810

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	108590	KNOBS/PULLS DOOR/DRAWER NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5355-00-552-1810

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
