NSN 5355-00-539-7607 1079891, 107989-1, 00-539-7607
Product Details | SCALE DIAL
5355-00-539-7607 A dial designed to be read in conjunction with a vernier indicator, pointer(s) or like instruments, which device is not an integral part of the item. The item does not have facilities for connection to a tuning or selection mechanism to position the mechanism. However, it may be designed to be mounted on a knob used to position the mechanism. Excludes SCALEPLATE, ELECTRICAL METER. See also DIAL, CONTROL.
Part Alternates: 1079891, 107989-1, 5355-00-539-7607, 00-539-7607, 5355005397607, 005397607
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-539-7607 | 03264 ( DIAL, SCALE ) |
Drawings & Photos | NSN 5355-00-539-7607
Cross Reference | NSN 5355-00-539-7607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107989-1 | 98571 | TELEDYNE TECHNOLOGIES INC DBA TELEDYNE CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-539-7607
Technical Data | NSN 5355-00-539-7607
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY DIAL |
| SURFACE TREATMENT | ANODIZE DIAL |

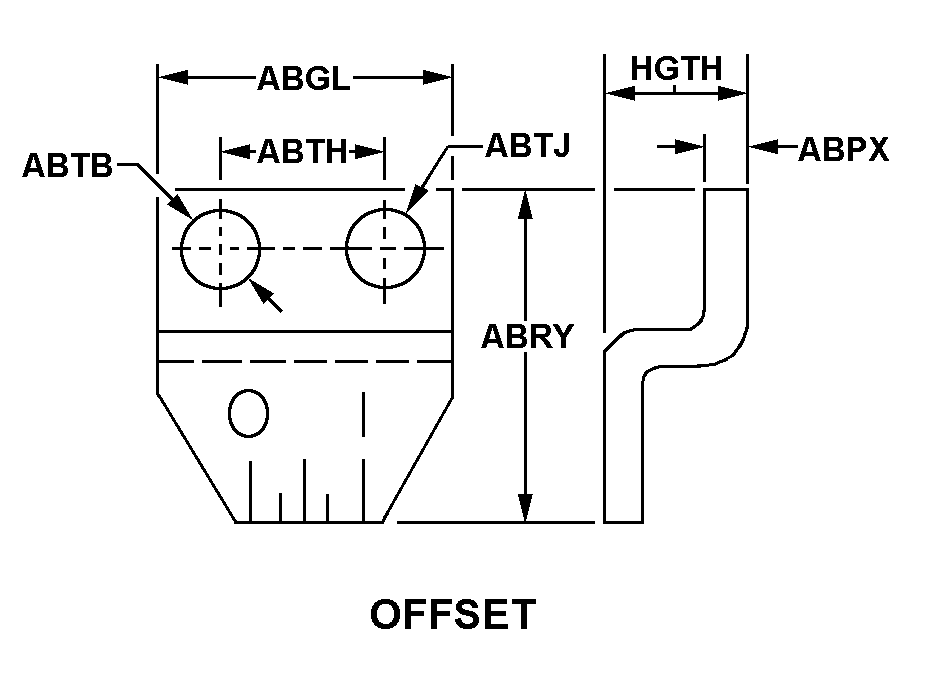

| STYLE DESIGNATOR | A95 OFFSET |
